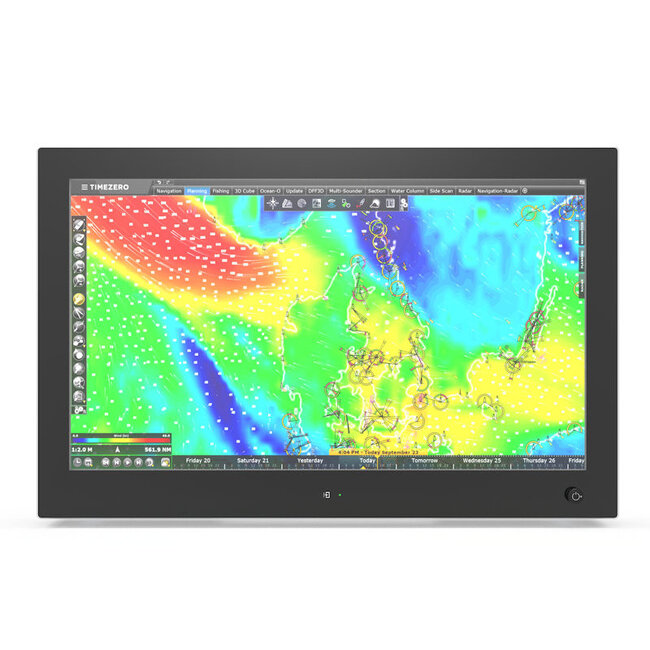

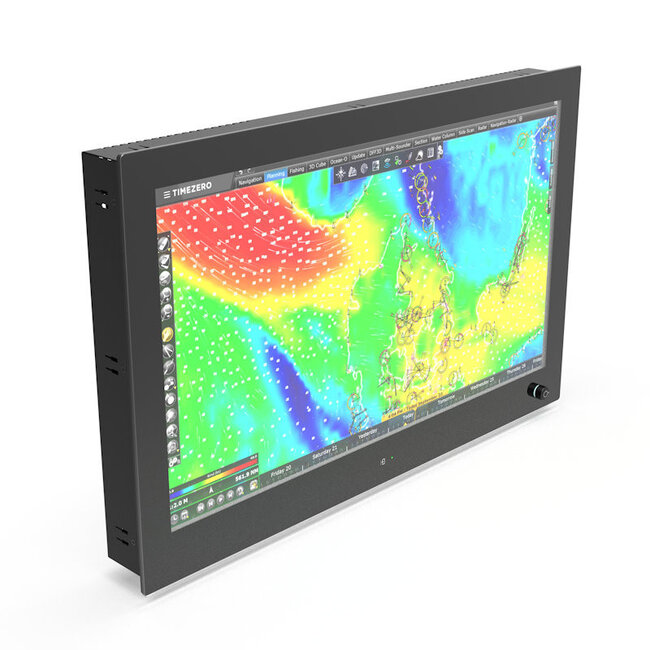

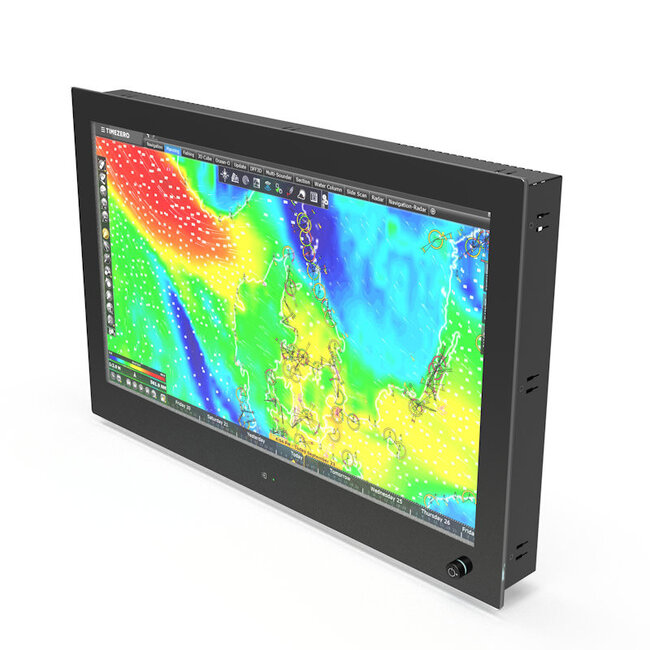

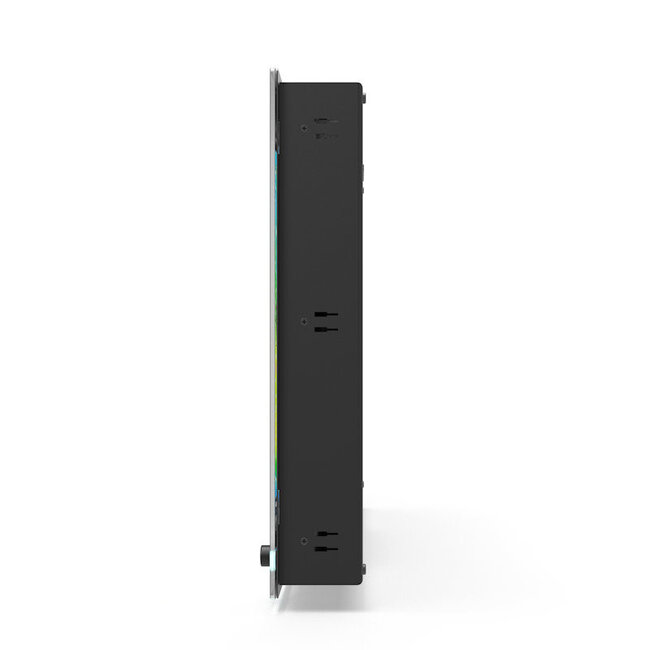

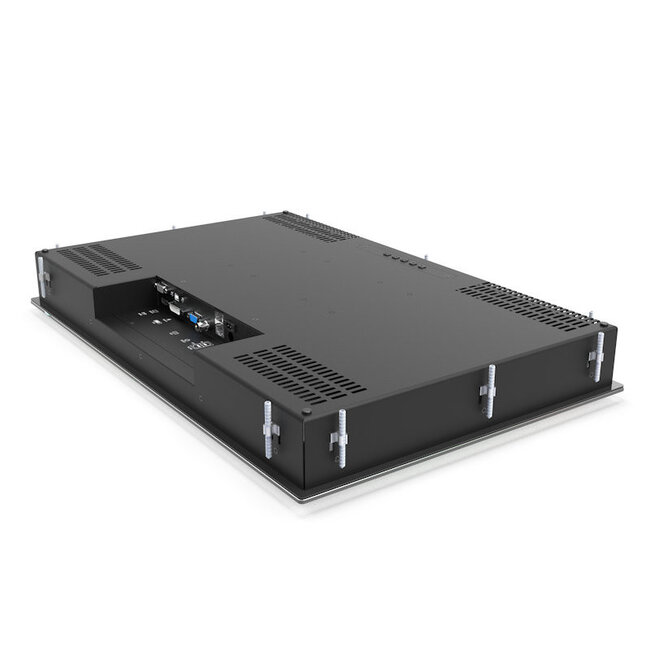

N-line N240KGE 24" full glass panel mount with multi touchscreen, 9-36V, dimming, optical bonding and anti-glare glass

The Nottrot N-line N240KGE is a 24” full glass panel mount monitor designed to meet the demanding requirements of maritime environments such as yachts, workboats, and fishing vessels. With a robust steel housing and sleek fully glass front, this monitor is made for flush console installation, delivering a waterproof, durable, and professional-grade display solution.

Part of the versatile N-line series (available in sizes from 15” to 27”), this model is ideal for displaying navigation data, power management, CCTV feeds, and alarm/monitoring systems. The N240KGE features a projected capacitive touchscreen, optical bonding, and anti-glare glass, ensuring excellent readability and performance in challenging lighting conditions.

The front-facing dimming encoder provides direct access to brightness adjustment, power on/off, and the on-screen display (OSD) menu. The KGE variant includes a capacitive switch located at the bottom of the monitor, allowing users to switch between video sources with ease. Flexible dimming options – including front knob, external control, central or multi-dimming – offer full adaptability to your system setup.

FEATURES

• Full glass front panel for sleek, flush-mounted installation

• Rugged steel housing suitable for harsh maritime use

• 24” projected capacitive multi-touchscreen

• Optical bonding and anti-glare glass for improved visibility

• Dimming encoder on the front panel for intuitive control

• Capacitive switch for video source selection (KGE model)

• Flexible dimming options: front, external, central or multi

• Designed for use with navigation, CCTV, alarms, and power systems

• Optional accessories include VESA mounting bracket or V-Stand

SPECIFICATIONS

• Brand: Nottrot

• Model: N240KGE

• Screen Size: 24”

• Resolution: 1920 x 1080 pixels

• Aspect Ratio: 16:9

• Brightness: 300 nits

• Optional High Brightness: 1000 nits

• Touch Panel: Projected capacitive touchscreen

• Power Input: 9~36VDC, galvanically isolated

• Front Panel Protection: IP65 (front only)

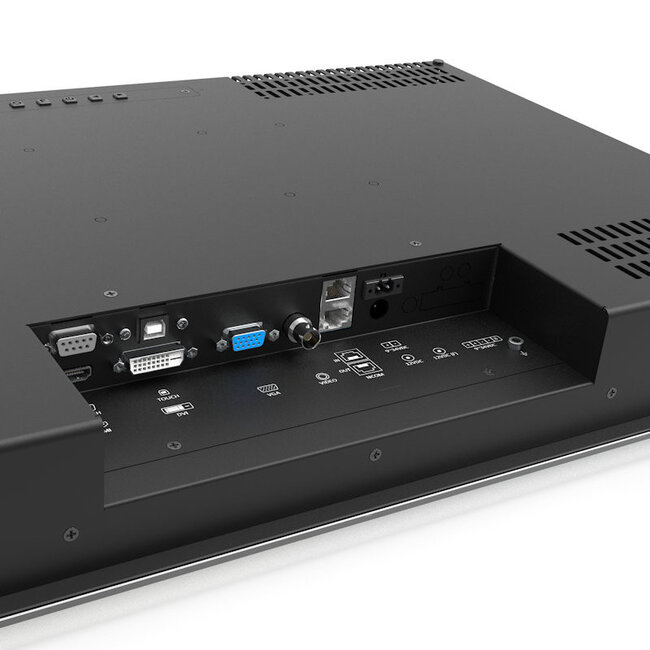

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)

• Dimming Options: Front dim encoder, optional external/central/multi

• Capacitive Switch: Yes, for video source selection

• Optional Accessories:

  • VESA Mounting Bracket (100x100)

  • V-Stand for monitors with 100 x 100 VESA mount

BROCHURES

• N-line N240KGE Product Sheet
• N-Line N240KGE Product Dimensions
• N-Line User Manual
• Entire N-line front and cutout dimensions
