AC ANTENNAS AC-VHF/GPS-FILTER

VHF/GPS-FILTER

The VHF/GPS-FILTER is a filter for splitting VHF and GPS/GLONASS antenna signals. The filter is manufactured in premium quality materials in order to prevent galvanic corrosion. VHF/GPS-FILTER is subject for improvement at all times. The filter has the same rugged design as all other AC Antennas products thus it withstands harsh environmental conditions, both on sea and land.

SPECIFICATIONS

ELECTRICAL SPECIFICATIONS:

• Part No: 990000-A
• Product Name: VHF/GPS-FILTER
• Product Group: GPS
• Frequency Range [MHz]: A: 156-162.5/ B:1575.42/ C: 1602
• Connector: SMA-Female
• Max. Input Power [Watt]: 35

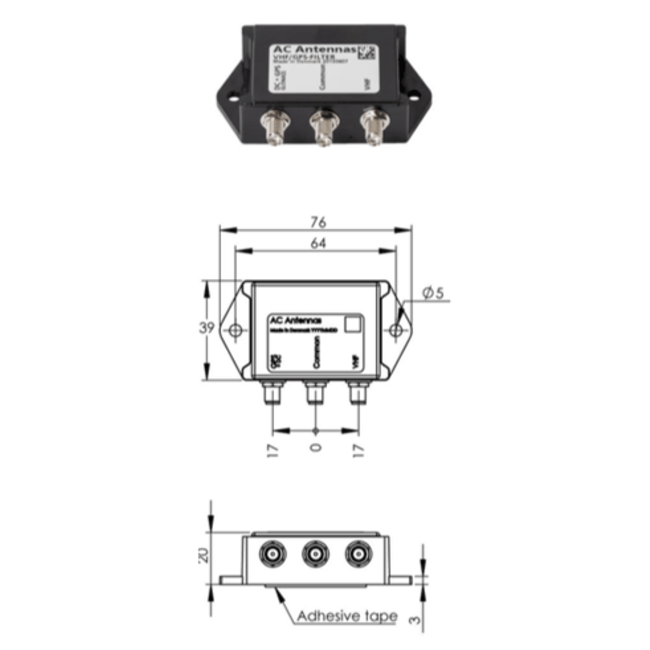

MECHANICAL SPECIFICATIONS:

• Length [m/ft.]: 0.08/0.20
• Weight [kg/lbs.]: 0.10/0.22
