SC120 Lifting Crane for SC100 pole

The Scanstrut SC120 Lifting Crane is a powerful and practical solution for safely lifting equipment on and off your vessel. Designed to mount seamlessly onto Scanstrut SC100 pole series, including the SC101, SC102, SC103, SC104 and SC105. The SC120 offers a robust lifting capacity of up to 35kg (77lb). Complete with a 4:1 lifting tackle for effortless operation, the SC120 combines strength, marine-grade durability, and user-friendly assembly to support a wide range of marine applications.

The product SC117 is designed for SC100 pole applications, providing optimal performance and reliability.

FEATURES

High Load Capacity

Safely lifts up to 35kg (77lb), making it ideal for deploying and retrieving heavy equipment such as dinghies, outboards, and other gear.

Complete Lifting Solution

Supplied with a 4:1 lifting tackle to allow easy and efficient operation with reduced effort.

Durable Marine-Grade Construction

Manufactured with robust materials and stainless steel fixings designed to withstand harsh marine environments.

Secure Pole Mounting

Engineered to mount securely onto SC100 (3”) or SC2 (4”) poles with provided 3” and 4” clamp assemblies and ferrule plates.

Simple and Reliable Installation

Features gasketed clamps for a secure, vibration-resistant fit and permanent rivet mounting for added strength.

User-Friendly Design

Crane swings freely when assembled and is easily secured or stowed using an integrated R-clip locking mechanism.

SPECIFICATIONS

• Maximum Working Load: 35kg (77lb)

• Supplied Tackle: 4:1 lifting ratio

• Dimensions:

  • Height: 791mm (31.1”)

  • Boom Length: 687mm (27”)

  • Pole Spacing: 400mm (15.75”) between clamps

• Mount Compatibility:

  • SC100 Pole (76.2mm / 3" diameter)

  • SC2 Pole (101.6mm / 4" diameter)

• Kit Includes:

  • 1x Lifting Crane

  • 2x 3” Clamp Pairs with Gaskets

  • 2x Ferrule Plates

  • 1x 4:1 Lifting Tackle

  • 8x M6 Nylon Washers

  • 8x M6 Nut Covers

  • 8x 4.8 x 16mm Rivets

  • 1x R-Clip

  • Fixings (Bolts, Nylock Nuts)

• Required Tools (not included):

  • 2x 10mm Spanners

  • 5mm (3/16”) Drill Bit

  • Measuring Tool

  • Rivet Gun

BROCHURE

• SC120 Installation Instructions

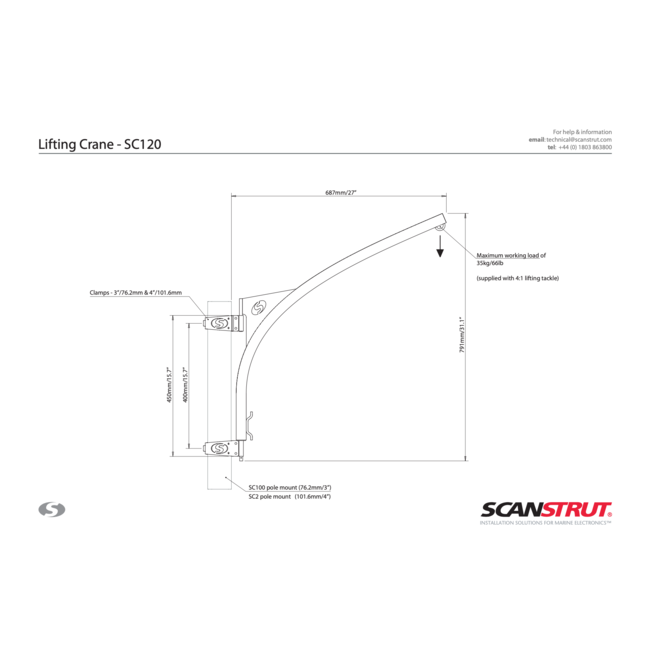

• SC120 Technical Drawing
