SC112 PowerTower GPS / VHF/ Navtex stainless steel mount - port mounting

SC112 PowerTower GPS / VHF/ Navtex stainless steel mount

The SC112 is a GPS / VHF/ Navtex stainless steel mount for Composite PowerTowers like the PT2004 and the PT2005. it is mounted to the port.

The mount is a high-quality item designed to meet your needs with optimal performance and reliability. Mount your GPS, VHF or Navtex Antenna to the port.

FEATURES

Installs GPS & VHF antennas above the radar for maximum visibility and performance.

All mounting holes are predrilled for easy retrofit installation. The light mount is attached using mounting bolts, there is no extra fastenings required.

The cables run internally via a watertight seal.

The SC112 lets you mount the antenna on the port side of the radar.

It is made of a marine-grade 316 stainless steel.

The product is designed for the installation of GPS antennas and ‘Whip’ type VHF, HF/SSB, AM/FM, and cellular antenna of up to 1m in height. The antenna must have a standard 1” x 14TPI thread as their fixing. It is also designed to work with Pacific Aerials P6161 / P6162 adapters for their Pro range of antennas.

SPECIFICATIONS

COMPATIBLE DEVICES

The SC112 fits the PT2001, PT2002, PT2004, and PT2005 Power Towers.

The product is for GPS antennas and ‘Whip’ type VHF, HF/SSB, AM/FM, and cellular antennas of up to 1m in height, and they must have a standard 1” x 14TPI thread. It also works with Pacific Aerials P6161 / P6162 adapters.

BROCHURES

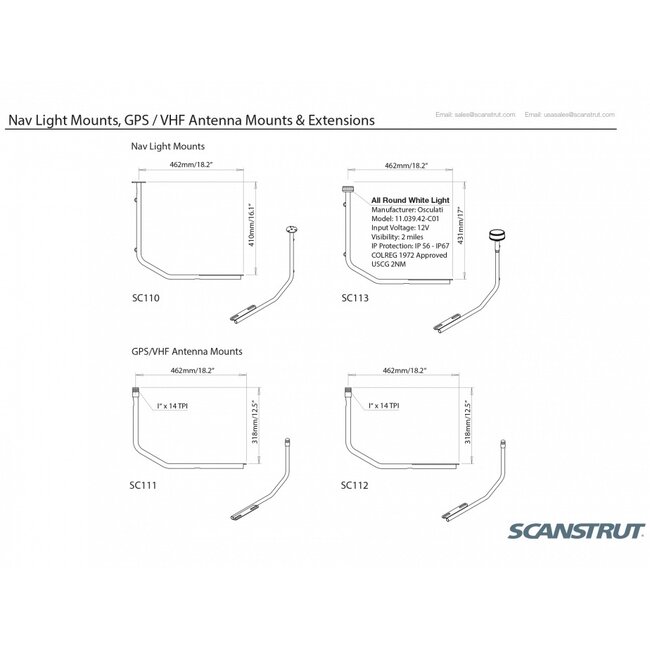

• SC112 Technical Drawing
