The SC104 Radar Pole Mount (2.5m 8.3’) fits Furuno radars, features a 360° adjustable base, hidden cable channels, and marine-grade aluminum for durability. Read more.

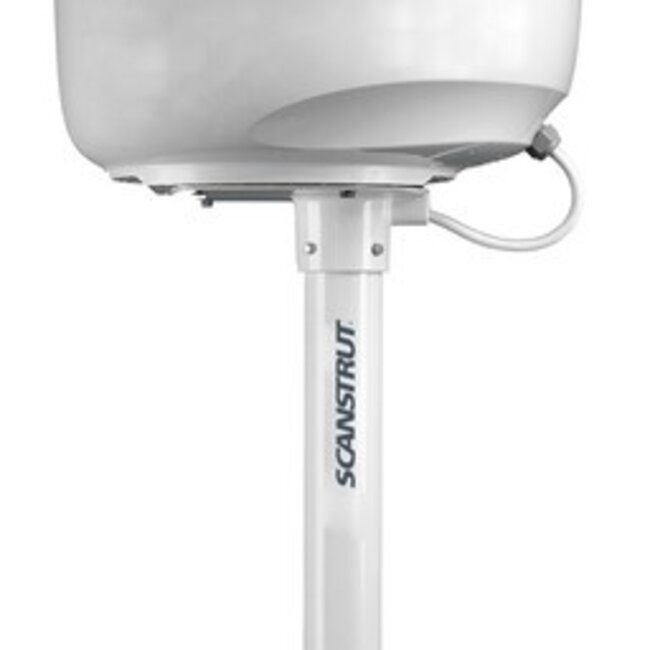

The SC104 is a high-quality radar pole mount, specifically designed to fit Furuno radars while offering universal compatibility with other leading brands. With a height of 2.5m (8.3’), it’s ideal for mounting on your boat’s deck or transom, providing a secure and reliable installation for serious cruisers and offshore adventurers.
Supplied as a complete kit, the SC104 ensures a quick and hassle-free setup with all necessary components included. Its 360° adjustable anodized aluminum base allows for installation on both sloping transoms and level decks, offering maximum flexibility to suit various boat configurations. The pole’s unique extrusion features dual cable channels with a cover strip, keeping wiring secure and out of sight for a clean, professional look.
Constructed from marine-grade 6082 aluminum and finished with a durable 4-step marine paint system, the SC104 is engineered to withstand harsh ocean conditions while maintaining a sleek, high-gloss white finish. Its easily removable design allows for quick disassembly during racing or winter storage, leaving only a low-profile base on deck. For those seeking optimal radar performance and long-lasting durability, the SC104 is the perfect solution.
The product SC103 Radar pole is a high-quality item designed to meet your needs with optimal performance and reliability.

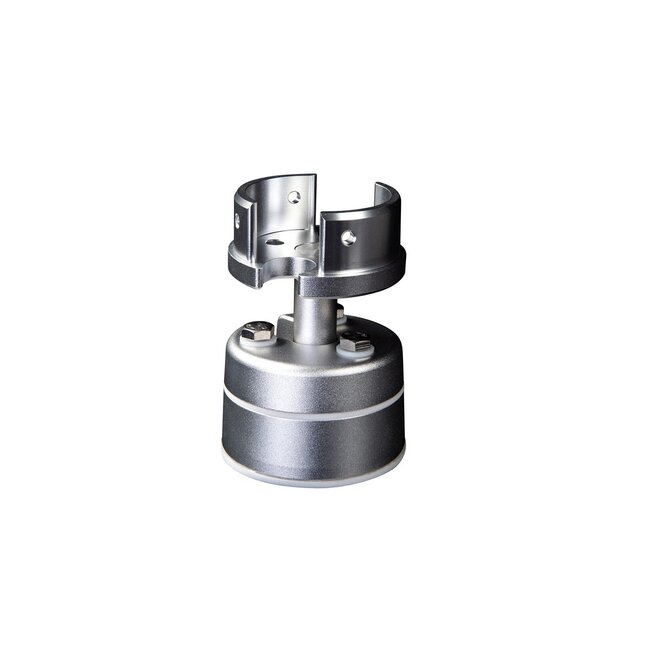

360° Adjustable Base
The newly designed anodized aluminum base offers flexibility in choosing the ideal installation spot for your pole mount. It allows for installation on both sloping transoms and level decks.
Unique Pole Extrusion
Designed with two integrated cable channels and a cover strip to keep cables secure and hidden from view.
Stable Installation
Ensure a rock-solid setup with two included support modules, providing maximum stability in both fore/aft and sideways directions.
Easily Removable
For racing or winter storage, simply unscrew the base and remove the pole, leaving only a sleek, low-profile base on the deck.
Choice of Height
Marine-Grade Materials
Crafted from 6082 aluminum with a polyester powder-coated finish, delivering durability and a sleek, high-gloss white appearance.
Size Guide
Technical Specification
| Furuno | Glomex | JRC | Lowrance |
| 1621 | Pandora v8001 | 1000, 1000mk2 | LRA-1800 / RB714A / DX42 |
| 1622 | RHEA V8100 | 1066 | LRA-2400 HD |
| 1623 | Urania V9331 | 1500, 1500mk2 | |
| 1715 | V9000 and V9001 series | 1800 | Majestic |
| 1724 | V9800 & V9100 | 2000 | SATMAR32 |
| 1734 | JMA 2343 / 5104 [Radome: NKE-2042] | SATMAR32D | |
| 1815 | Humminbird | SATMAR37D | |
| 1824 | AS 21RD4KW | Koden | |
| 1832 | 2kW 12" | Navman | |
| 1834 | Intellian | 4kW [RB715A] | 8000 Series [8084/8120] 18" |
| 1835 | FB150 in i2 | 8000 Series [8084/8120] 24" | |
| DRS2D | FB250 in i2 | KVH | |
| DRS2D-NXT | FB250R in i2 | TracVision M1 | Nobeltec |
| DRS42DL | i1 | TracVision TV1 | 2kW (20") |
| DRS42DL+ | 4kW [IR2-4D 25" 4Kw] | ||
| DRS4D / DRS4D-NXT | Interphase | Lorenz | |
| DRS4DL+ | Mini RE-1 | Lorenz 2kW | Northstar |
| DRS4W | RE-8 | M series/8000i (18") | |
| NavNet (18") | RE-9 | Sitex | M series/8000i (24") |
| NavNet (24") | MDS -1 | ||
| SC33 Sat Compass | Techmarine | MDS -8 | Simrad |
| T-72.01 | MDS -9 | GB40 / NX40/45 / NSE8/12 / RB712A / DX42S | |
| Seiwa | T-72.02 | MDS-12 | GB40 / NX40/45 / NSE8/12 DX64S |
| SWR-1 | T-72.04 | NKE-1066 | |
| SWR-8 | |||
| SWR-9 | Raymarine | ||
| 33STV |
