SC102 Radar pole mount 2.5m / 98"

The SC102 is a robust and versatile radar pole mount, designed for secure installation on your boat’s deck or transom. As part of the SC100 range, it offers a universal fit for the latest radars from Garmin, Raymarine, B&G, Simrad, and Furuno.

Supplied as a complete kit, the SC102 ensures an easy installation process with all necessary components included. Its 360° adjustable anodized aluminum base allows for mounting on both sloping transoms and level decks, providing maximum flexibility. The pole features dual cable channels with a cover strip, keeping wiring secure and hidden.

Built from marine-grade 6082 aluminum and coated with a durable 4-step marine paint system, the SC102 is designed to withstand the harshest ocean conditions while maintaining a sleek, high-gloss white finish. For added convenience, the pole can be easily removed for racing or winter storage, leaving only a low-profile base on deck.With a taller 2.5m (8.3’) height, the SC102 is the ideal choice for transom mounting, ensuring optimal radar performance for serious bluewater cruisers.

The product SC102 Radar pole is a high-quality item designed to meet your needs with optimal performance and reliability.

FEATURES

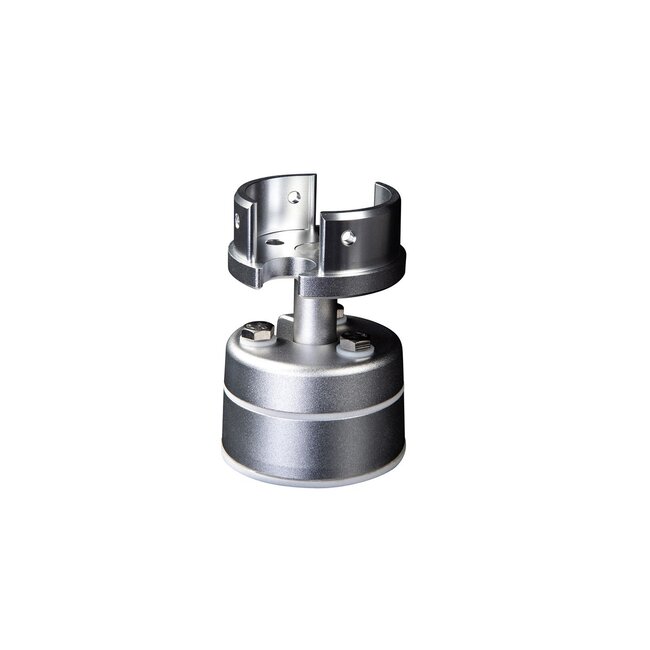

360° Adjustable Base

The newly designed anodized aluminum base offers flexibility in choosing the ideal installation spot for your pole mount. It allows for installation on both sloping transoms and level decks.

Unique Pole Extrusion

Designed with two integrated cable channels and a cover strip to keep cables secure and hidden from view.

Stable Installation

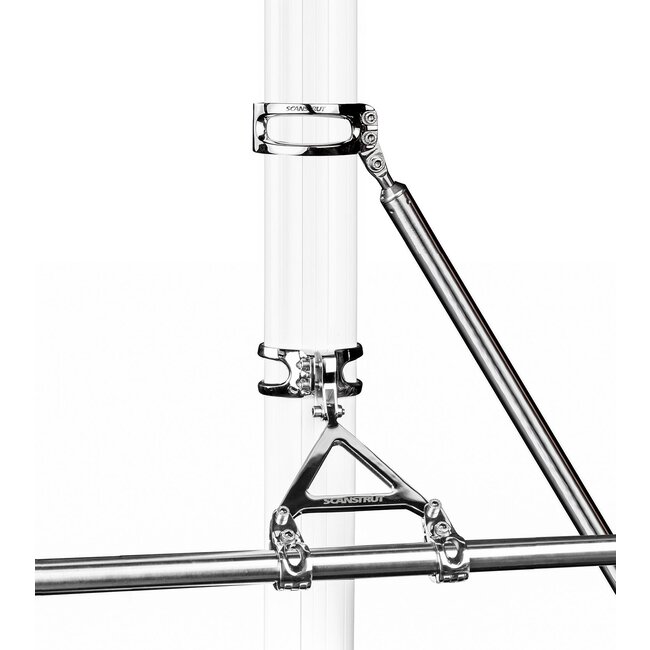

Ensure a rock-solid setup with two included support modules, providing maximum stability in both fore/aft and sideways directions.

Easily Removable

For racing or winter storage, simply unscrew the base and remove the pole, leaving only a sleek, low-profile base on the deck.

Choice of Height

• SC101: 1.9m (6.4’) is ideal for deck mounting.
• SC102: 2.5m (8.3’) is recommended for transom mounting.

Marine-Grade Materials

Crafted from 6082 aluminum with a polyester powder-coated finish, delivering durability and a sleek, high-gloss white appearance.

SPECIFICATIONS

Size Guide

• Pole Height: 2.5m (8.3')
• Pole Diameter: 83mm (3.27”)
• Deck Strut Length: 1200mm (47.2")
• Rail Standoff Diameter: 25mm rail (0.98")

Technical Specification

• Pole Material: 6082 Aluminum
• Hardware Material: Anodised Aluminium / 316 Stainless Steel
• Colour: White
• Mounting Hardware: Included

COMPATIBLE DEVICES

BROCHURES

• SC102 Installation Instructions

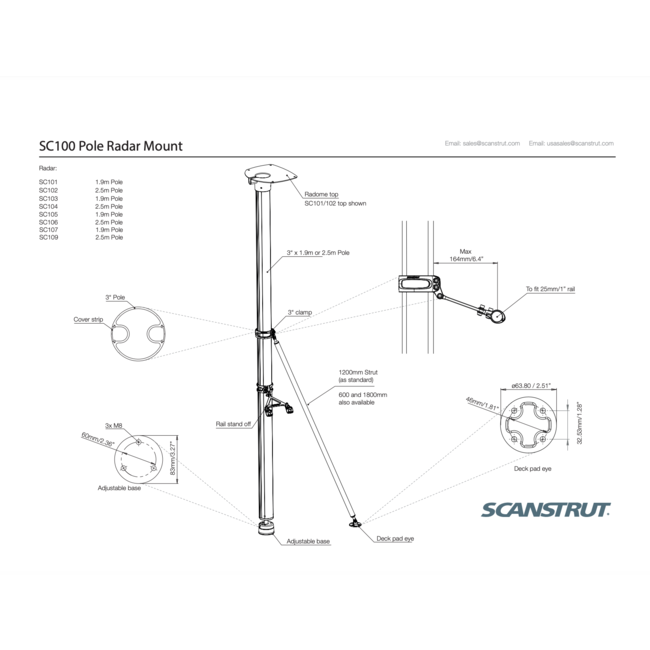

• SC102 Technical Drawing
• SC102 Pole Top Plate Dimensions
