SC101 Radar pole mount 1.9m / 75"

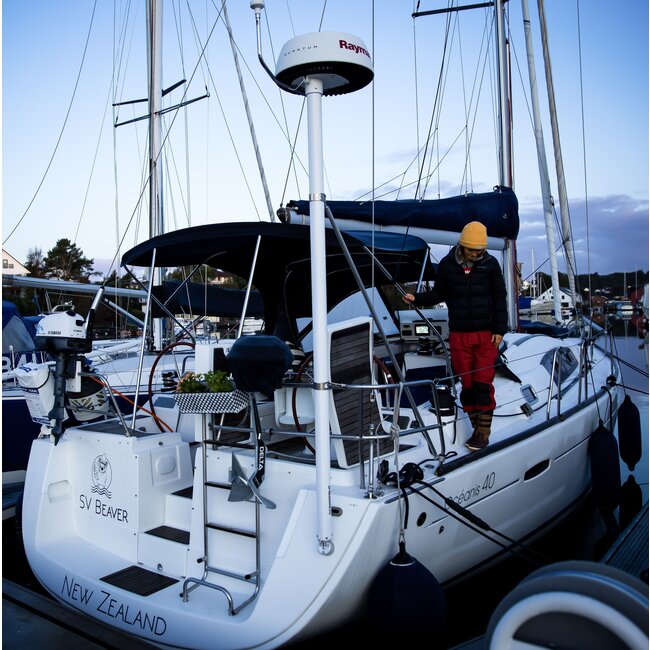

The SC101 is a premium radar pole mount from the SC100 range, designed for secure and versatile installation on your boat’s deck or transom. Supplied as a complete kit, it includes everything needed for an easy setup. Built from marine-grade aluminium and coated with a durable 4-step marine paint system, the SC101 ensures long-lasting performance, even in harsh ocean environments. Its 360° adjustable anodized aluminium base allows installation on both sloping transoms and level decks, providing maximum flexibility for serious cruisers.

The product SC101 Radar pole is a high-quality item designed to meet your needs with optimal performance and reliability.

FEATURES

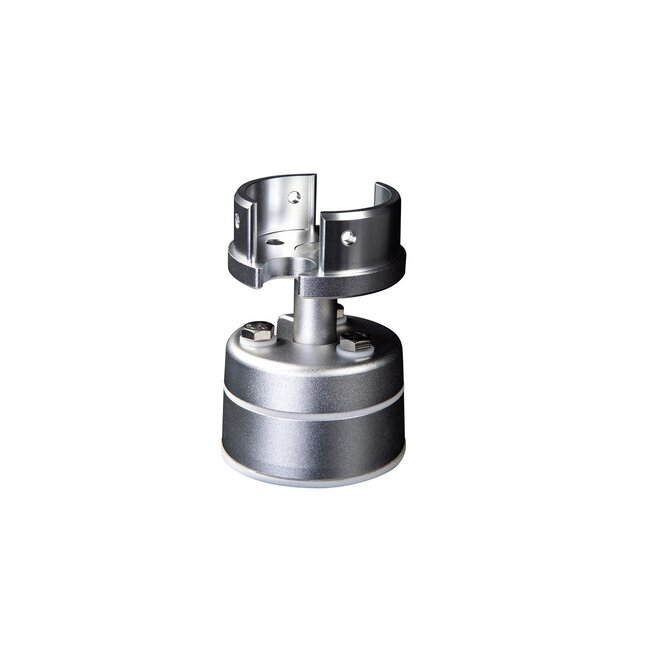

360° Adjustable Base

The newly designed anodized aluminum base offers flexibility in choosing the ideal installation spot for your pole mount. It allows for installation on both sloping transoms and level decks.

Unique Pole Extrusion

Designed with two integrated cable channels and a cover strip to keep cables secure and hidden from view.

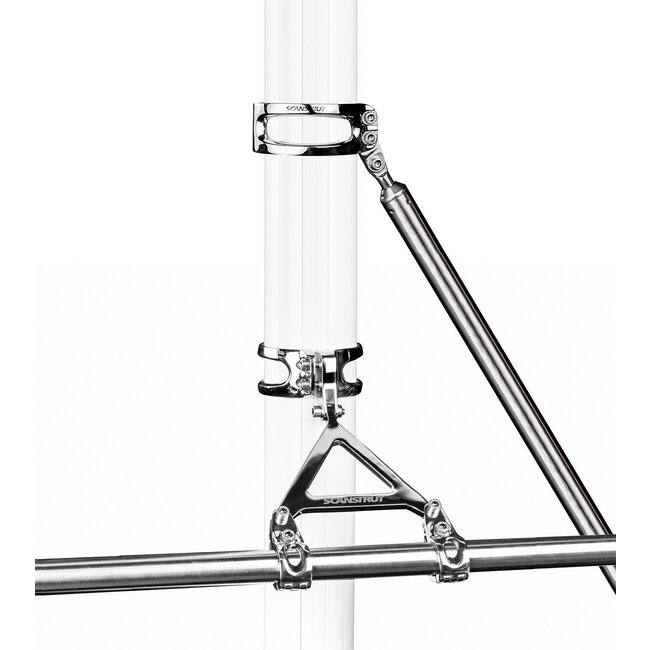

Stable Installation

Ensure a rock-solid setup with two included support modules, providing maximum stability in both fore/aft and sideways directions.

Easily Removable

For racing or winter storage, simply unscrew the base and remove the pole, leaving only a sleek, low-profile base on the deck.

Choice of Height

• SC101: 1.9m (6.4’) is ideal for deck mounting.
• SC102: 2.5m (8.3’) is recommended for transom mounting.

Marine-Grade Materials

Crafted from 6082 aluminum with a polyester powder-coated finish, delivering durability and a sleek, high-gloss white appearance.

SPECIFICATIONS

Size Guide

• Pole Height: 1.9m (6.4')
• Pole Diameter: 83mm (3.27”)
• Deck Strut Length: 1200mm (47.2")
• Rail Standoff Diameter: 25mm rail (0.98")

Technical Specification

• Pole Material: 6082 Aluminum
• Hardware Material: Anodised Aluminium / 316 Stainless Steel
• Colour: White
• Mounting Hardware: Included

COMPATIBLE DEVICES

BROCHURES

• SC101 Installation Instructions

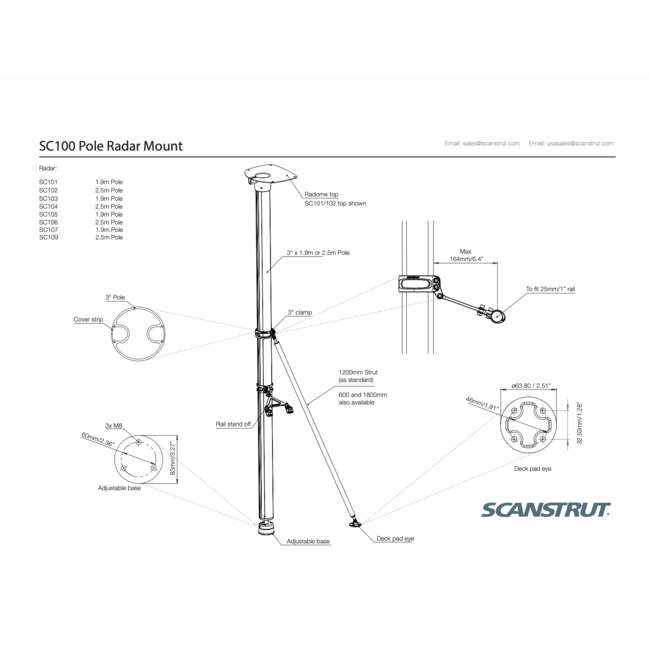

• SC101 Technical Drawing
• SC101 Pole Top Plate Dimensions
