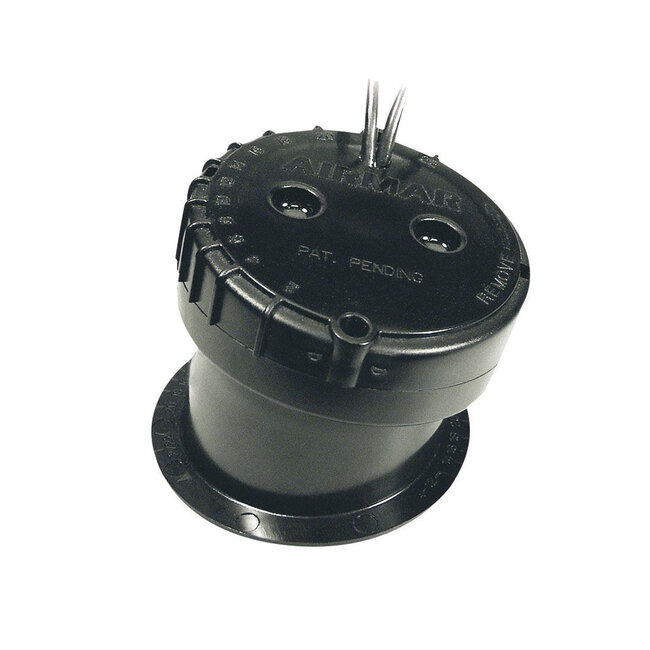

P79 Transducer 7-pin Lowrance Depth

The P79S brings smart depth sensing to your boat with Airmar’s advanced Smart™ Sensor technology. This all-in-one, in-hull transducer features integrated microelectronics, allowing the depth signal to be processed right inside the sensor just millimeters from the ceramic element. The result is accurate, real-time depth data delivered directly to your onboard network via a single cable. Compatible with NMEA 0183 and NMEA 2000®, it supports seamless integration with multiple displays. Installation is simple and clean: the included plastic mounting base is aligned to the centerline and secured inside the hull, then filled with non-toxic antifreeze to create an ideal acoustic medium. The transducer is inserted and angled to match the hull’s deadrise, up to 22° ensuring the beam is directed straight down for optimal echo returns. With no external hull protrusions, the P79S is perfect for trailered or dry-stored boats. It’s specifically designed for smaller vessels up to 8 meters (25 feet) with solid fiberglass hulls.

FEATURES

• Depth only
• 100 W of power
• 235 kHz frequency prevents mutual interference with other echo sounders on the vessel
• 7° beamwidth
• Depth range:
  • NMEA 0183 model has maximum depth of 100 m (330')
  • NMEA 2000 model has maximum depth of 150 m (500')
• No holes to drill
• In-hull installation can be done while the boat is in the water
• Urethane transducer with adjustable, plastic, mounting base
• Available in NMEA 0183 or NMEA 2000 protocol
• NMEA 2000 certified or NMEA 0183 cable
• Available P79 analog version

SPECIFICATIONS

• Functions: Depth
• Mounting Style: In-Hull
• Power Rating: 60 W / NMEA 0183 & 100 W / NMEA 2000
• Housing: Urethane
• Max Deadrise Angle: 22°
• Hull Material: Solid fiberglass only
• Retractable housing: No
• Acoustic Window: Layered plastic urethane (LPU)
• Common Use: Leisure/Yachting, Fishing
• Conventional Beam: 7°
• Max Deadrise: Up to 22°
• Max Depth: 100 m (330’) NMEA 0183, 150 m (500’) NMEA 2000
• Max Vessel LOA: Up to 8 m (26')
• Single or Dual Frequency: Conventional Single Frequency
• Tilted Element: No
• Weight: 0.9 kg (2 lb.)
