N-line N270KGE 27" Full Glass Panel Mount with Multi Touchscreen, 9–36V, Dimming, Optical Bonding and Anti-Glare Glass

The Nottrot N-line N270KGE is the largest model in the N-line series, offering a generous 27” full glass panel mount display for advanced maritime applications. Built for use on yachts, workboats, and fishing vessels, it features a durable steel body and waterproof full glass front, making it ideal for flush integration into marine consoles. The N-line range (available from 15” to 27”) is tailored to display navigation data, monitoring systems, CCTV feeds, and power management interfaces with clarity and reliability.

Equipped with a front-mounted dimming encoder, the N270KGE allows direct control of brightness, power, and the OSD (on-screen display) menu. The KGE model also includes a capacitive switch at the bottom of the screen for quick video input switching. With a projected capacitive touchscreen, optical bonding, and anti-glare glass, this monitor delivers excellent visibility and precise touch functionality even in harsh or high-light environments.

FEATURES

• Full glass front panel designed for flush console mounting

• Rugged steel construction suitable for marine environments

• Projected capacitive multi-touch touchscreen

• Front dimming encoder for easy control of brightness, power, and OSD menu

• Capacitive switch for fast video input selection

• Optical bonding and anti-glare glass for enhanced screen readability

• Suitable for navigation, monitoring, CCTV, and marine system displays

• Available in screen sizes from 15” to 27”

• Flexible dimming options: front, external, central, and multi-display setups

SPECIFICATIONS

• Brand: Nottrot

• Model: N270KGE

• Screen Size: 27”

• Resolution: 1920 x 1080 pixels

• Aspect Ratio: 16:9

• Brightness: 350 nits

• Optional High Brightness: 1000 nits

• Touch Panel: Projected capacitive touchscreen

• Power Input: 9~36VDC, galvanically isolated

• Front Panel Protection: IP65 (front only)

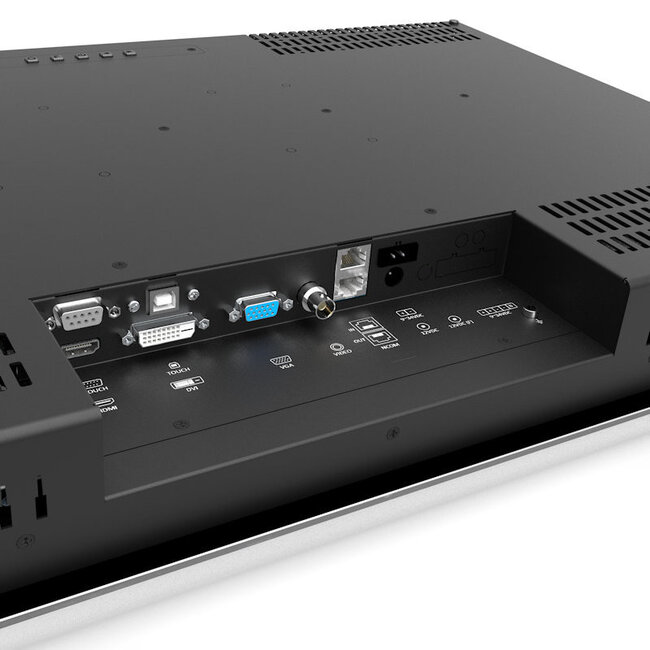

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)

• Dimming Control: Front encoder; compatible with external and multi-display dimming

• Capacitive Switch: Yes, for video input selection

• Optional Accessories:

  • Mounting bracket (VESA) 100x100

  • V-Stand for monitors with 100 x 100 VESA bracket

BROCHURES

• N-line N270KGE Product Sheet
• N-Line N270KGE Product Dimensions
• N-Line User Manual
• Entire N-line front and cutout dimensions
