N-line N270KGE 27" Full Glass Panel Mount with Multi Touchscreen, 9–36V, Dimming, Optical Bonding and Anti-Glare Glass – DNV Certified

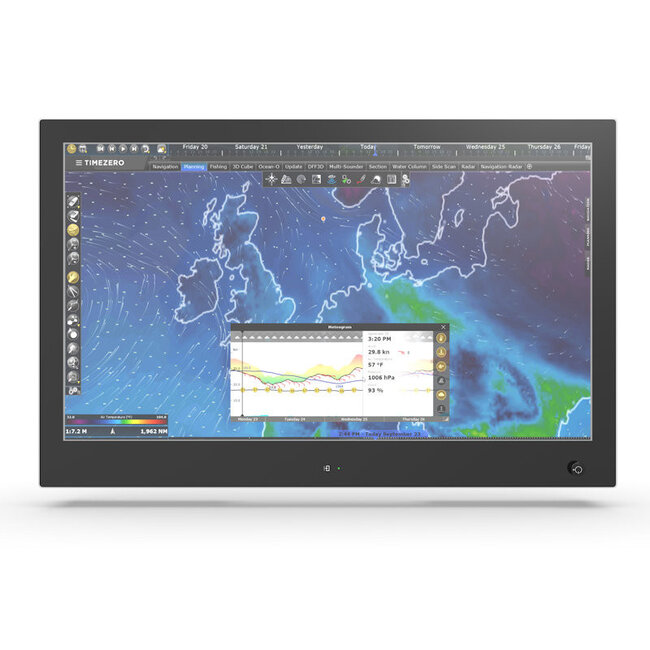

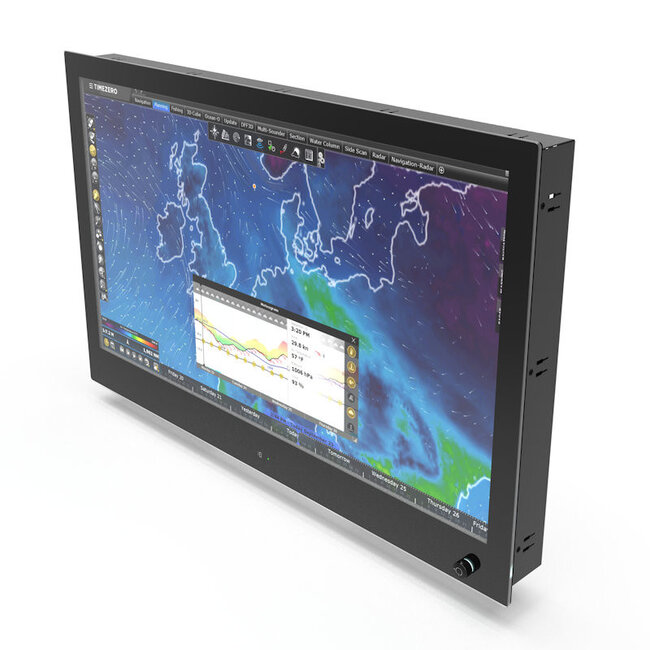

The Nottrot N-line N270KGE is a high-performance 27” full glass panel mount monitor, engineered specifically for marine use. Designed for yachts, workboats, and fishing vessels, this monitor combines a rugged steel body with a sleek full glass front, ensuring water resistance and seamless integration into control consoles.

Ideal for displaying navigation data, CCTV footage, alarm systems, and power management interfaces, the N270KGE is built for reliability in harsh environments. The front-facing dimming encoder allows intuitive control of brightness, power, and OSD functions, while the capacitive switch at the bottom enables fast switching between video sources. With projected capacitive multi-touch, optical bonding, and anti-glare glass, this monitor offers exceptional clarity and responsiveness.

The unit is DNV (IEC 60945) certified, making it suitable for professional maritime applications where compliance and durability are essential.

FEATURES

• Full glass flush-mount design with marine-grade steel housing

• Certified to DNV (IEC 60945) standards for maritime applications

• Projected capacitive multi-touchscreen

• Anti-glare, optically bonded glass for superior visibility

• Integrated dimming encoder (front) for brightness, power, and OSD control

• Capacitive video input selector switch

• Ideal for marine navigation, alarm systems, CCTV, and monitoring displays

• Available in screen sizes from 15” to 27”

• Flexible dimming configurations available

SPECIFICATIONS

• Brand: Nottrot

• Model: N270KGE

• Screen Size: 27”

• Resolution: 1920 x 1080 pixels

• Aspect Ratio: 16:9

• Brightness: 350 nits

• Optional High Brightness: 1000 nits

• Touch Panel: Projected capacitive touchscreen

• Power Input: 9~36VDC, galvanically isolated

• IP Rating: IP65 (front only)

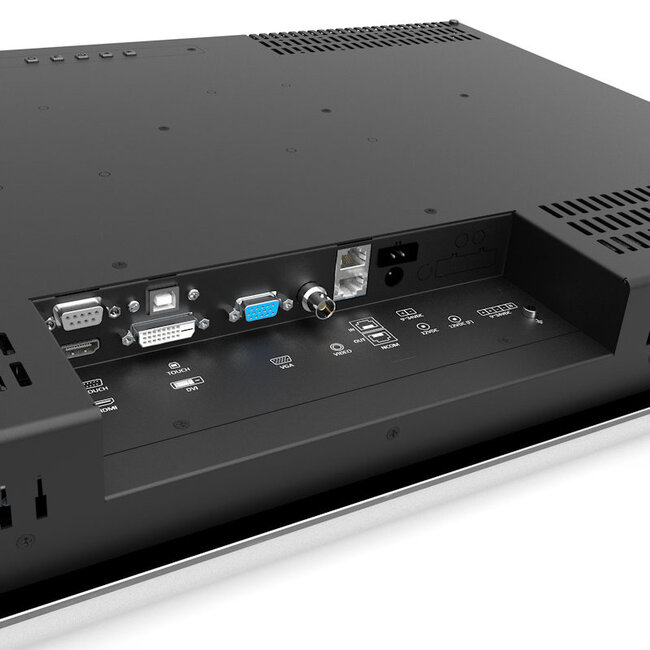

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)

• Dimming Control: Front encoder, optional multi-dimming solutions

• Capacitive Input Switch: Yes

• Optional Accessories:

  • VESA Mounting Bracket (100 x 100)

  • V-Stand for VESA-compatible monitors

BROCHURES

• N-line N270KGE - DNV Product Sheet
• N-Line N270KGE - DNV Product Dimensions
• N-Line User Manual
• Entire N-line front and cutout dimensions
