N-line N270KGE 27" Full Glass Panel Mount with High Bright, Multi Touchscreen, 9–36V, Dimming, Optical Bonding and Anti-Glare Glass

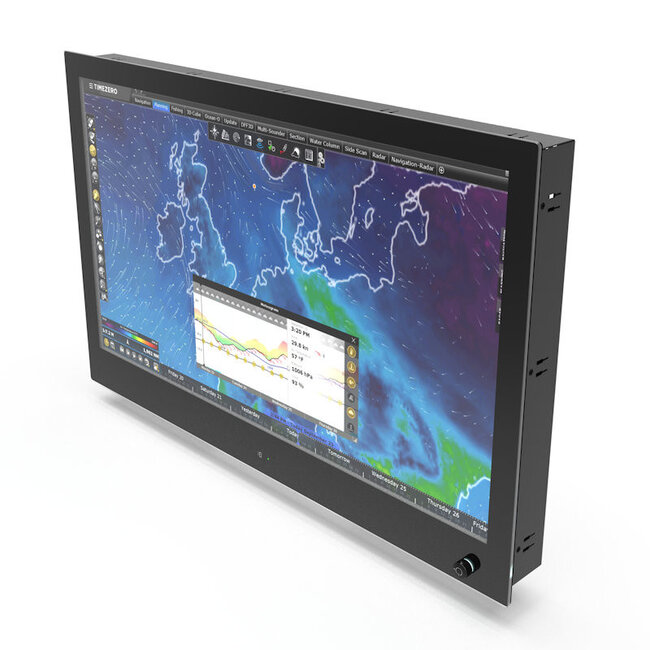

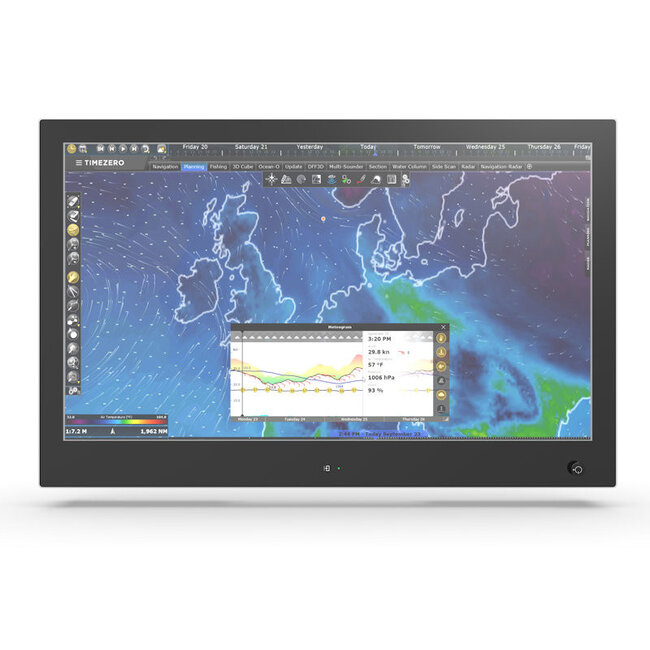

The Nottrot N-line N270KGE is a premium 27” full glass panel mount monitor designed for demanding marine environments. Built with a sturdy steel chassis and a waterproof full glass front, this unit is engineered for flush mounting into yacht, workboat, and fishing vessel consoles. Its expansive display is ideal for critical systems such as navigation, CCTV, alarm monitoring, and power management.

This high bright version is equipped with a display reaching up to 1000 nits, making it ideal for high ambient light conditions or direct sunlight. The front-facing dimming encoder offers direct access to brightness, power control, and OSD menu functions, while the capacitive switch at the bottom of the screen enables fast selection between video inputs. With projected capacitive multi-touch, optical bonding, and anti-glare glass, the monitor ensures both interactivity and readability in all conditions.

FEATURES

• Ultra-bright screen up to 1000 nits for sunlight readability

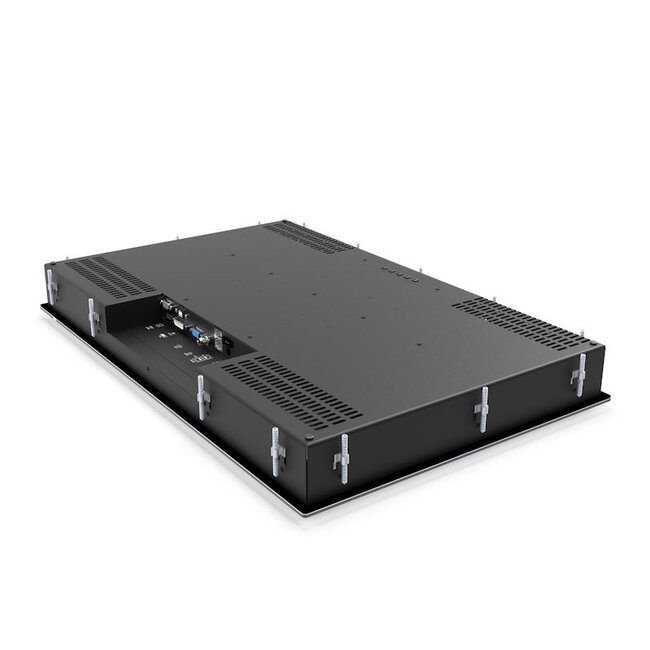

• Flush-mount full glass design for marine consoles

• Rugged steel body for durability in harsh environments

• Projected capacitive touchscreen for multi-touch control

• Front dimming encoder for brightness, power, and OSD management

• Capacitive switch for quick video input switching

• Anti-glare and optically bonded screen for superior clarity

• Versatile use for navigation, CCTV, monitoring, and marine systems

• Available in sizes from 15” to 27”

• Multiple dimming options: front, external, central, multi-display

SPECIFICATIONS

• Brand: Nottrot

• Model: N270KGE

• Screen Size: 27”

• Resolution: 1920 x 1080 pixels

• Aspect Ratio: 16:9

• Brightness: 350 nits

• Optional High Brightness: 1000 nits

• Touch Panel: Projected capacitive touchscreen

• Power Input: 9~36VDC, galvanically isolated

• IP Rating: IP65 (front only)

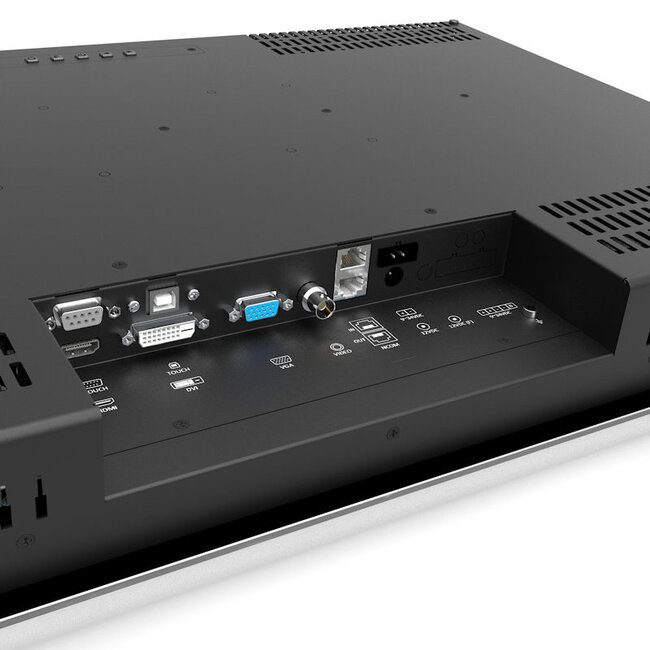

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)

• Dimming Control: Front encoder with optional external/multi-display setups

• Capacitive Switch: Yes, for video source selection

• Optional Accessories:

  • Mounting bracket (VESA) 100x100

  • V-Stand for 100 x 100 VESA-compatible monitors

BROCHURES

• N-line N270KGE Product Sheet
• N-Line N270KGE Product Dimensions
• N-Line User Manual
• Entire N-line front and cutout dimensions
