The N-line N270KG is a 27" marine monitor with multi-touch, external dimmer & anti-glare glass. Waterproof, IP68 front & ideal for navigation and CCTV. Read more.

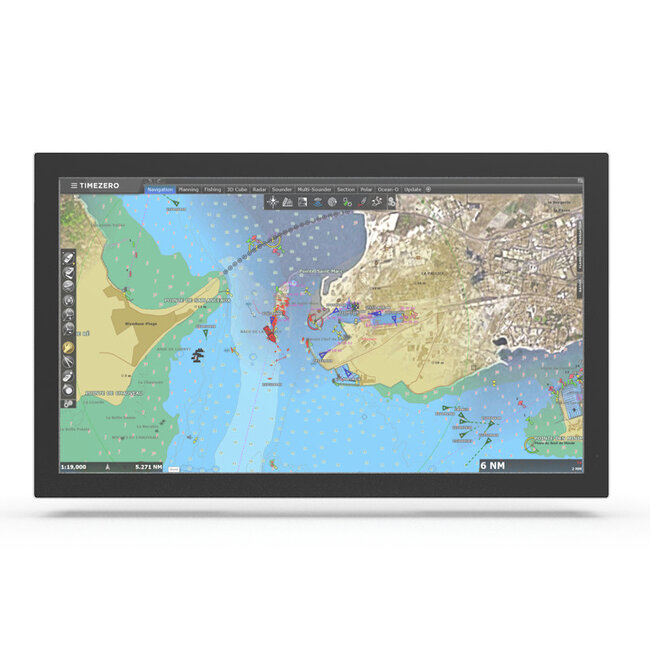

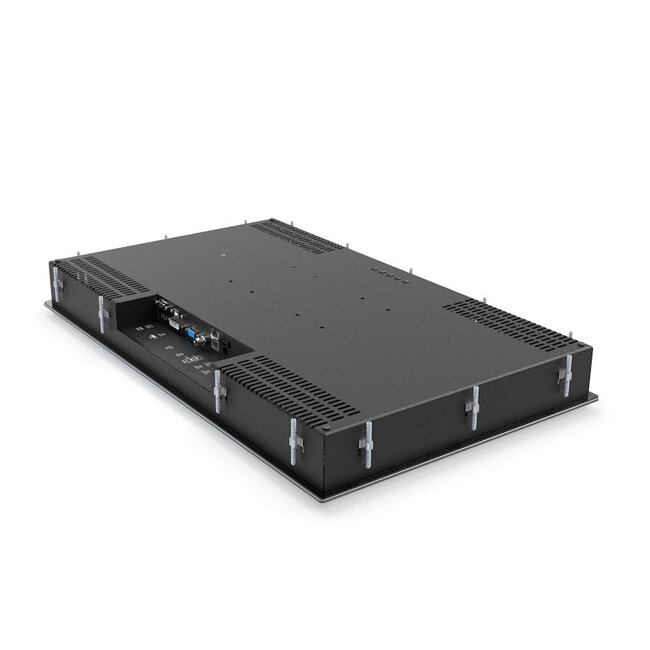

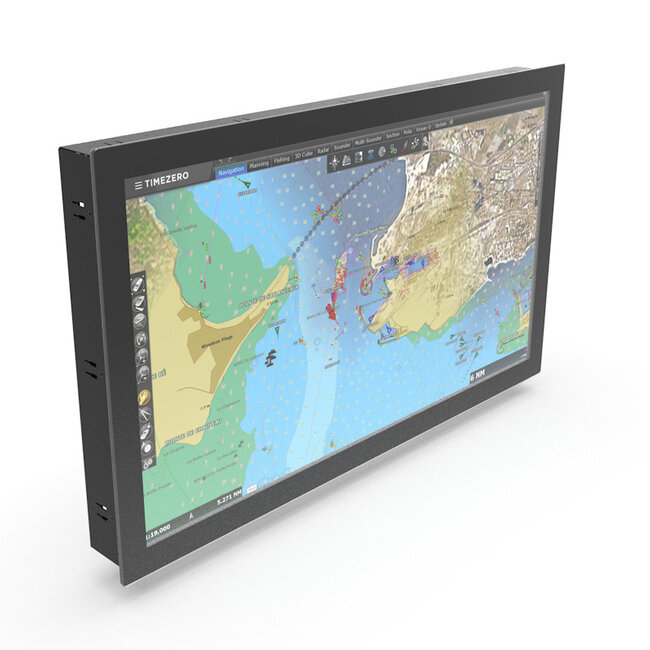

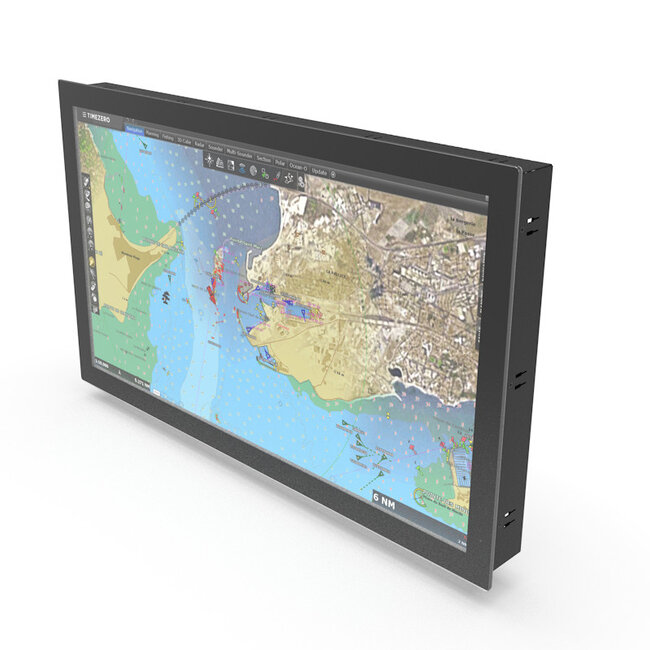

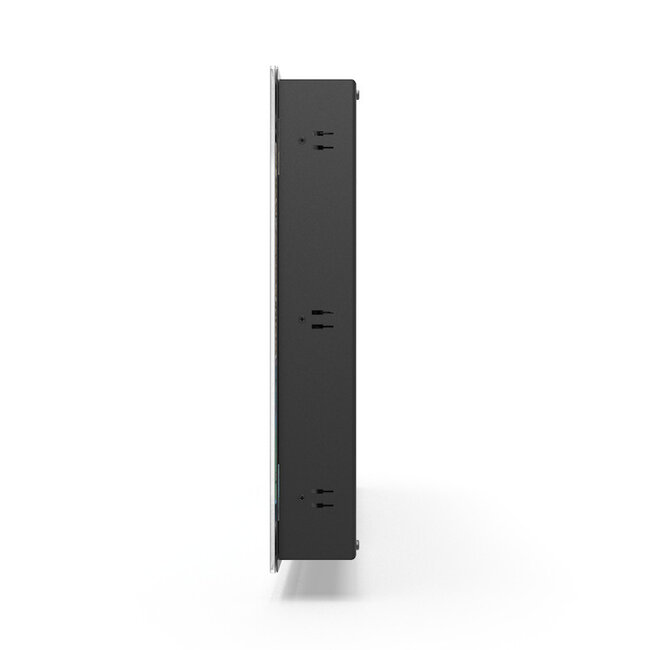

The Nottrot N-line N270KG is the largest in the KG series of full glass panel mount monitors, offering a spacious 27” display built for performance in tough maritime conditions. Designed with a rugged steel enclosure and waterproof full glass front, it’s ideal for flush-mount installation in the consoles of yachts, workboats, and fishing vessels. The screen delivers sharp visuals for marine navigation, CCTV, alarm systems, and power management interfaces.
The KG model comes equipped with an external dimming encoder, providing tactile control over brightness, power, and OSD settings. Built with a projected capacitive touchscreen, optical bonding, and anti-glare glass, the N270KG ensures a crystal-clear and responsive user experience, even in brightly lit or high-moisture environments. It supports a wide range of input options and offers flexibility for single or multi-monitor setups.
Full glass front with flush-mount capability
Reinforced steel body for maritime durability
Projected capacitive multi-touch touchscreen
External dimming encoder for control over brightness, power, and OSD menu
Anti-glare glass with optical bonding for enhanced visibility
Suitable for navigation data, CCTV, alarms, and marine control systems
Flexible dimming setups: external, central, and multi-monitor
Available in screen sizes from 15” to 27”
Brand: Nottrot
Model: N270KG
Screen Size: 27”
Resolution: 1920 x 1080 pixels
Aspect Ratio: 16:9
Brightness: 350 nits
Optional High Brightness: 1000 nits
Touch Panel: Projected capacitive touchscreen
Power Input: 9~36VDC, galvanically isolated
Front Panel Protection: IP68 (front only)

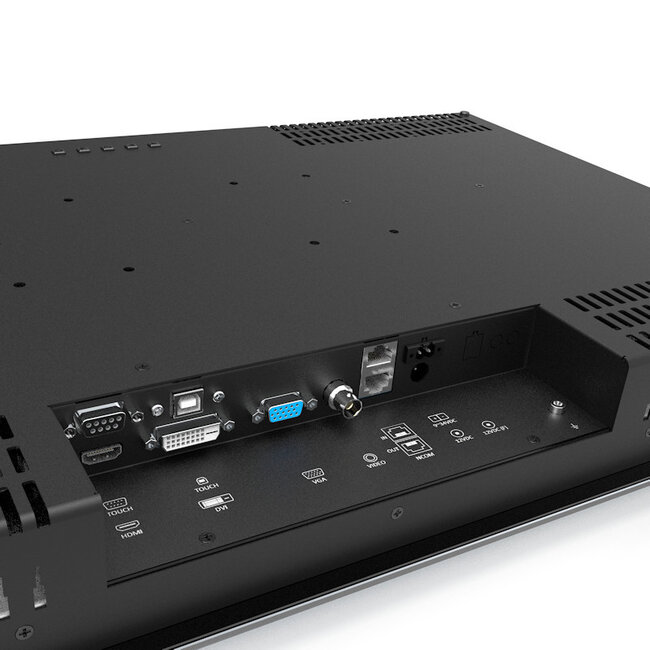

Standard Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)
Dimming Control: External encoder with central/multi-dimming support
Optional Accessories:
Mounting bracket (VESA) 100x100
V-Stand for 100 x 100 VESA-compatible monitors
