The N-line N270KG is a 27" high bright marine monitor with multi-touch, anti-glare glass & external dimmer. DNV certified & sunlight readable up to 1000 nits. Read more.

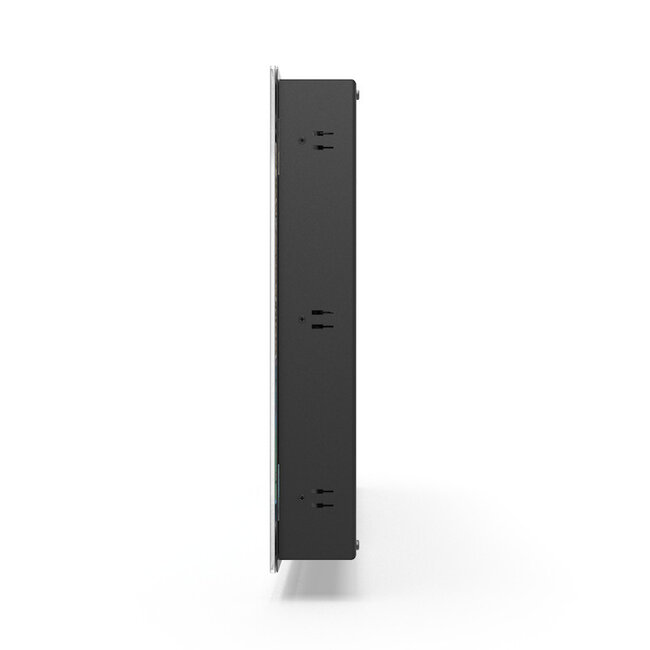

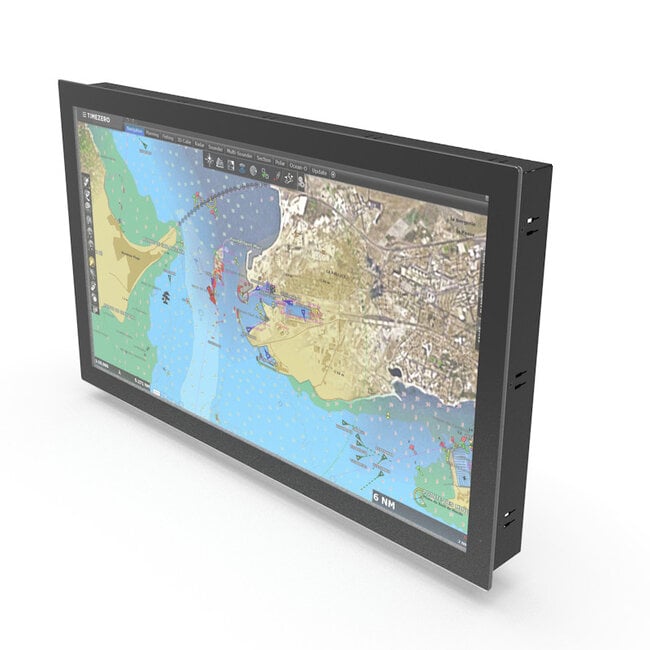

The Nottrot N-line N270KG is a high-performance 27” full glass panel mount monitor, engineered for the demanding conditions of maritime environments. Designed for yachts, workboats, and fishing vessels, it features a robust steel body and sleek glass front that can be flush-mounted into any console, ensuring a waterproof and professional installation.

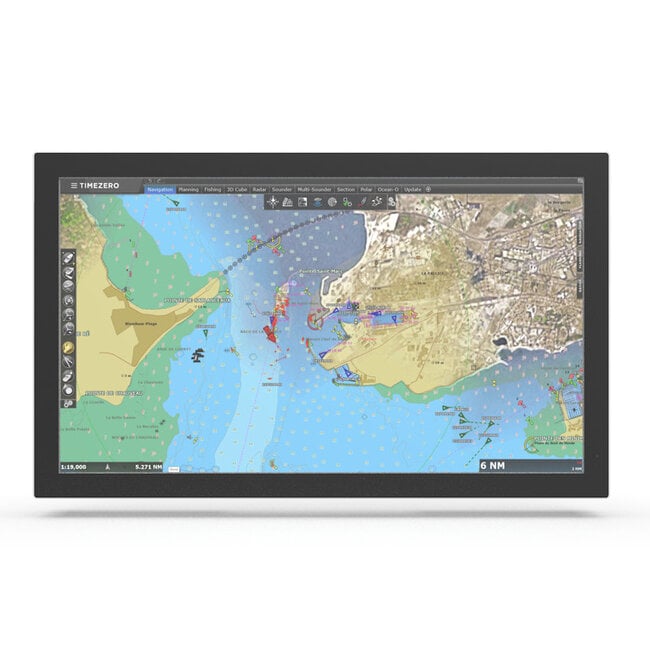

This model is well-suited for displaying navigation data, alarm and monitoring systems, CCTV, and power management. The KG version comes equipped with an external dimming encoder, giving users direct control over brightness, power functions, and OSD access. Flexible dimming options are available to match your preferred configuration—whether front-mounted, external, or centralized.
For enhanced readability in sunlit or high-ambient-light conditions, the high bright version offers up to 1000 nits, making it the perfect choice for bridge or deck installations. The monitor is DNV (IEC 60945) certified, guaranteeing compliance with international maritime standards.
DNV (IEC 60945) certified for maritime use
High bright display option for up to 1000 nits
External dimming encoder for brightness and OSD control
Full glass front with anti-glare coating and optical bonding

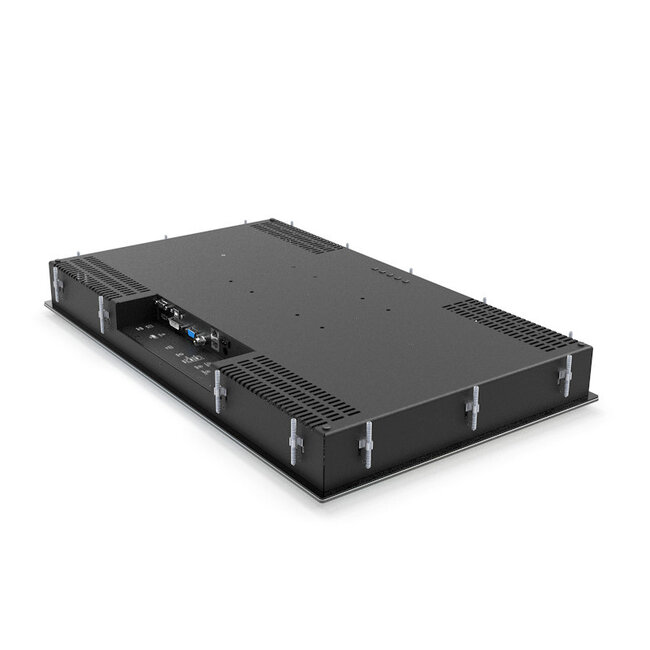

Steel housing for flush console integration
Projected capacitive multi-touch screen
Supports a range of dimming configurations
Ideal for navigation, monitoring, CCTV, and marine systems
Available in sizes from 15” to 27”
Brand: Nottrot
Model: N270KG
Screen Size: 27”
Resolution: 1920 x 1080 pixels
Aspect Ratio: 16:9
Brightness: 350 nits
Optional High Brightness: 1000 nits
Touch Panel: Projected capacitive touchscreen
Power Input: 9~36VDC, galvanic isolated
IP Rating: IP68 (front only)

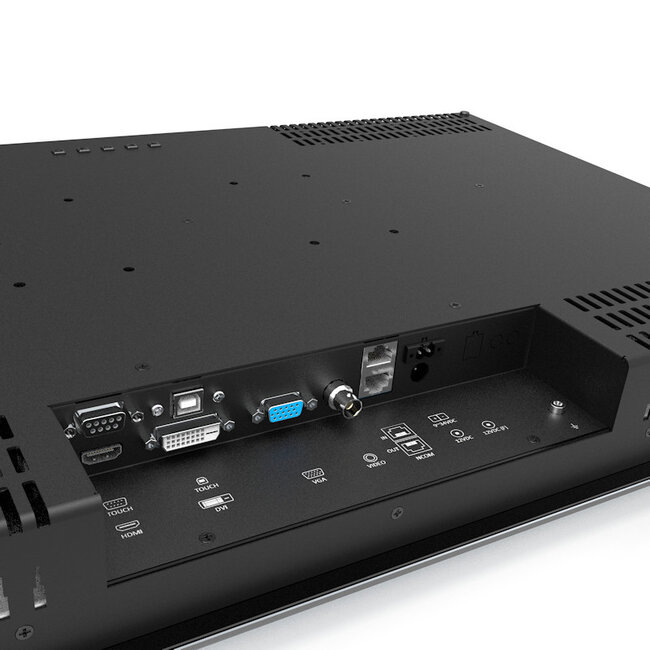

Standard Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)
Optional Accessories:
VESA Mounting Bracket (100 x 100)
V-Stand for VESA-compatible monitors
