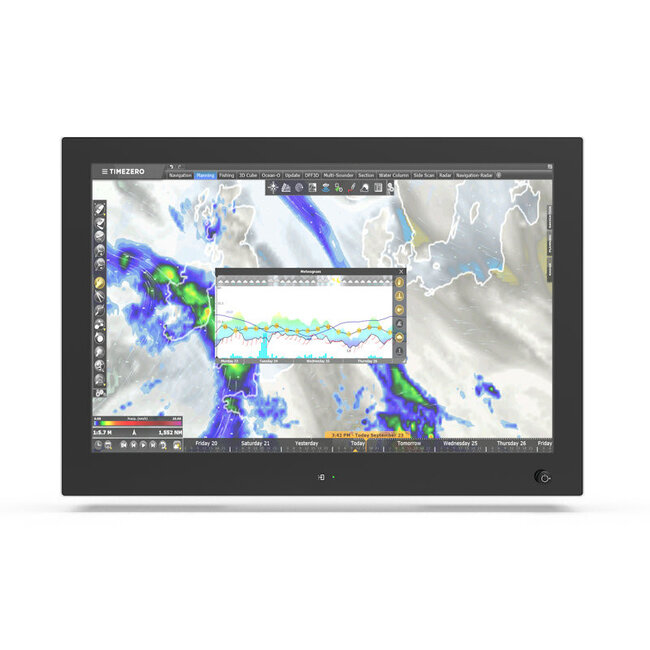

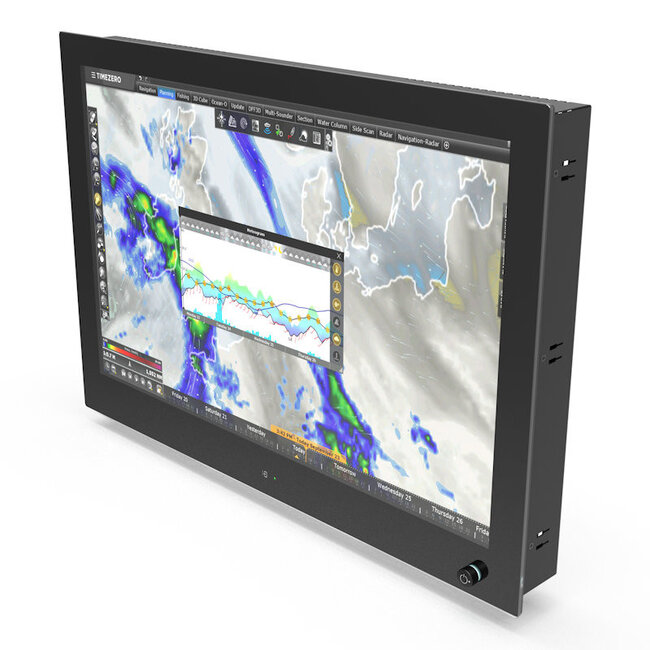

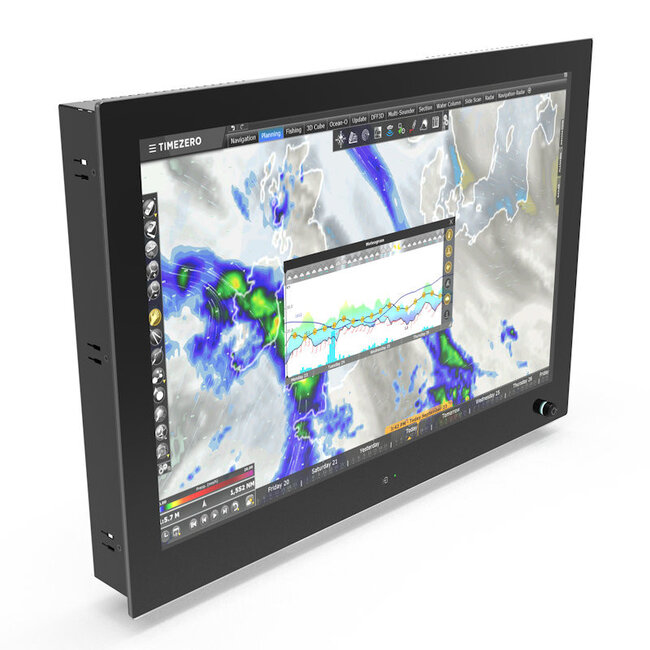

N-line N241KGE 24,1" Full Glass Panel Mount with Multi Touchscreen, 9-36V, Dimming, Optical Bonding and Anti-Glare Glass

The Nottrot N-line N241KGE is a 24,1” full glass panel mount monitor developed for demanding maritime environments, delivering both aesthetic appeal and rugged functionality. Designed with a robust steel body and a waterproof full glass front, it integrates seamlessly into consoles on yachts, workboats, and fishing vessels. Part of the versatile N-line series (available from 15” to 27”), this model is ideal for displaying navigation, alarm systems, power management, and CCTV.

Equipped with a front-facing dimming encoder, the monitor gives users intuitive control over brightness, power functions, and the OSD (on-screen display) menu. The KGE model also includes a capacitive switch at the bottom of the screen for fast video input switching. Featuring a projected capacitive multi-touch panel and optically bonded anti-glare glass, the N241KGE offers excellent clarity and smooth interaction in varying lighting conditions.

FEATURES

• Sleek, waterproof full glass front for flush console installation

• Steel body built for durability in marine environments

• Projected capacitive multi-touch touchscreen

• Integrated dimming encoder for brightness, power, and OSD access

• Capacitive switch for easy video input selection (KGE model)

• Optically bonded and anti-glare glass for enhanced visibility

• Suitable for navigation, monitoring, CCTV, and marine control applications

• Flexible dimming options: front, external, central, or multi-monitor setups

• Available in screen sizes from 15” to 27”

SPECIFICATIONS

• Brand: Nottrot

• Model: N241KGE

• Screen Size: 24,1”

• Resolution: 1920 x 1200 pixels

• Aspect Ratio: 16:10

• Brightness: 350 nits

• Optional High Brightness: 1000 nits

• Touch Panel: Projected capacitive touchscreen

• Power Input: 9~36VDC, galvanically isolated

• Front Panel Protection: IP65 (front only)

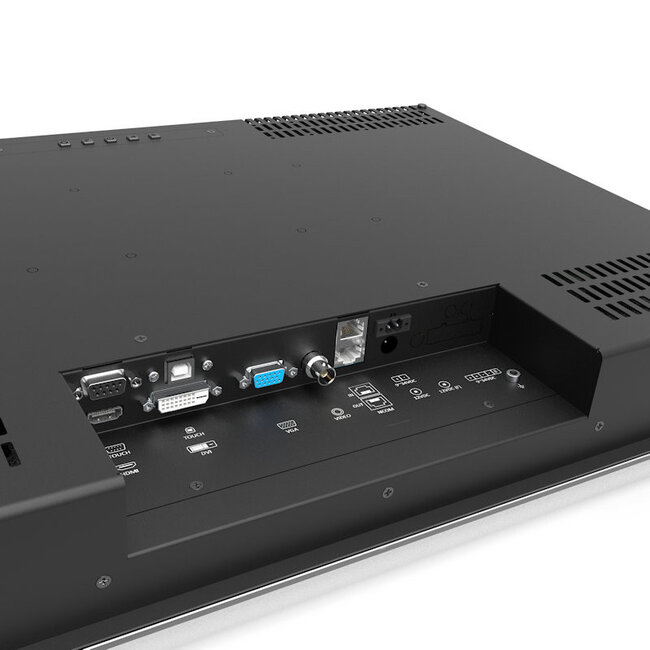

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)

• Dimming Control: Front encoder; supports external and multi-dimming configurations

• Capacitive Switch: Yes, for quick video source selection

• Optional Accessories:

  • Mounting bracket (VESA) 100x100

  • V-Stand for monitors with 100x100 VESA bracket

BROCHURES

• N-line N241KGE Product Sheet
• N-Line N241KGE Product Dimensions
• N-Line User Manual
• Entire N-line front and cutout dimensions
