N-line N241KGE 24,1" Full Glass Panel Mount with High Bright, Multi Touchscreen, 9-36V, Dimming, Optical Bonding and Anti-Glare Glass

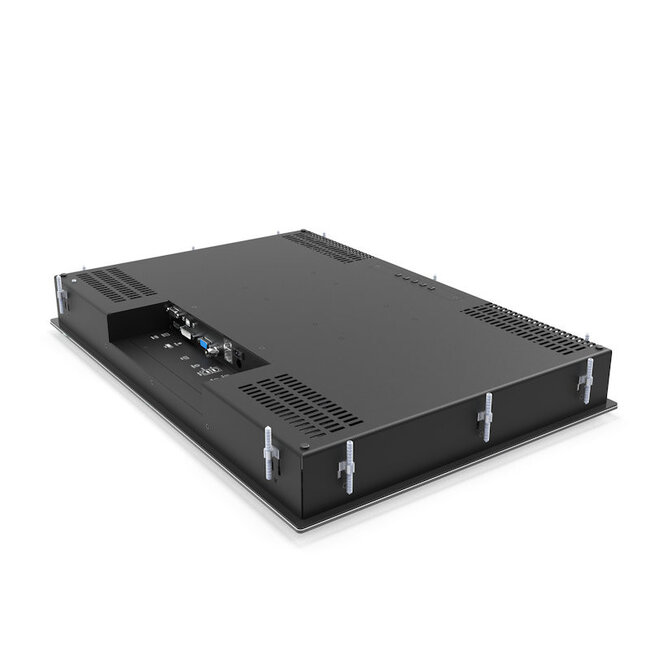

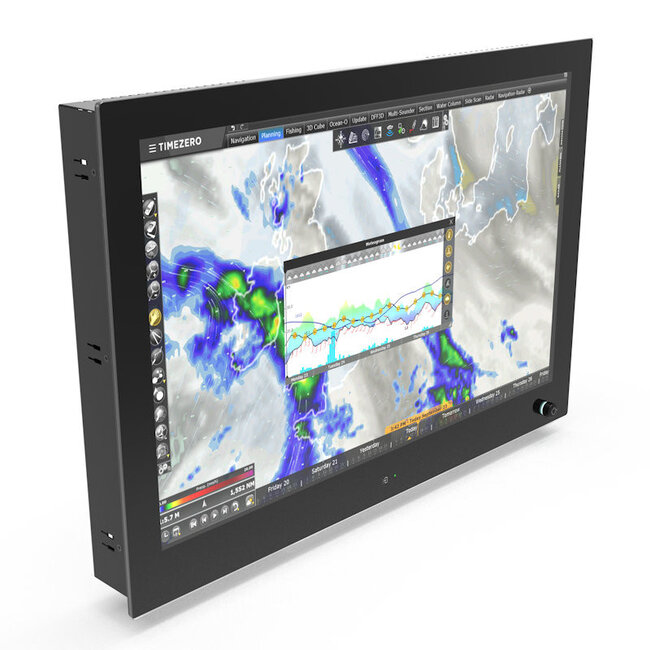

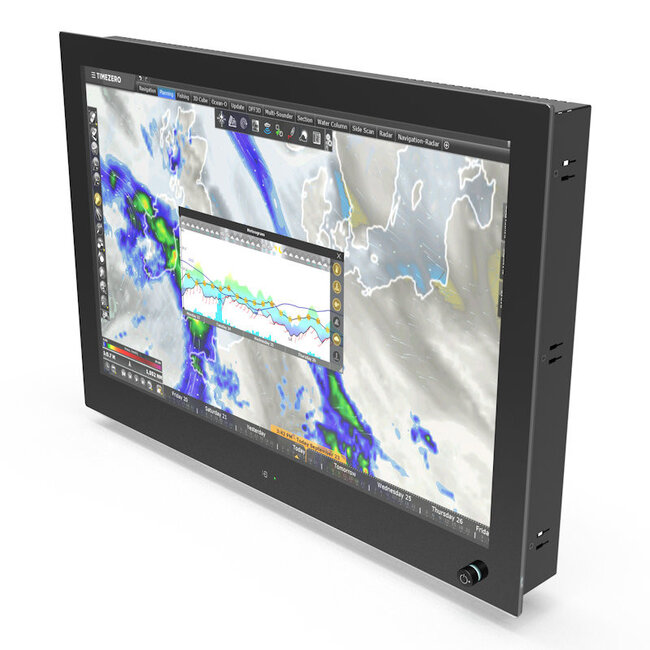

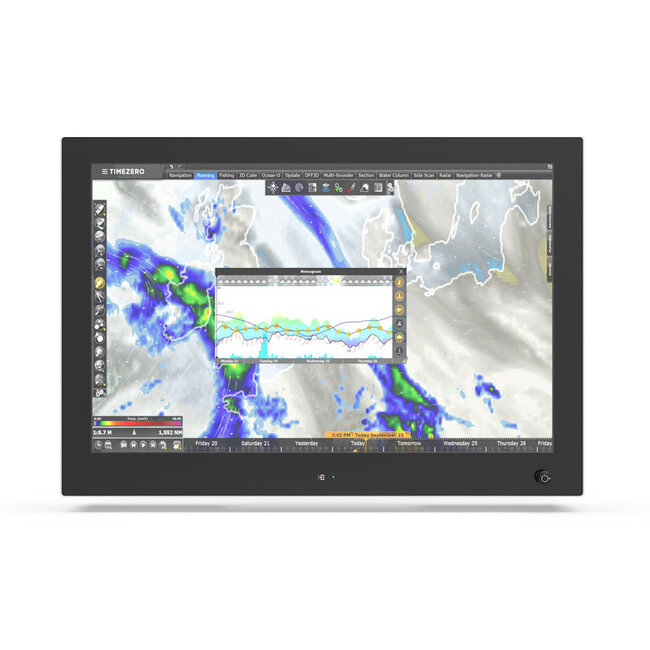

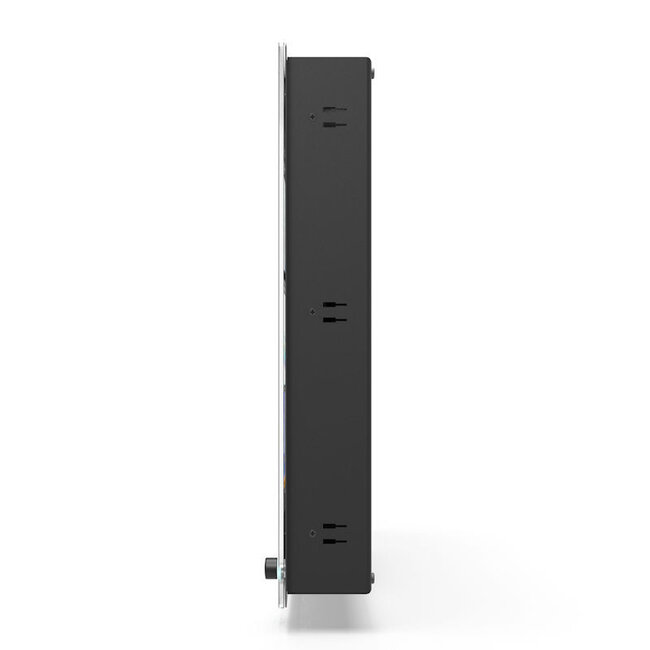

The Nottrot N-line N241KGE is a high bright 24,1” full glass panel mount monitor engineered for optimal visibility and robust performance in marine environments. Designed with a rugged steel housing and sleek waterproof glass front, this display can be flush-mounted into any console, making it an excellent fit for yachts, workboats, and fishing vessels. As part of the versatile N-line series (available in 15” to 27”), it’s ideal for navigation, power management, alarm systems, and CCTV display.

This high bright version delivers up to 1000 nits of brightness, ensuring maximum screen readability even in strong sunlight or high ambient lighting. The KGE model features an integrated front dimming encoder for easy control of brightness, power, and OSD functions. A capacitive switch at the bottom of the monitor allows for convenient video input switching. With its projected capacitive touchscreen and optically bonded anti-glare glass, the N241KGE provides exceptional image clarity and intuitive multi-touch control.

FEATURES

• High bright display (up to 1000 nits) for superior visibility in sunlight

• Waterproof, full glass front for flush-mounted integration

• Rugged steel body built for demanding marine conditions

• Projected capacitive multi-touch touchscreen

• Integrated dimming encoder for power, brightness, and OSD access

• Capacitive switch for fast and simple video input selection (KGE model)

• Optically bonded, anti-glare glass for improved clarity and durability

• Ideal for navigation, CCTV, monitoring, and marine control systems

• Multiple dimming options: front, external, central, or multi-monitor setups

• Available in sizes from 15” to 27”

SPECIFICATIONS

• Brand: Nottrot

• Model: N241KGE

• Screen Size: 24,1”

• Resolution: 1920 x 1200 pixels

• Aspect Ratio: 16:10

• Brightness: 350 nits

• Optional High Brightness: 1000 nits

• Touch Panel: Projected capacitive touchscreen

• Power Input: 9~36VDC, galvanically isolated

• Front Panel Protection: IP65 (front only)

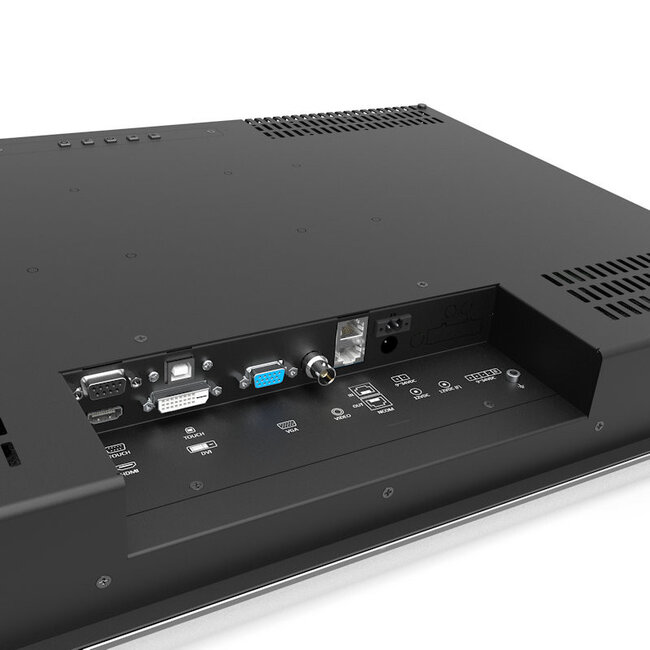

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)

• Dimming Control: Integrated encoder; supports central and multi-dimming setups

• Capacitive Switch: Yes, for video input switching

• Optional Accessories:

  • Mounting bracket (VESA) 100x100

  • V-Stand for monitors with 100 x 100 VESA bracket

BROCHURES

• N-line N241KGE Product Sheet
• N-Line N241KGE Product Dimensions
• N-Line User Manual
• Entire N-line front and cutout dimensions
