N-line N241KGE 24,1" Full Glass Panel Mount with High Bright, Multi Touchscreen, 9–36V, Dimming, Optical Bonding and Anti-Glare Glass – DNV Certified

The Nottrot N-line N241KGE is a high-performance 24,1” full glass panel mount monitor, purpose-built for reliable use in demanding maritime environments. With a rugged steel housing and a sleek, waterproof full glass front, it fits flush into marine consoles, making it ideal for yachts, workboats, and fishing vessels. As part of the N-line series (15”–27”), this model is well-suited for applications such as navigation, monitoring systems, power management, and CCTV.

This high bright version ensures optimal visibility in direct sunlight or brightly lit spaces with up to 1000 nits of brightness. The KGE model features a front dimming encoder that lets users easily manage brightness, power, and the OSD (on-screen display), along with a capacitive switch at the bottom for fast video source selection. Combined with optical bonding and anti-glare glass, the projected capacitive touchscreen delivers sharp visuals and responsive interaction in all lighting conditions. It is also DNV (IEC 60945) certified, ensuring compliance with strict maritime safety and durability standards.

FEATURES

• High bright display (up to 1000 nits) for clear viewing in sunlight

• Full glass waterproof front for flush marine console mounting

• Rugged steel housing for durability at sea

• Projected capacitive multi-touch touchscreen

• Integrated front dimming encoder for brightness, power, and OSD control

• Capacitive switch for quick video input selection

• Optically bonded anti-glare glass for enhanced readability and reduced reflections

• Suitable for navigation, system monitoring, CCTV, and alarm interfaces

• Certified to DNV (IEC 60945) maritime standards

• Flexible dimming options: front, external, central, and multi-display setups

• Available in sizes from 15” to 27”

SPECIFICATIONS

• Brand: Nottrot

• Model: N241KGE

• Screen Size: 24,1”

• Resolution: 1920 x 1200 pixels

• Aspect Ratio: 16:10

• Brightness: 350 nits

• Optional High Brightness: 1000 nits

• Touch Panel: Projected capacitive touchscreen

• Power Input: 9~36VDC, galvanically isolated

• Front Panel Protection: IP65 (front only)

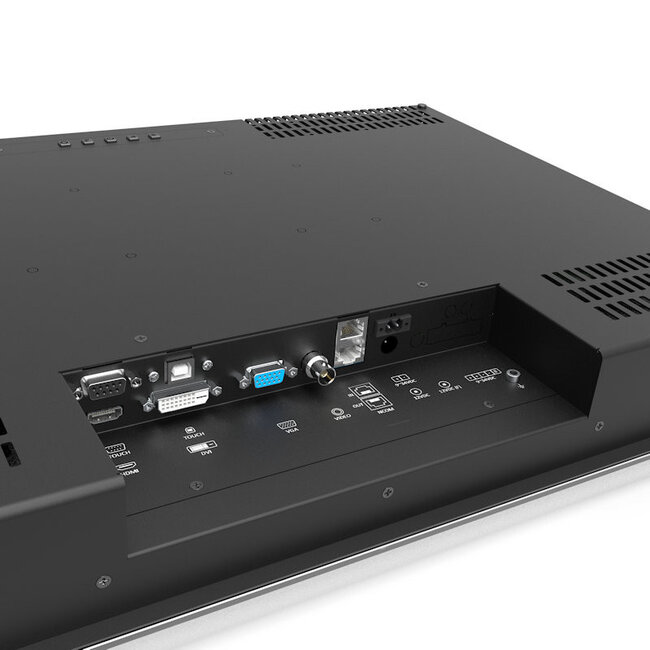

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)

• Dimming Control: Front encoder; supports external and multi-dimming setups

• Capacitive Switch: Yes, for video source selection

• Certification: DNV (IEC 60945)

• Optional Accessories:

  • V-Stand for monitors with 100 x 100 VESA bracket

BROCHURES

• N-line N241KGE - DNV Product Sheet
• N-Line N241KGE - DNV Product Dimensions
• N-Line User Manual
• Entire N-line front and cutout dimensions
