N-line N241KG 24,1" Full Glass Panel Mount with Multi Touchscreen, 9-36V, Dimming, Optical Bonding and Anti-Glare Glass

The Nottrot N-line N241KG is a 24,1” full glass panel mount monitor built for tough marine environments where durability, readability, and user control are essential. Featuring a rugged steel body and a sleek waterproof full glass front, this monitor can be flush-mounted into vessel consoles, making it an ideal choice for yachts, fishing vessels, and workboats. As part of Nottrot’s N-line series (available from 15” to 27”), it’s perfect for displaying navigation data, system monitoring, power management, and CCTV footage.

The KG model comes with an external dimming encoder, allowing users to adjust brightness, power on/off, and navigate the OSD (on-screen display) menu with ease. The screen is built with projected capacitive multi-touch technology and optically bonded anti-glare glass, ensuring accurate touch response and excellent visibility even in challenging lighting conditions.

FEATURES

• Sleek, waterproof full glass front for flush-mounted marine integration

• Heavy-duty steel housing for maximum durability

• Projected capacitive multi-touch touchscreen

• External dimming encoder for intuitive control of brightness, power, and OSD

• Optically bonded anti-glare glass for enhanced screen clarity

• Ideal for navigation, onboard monitoring, power systems, and CCTV

• Supports flexible dimming configurations: external, central, or multi-monitor setups

• Available in screen sizes from 15” to 27”

SPECIFICATIONS

• Brand: Nottrot

• Model: N241KG

• Screen Size: 24,1”

• Resolution: 1920 x 1200 pixels

• Aspect Ratio: 16:10

• Brightness: 350 nits

• Optional High Brightness: 1000 nits

• Touch Panel: Projected capacitive touchscreen

• Power Input: 9~36VDC, galvanically isolated

• Front Panel Protection: IP68 (front only)

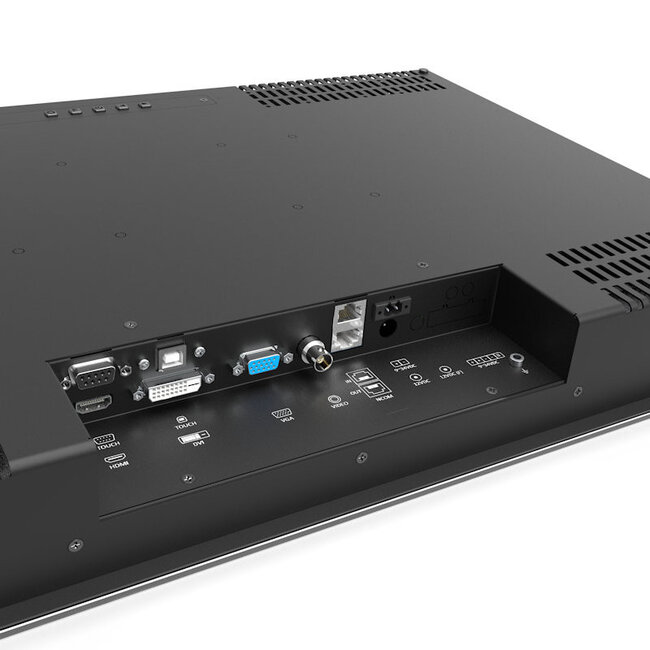

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)

• Dimming Control: External encoder; compatible with multi-dimming setups

• Optional Accessories:

  • Mounting bracket (VESA) 100x100

  • V-Stand for monitors with 100 x 100 VESA bracket

BROCHURES

• N-line N241KG Product Sheet
• N-Line N241KG Product Dimensions
• N-Line User Manual
• Entire N-line front and cutout dimensions
