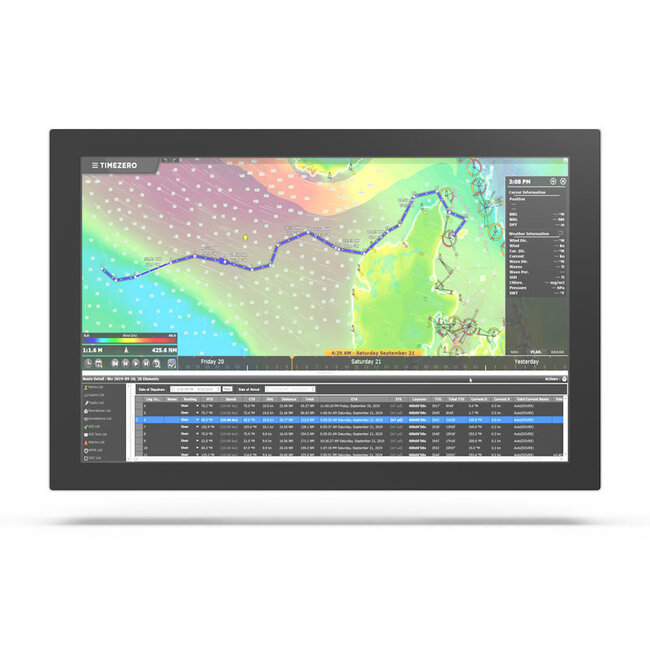

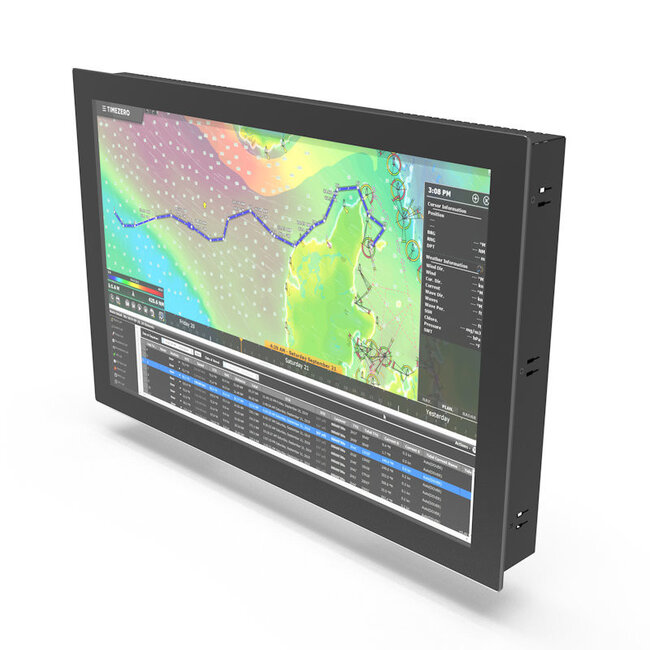

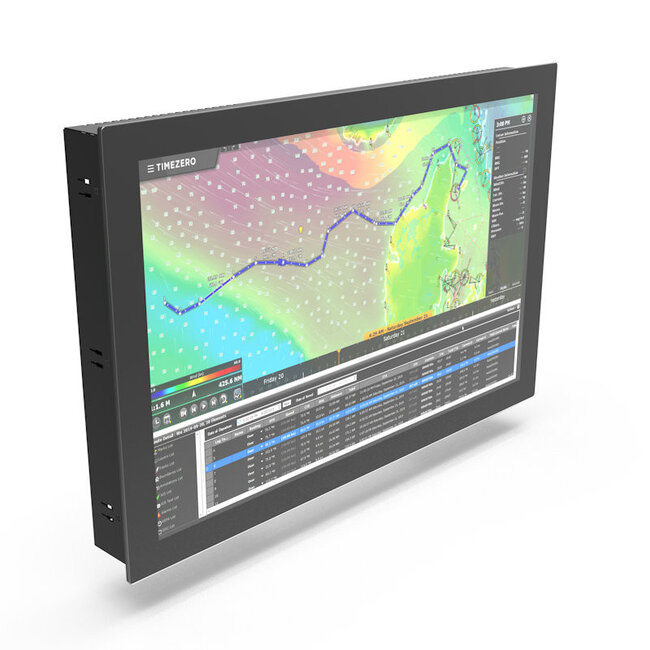

N-line N241KG 24,1" Full Glass Panel Mount with Multi Touchscreen, 9–36V, Dimming, Optical Bonding and Anti-Glare Glass – DNV Certified

The Nottrot N-line N241KG is a 24,1” full glass panel mount monitor designed for professional use in harsh marine conditions. Engineered with a robust steel body and a waterproof glass front, it’s ideal for flush-mounting into navigation consoles on yachts, fishing vessels, and workboats. As part of the N-line series (ranging from 15” to 27”), this monitor excels at delivering clear, reliable visuals for navigation systems, alarm and monitoring displays, power control, and CCTV applications.

The KG model features an external dimming encoder, allowing users to easily adjust brightness, toggle power, and access the on-screen display (OSD). Built with projected capacitive multi-touch technology and optically bonded anti-glare glass, the screen provides excellent clarity and responsive interaction even in high-vibration or high-humidity environments. The unit is DNV (IEC 60945) certified, meeting international maritime safety and performance standards.

FEATURES

• Full glass waterproof front, flush-mountable into marine consoles

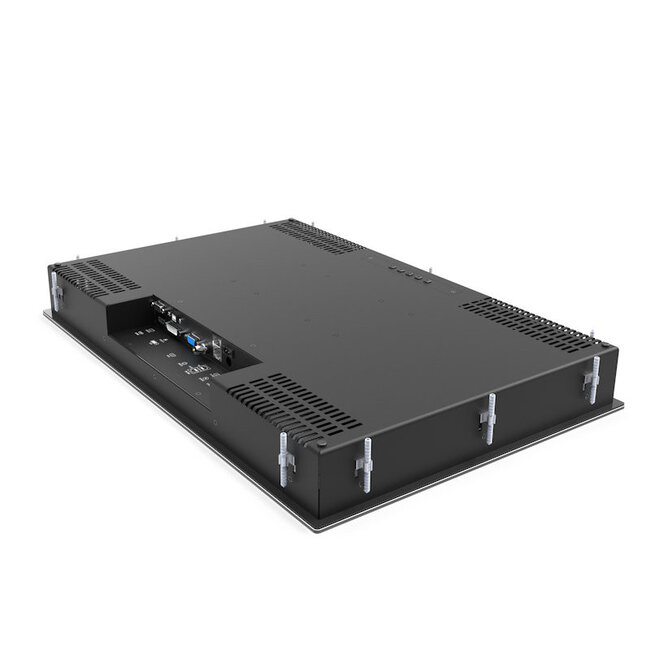

• Durable steel construction for rugged maritime use

• Projected capacitive multi-touch touchscreen

• External dimming encoder for brightness, power, and OSD control

• Optical bonding and anti-glare glass for enhanced clarity and reduced reflections

• Built for navigation, alarm systems, CCTV monitoring, and power control

• DNV (IEC 60945) certified for maritime compliance

• Multiple dimming configurations supported: external, central, or multi-display setups

• Available screen sizes from 15” to 27”

SPECIFICATIONS

• Brand: Nottrot

• Model: N241KG

• Screen Size: 24,1”

• Resolution: 1920 x 1200 pixels

• Aspect Ratio: 16:10

• Brightness: 350 nits

• Optional High Brightness: 1000 nits

• Touch Panel: Projected capacitive touchscreen

• Power Input: 9~36VDC, galvanically isolated

• Front Panel Protection: IP68 (front only)

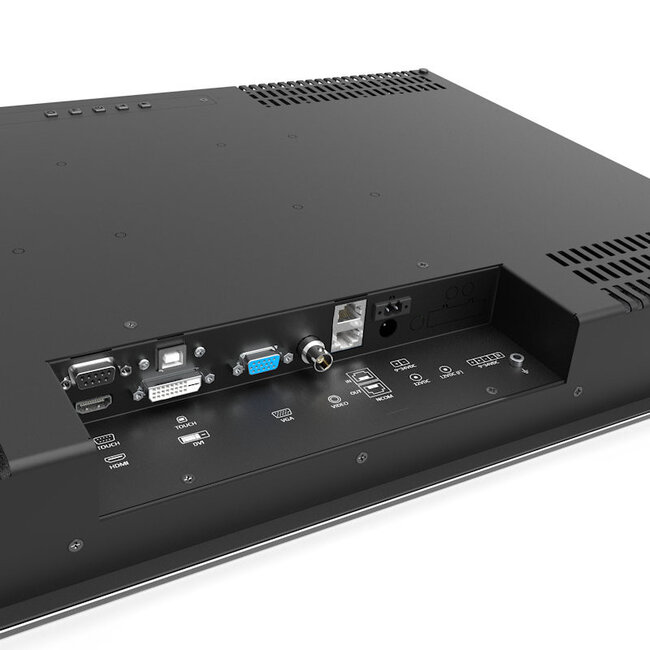

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)

• Dimming Control: External encoder; supports central and multi-dimming setups

• Certification: DNV (IEC 60945)

• Optional Accessories:

  • V-Stand for monitors with 100 x 100 VESA bracket

BROCHURES

• N-line N241KG - DNV Product Sheet
• N-Line N241KG - DNV Product Dimensions
• N-Line User Manual
• Entire N-line front and cutout dimensions
