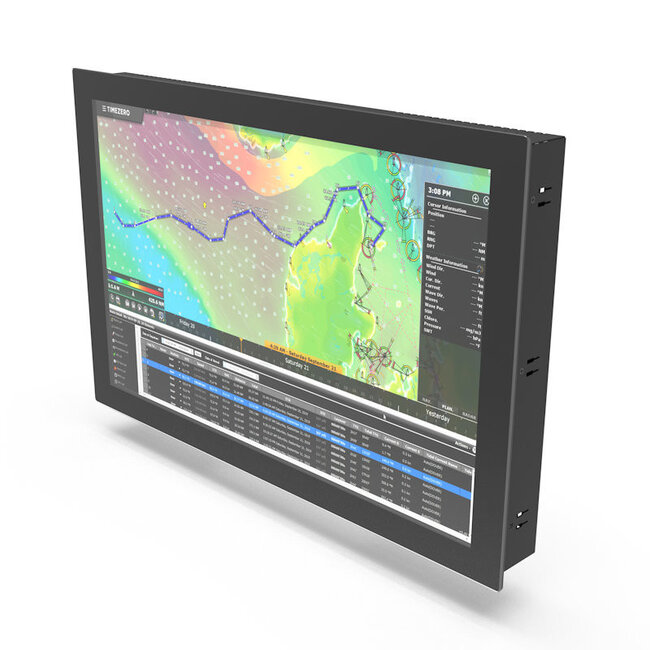

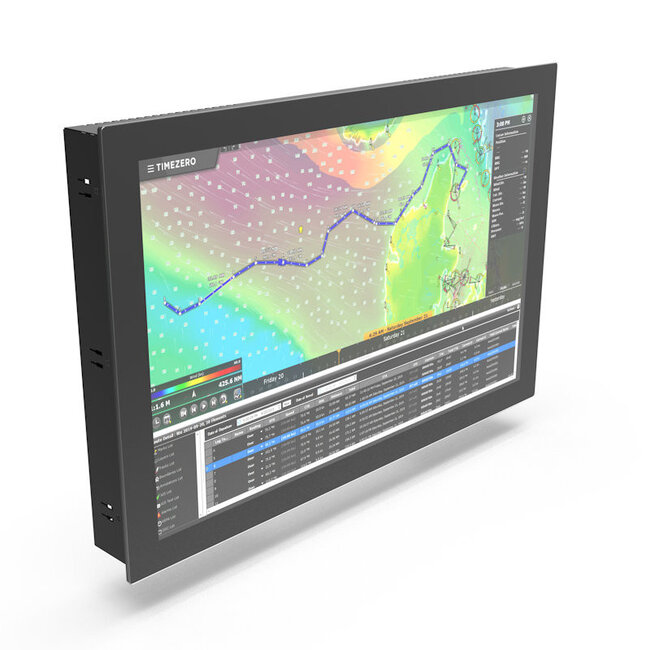

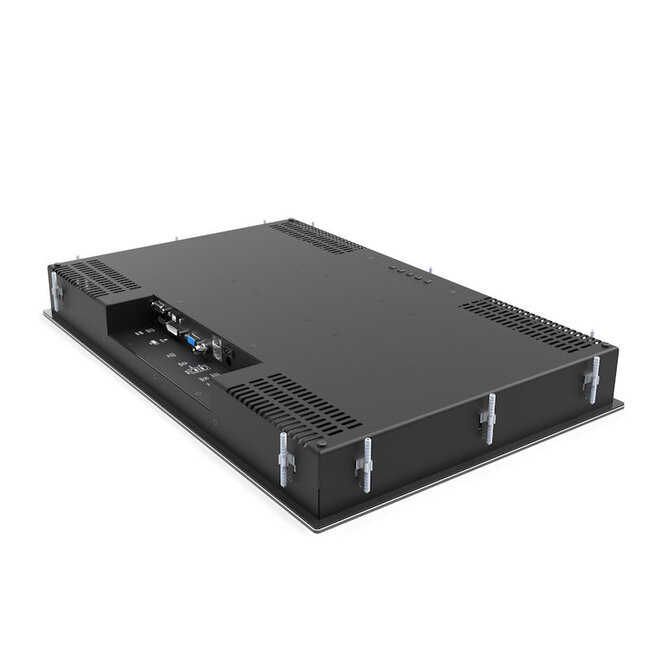

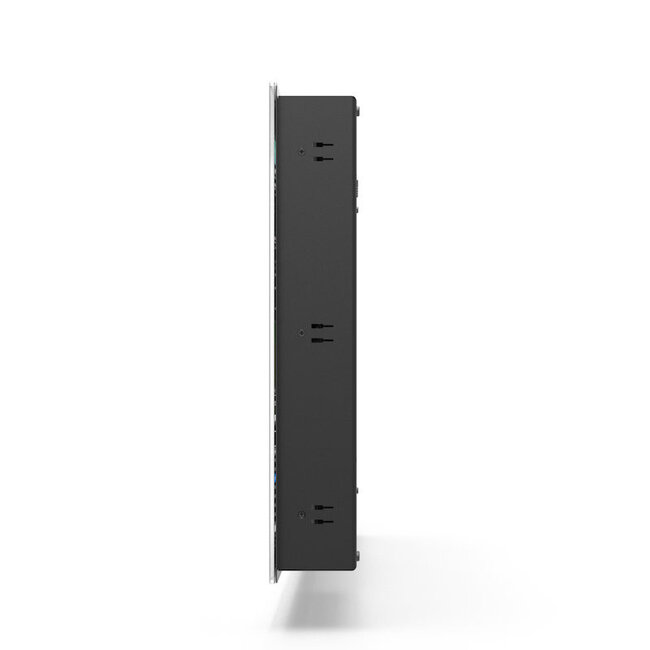

N-line N241KG 24,1" Full Glass Panel Mount with High Bright, Multi Touchscreen, 9-36V, Dimming, Optical Bonding and Anti-Glare Glass

The Nottrot N-line N241KG is a high bright 24,1” full glass panel mount monitor designed for high visibility, rugged performance, and seamless integration in marine environments. Built with a strong steel frame and waterproof full glass front, it’s ideal for flush mounting on yachts, workboats, and fishing vessels. As part of the N-line series (available in sizes from 15” to 27”), this display is perfect for marine applications including navigation, CCTV, power management, and alarm monitoring.

This high bright version offers up to 1000 nits of brightness, ensuring crystal-clear visibility even under direct sunlight or high ambient light. The KG model features an external dimming encoder that provides smooth control of brightness, power, and OSD (on-screen display) functions. With a projected capacitive multi-touch touchscreen and optically bonded anti-glare glass, the N241KG ensures precise touch response and outstanding clarity in any lighting conditions.

FEATURES

• High bright display (up to 1000 nits) for optimal visibility in sunlight

• Waterproof, full glass front for flush console mounting

• Marine-grade steel housing built for durability

• Projected capacitive multi-touch touchscreen

• External dimming encoder for intuitive control of brightness, power, and OSD

• Optically bonded anti-glare glass for improved screen clarity

• Suitable for navigation, monitoring systems, CCTV, and marine operations

• Supports flexible dimming setups: external, central, or multi-display

• Available in sizes from 15” to 27”

SPECIFICATIONS

• Brand: Nottrot

• Model: N241KG

• Screen Size: 24,1”

• Resolution: 1920 x 1200 pixels

• Aspect Ratio: 16:10

• Brightness: 350 nits

• Optional High Brightness: 1000 nits

• Touch Panel: Projected capacitive touchscreen

• Power Input: 9~36VDC, galvanically isolated

• Front Panel Protection: IP68 (front only)

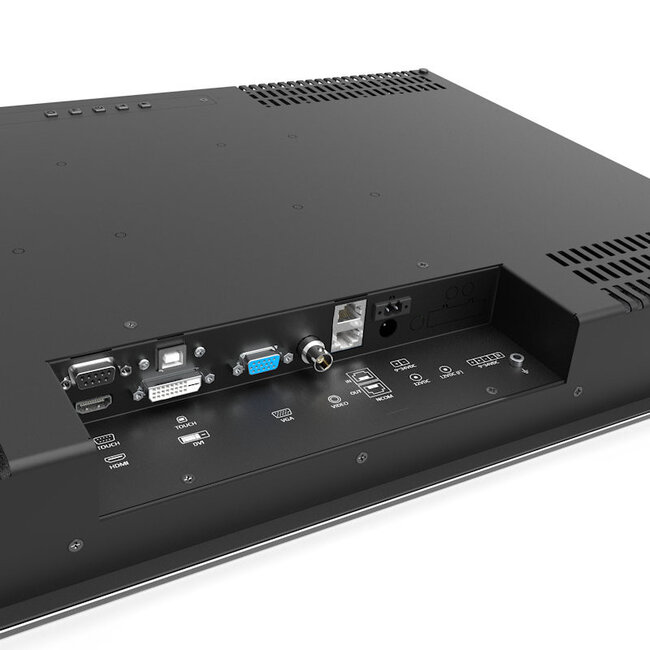

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)

• Dimming Control: External encoder; supports multi-dimming setups

• Optional Accessories:

  • Mounting bracket (VESA) 100x100

  • V-Stand for monitors with 100 x 100 VESA bracket

BROCHURES

• N-line N241KG Product Sheet
• N-Line N241KG Product Dimensions
• N-Line User Manual
• Entire N-line front and cutout dimensions
