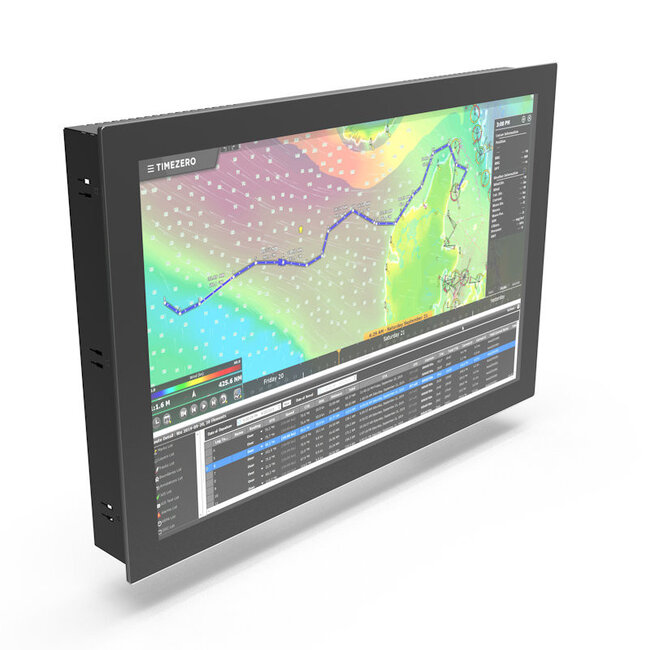

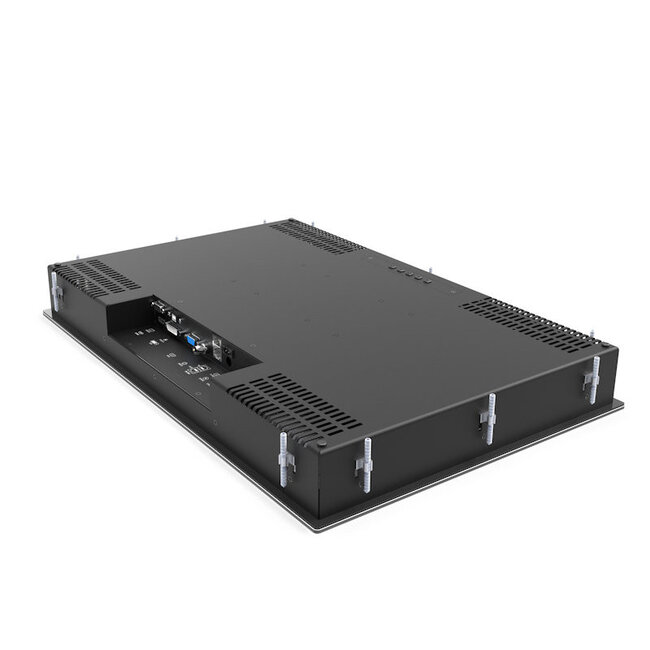

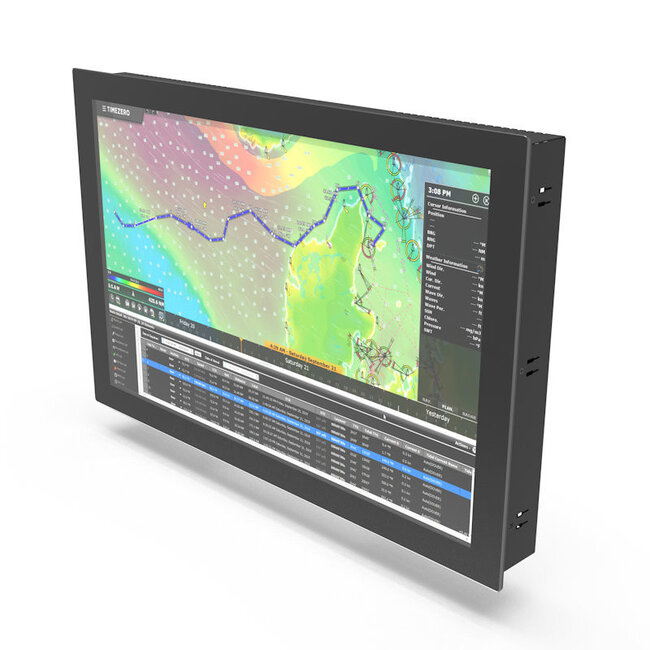

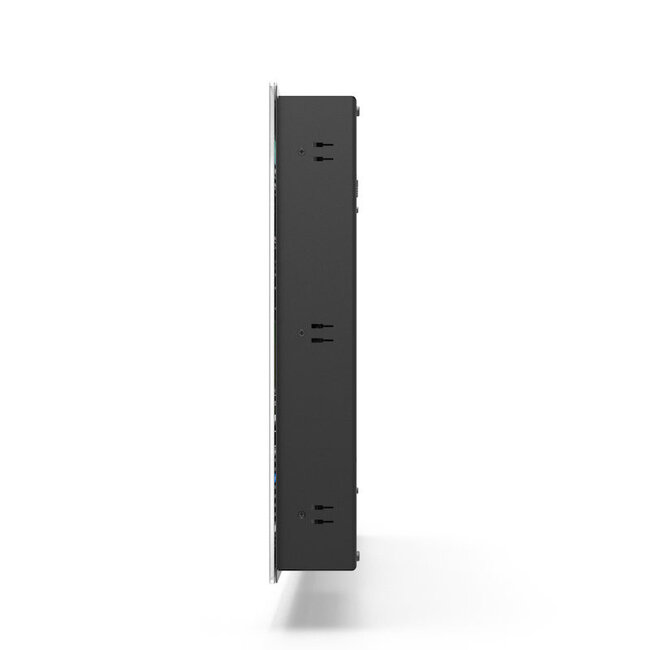

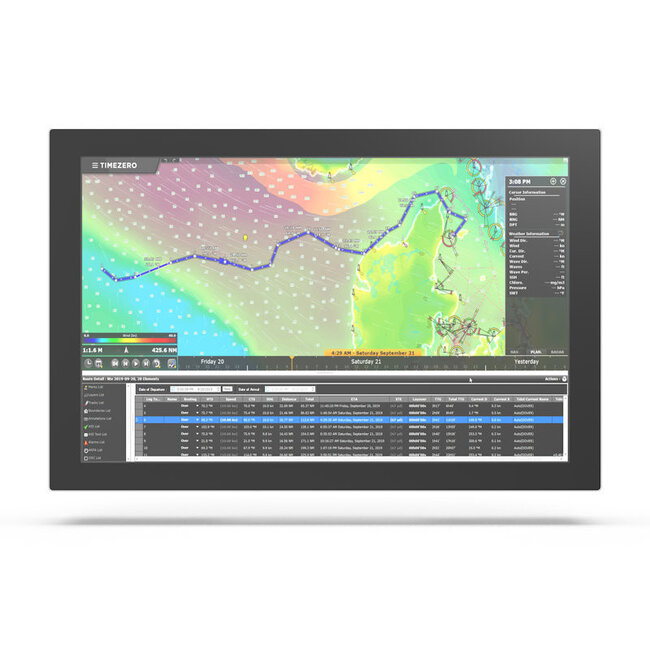

N-line N241KG 24,1" Full Glass Panel Mount with High Bright, Multi Touchscreen, 9–36V, Dimming, Optical Bonding and Anti-Glare Glass – DNV Certified

The Nottrot N-line N241KG is a 24,1” full glass panel mount monitor built for clarity and durability in professional maritime settings. Featuring a rugged steel body and a waterproof full glass front, it is purpose-built for flush mounting into the consoles of yachts, fishing vessels, and workboats. Designed for critical marine applications like navigation, CCTV monitoring, power control, and alarm systems, this unit delivers high-performance visual output in all conditions.

This high bright version ensures maximum screen visibility in direct sunlight or bright environments, reaching up to 1000 nits of brightness. The KG model includes an external dimming encoder, giving users direct control over brightness, power, and OSD (on-screen display) settings. With optically bonded anti-glare glass and a projected capacitive multi-touch touchscreen, the monitor combines seamless interactivity with sharp image clarity. Certified to DNV (IEC 60945) standards, it meets the stringent demands of marine operation environments.

FEATURES

• High bright display (up to 1000 nits) for readability in full sunlight

• Flush-mount, waterproof full glass front

• Sturdy steel housing designed for marine durability

• Projected capacitive multi-touch touchscreen

• External dimming encoder for brightness, power, and OSD control

• Optical bonding and anti-glare glass for superior visibility

• Ideal for marine navigation, alarm monitoring, CCTV, and vessel system control

• DNV (IEC 60945) certified for marine compliance

• Supports flexible dimming setups: external, central, or multi-monitor

• Available screen sizes from 15” to 27”

SPECIFICATIONS

• Brand: Nottrot

• Model: N241KG

• Screen Size: 24,1”

• Resolution: 1920 x 1200 pixels

• Aspect Ratio: 16:10

• Brightness: 350 nits

• Optional High Brightness: 1000 nits

• Touch Panel: Projected capacitive touchscreen

• Power Input: 9~36VDC, galvanically isolated

• Front Panel Protection: IP68 (front only)

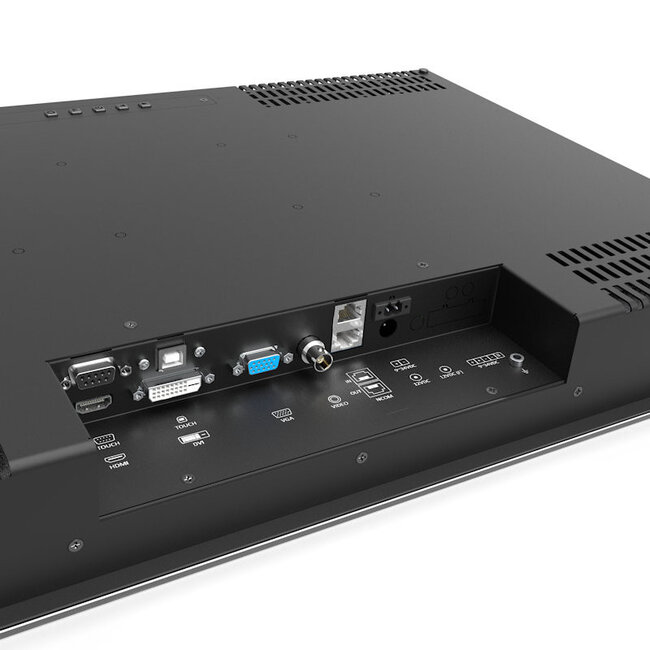

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)

• Dimming Control: External encoder; compatible with central/multi dimming

• Certification: DNV (IEC 60945)

• Optional Accessories:

  • V-Stand for monitors with 100 x 100 VESA bracket

BROCHURES

• N-line N241KG - DNV Product Sheet
• N-Line N241KG - DNV Product Dimensions
• N-Line User Manual
• Entire N-line front and cutout dimensions
