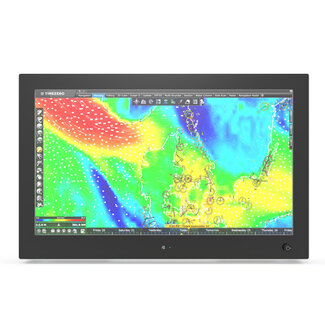

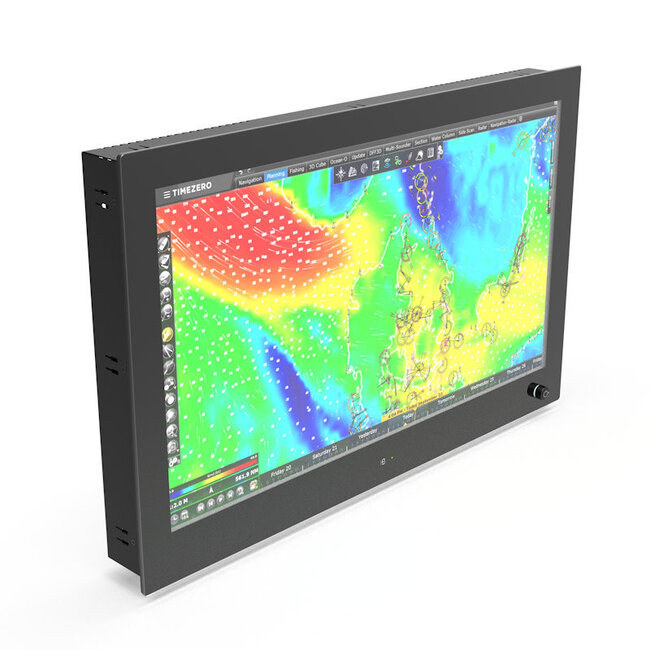

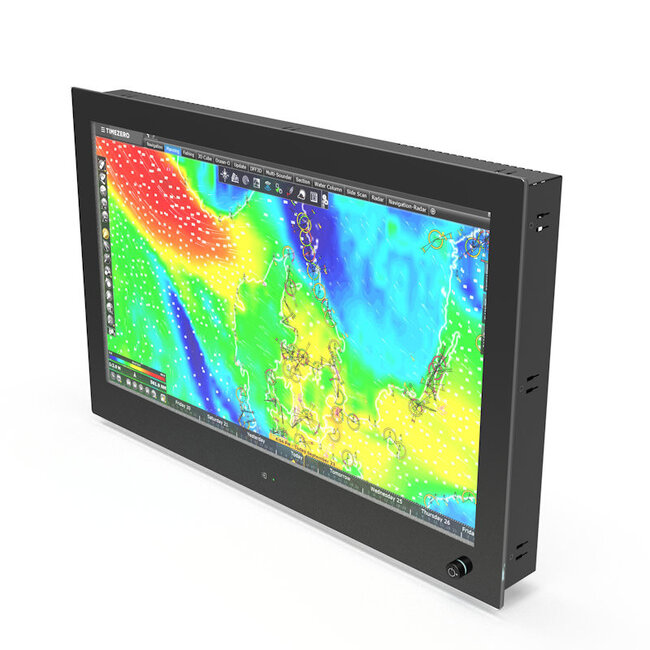

N-line N240KGE 24" Full Glass Panel Mount with Multi Touchscreen, 9-36V, Dimming, Optical Bonding and Anti-Glare Glass

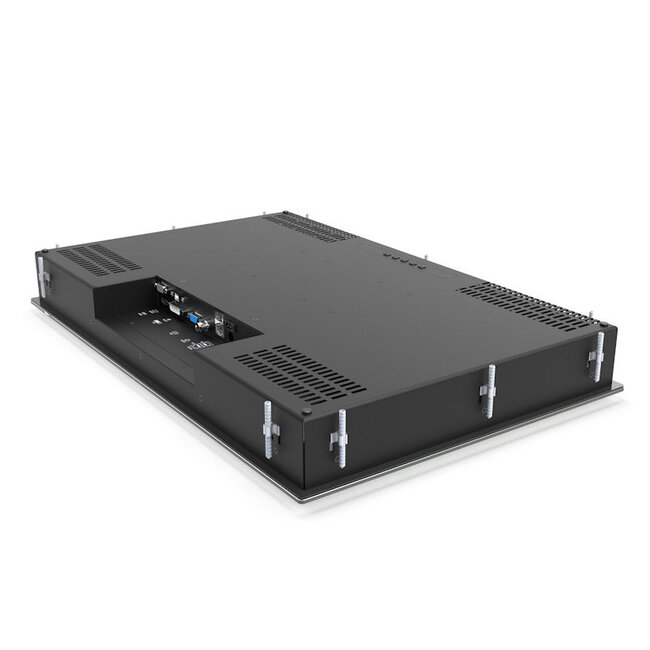

The Nottrot N-line N240KGE is a 24” full glass panel mount monitor designed for high reliability, durability, and sleek integration in demanding marine environments. With a robust steel body and a waterproof full glass front, this monitor is built for flush mounting into vessel consoles, making it ideal for yachts, workboats, and fishing vessels. As part of the N-line series (available in sizes from 15” to 27”), it excels in displaying navigation data, alarm and monitoring systems, power management, and CCTV footage.

Equipped with a front-mounted dimming encoder, the N240KGE allows easy control of brightness, power functions, and the OSD (on-screen display) menu. The KGE model also includes a capacitive switch at the bottom of the screen for seamless video input switching. With a projected capacitive touchscreen and optically bonded anti-glare glass, this monitor provides crystal-clear visuals and responsive multi-touch functionality in a wide range of lighting conditions.

FEATURES

• Sleek full glass front with flush panel waterproof integration

• Rugged steel housing designed for harsh marine environments

• Projected capacitive multi-touch touchscreen

• Integrated front dimming encoder for brightness, OSD, and power control

• Capacitive switch for quick video input selection (KGE model)

• Anti-glare and optically bonded glass for improved screen readability

• Ideal for navigation, CCTV, alarms, and onboard system management

• Flexible dimming configurations: front, external, central, or multi-display setups

• Available in screen sizes from 15” to 27”

SPECIFICATIONS

• Brand: Nottrot

• Model: N240KGE

• Screen Size: 24”

• Resolution: 1920 x 1080 pixels

• Aspect Ratio: 16:9

• Brightness: 300 nits

• Optional High Brightness: 1000 nits

• Touch Panel: Projected capacitive touchscreen

• Power Input: 9~36VDC, galvanically isolated

• Front Panel Protection: IP65 (front only)

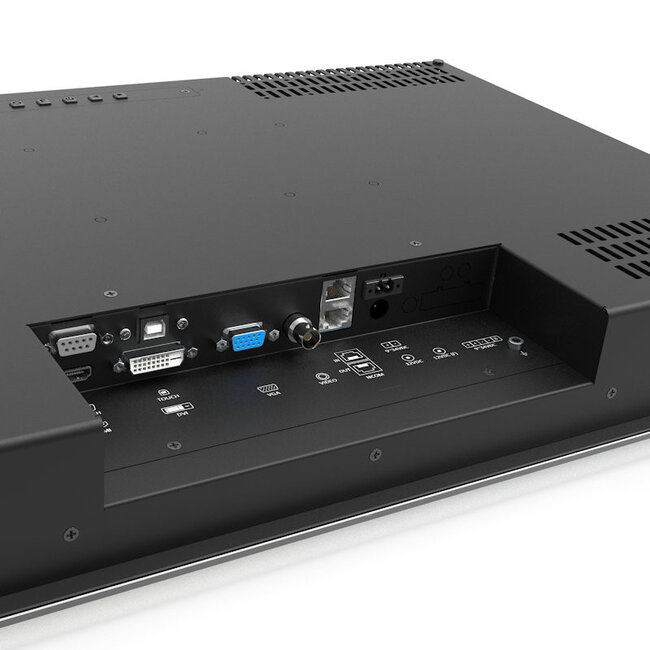

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)

• Dimming Control: Integrated encoder; supports external and multi-dimming configurations

• Capacitive Switch: Yes, for video source selection

• Optional Accessories:

  • Mounting bracket (VESA) 100x100

  • V-Stand for monitors with 100x100 VESA bracket

BROCHURES

• N-line N240KGE Product Sheet
• N-Line N240KGE Product Dimensions
• N-Line User Manual
• Entire N-line front and cutout dimensions
