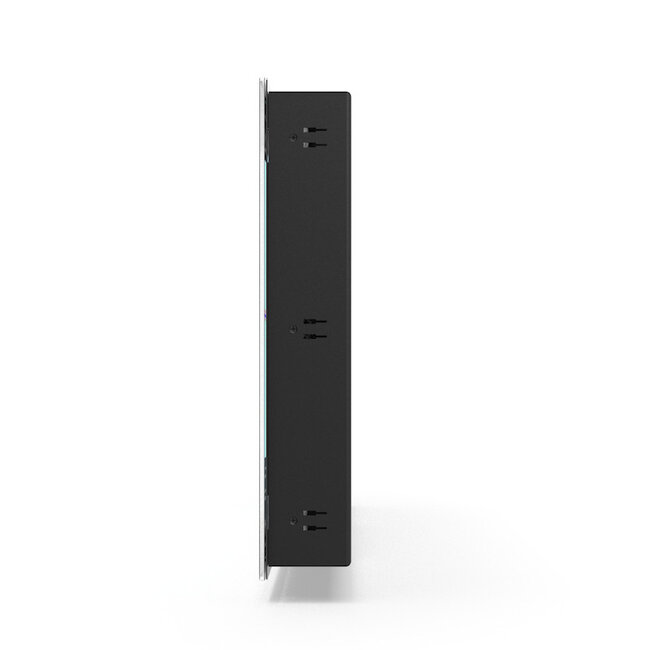

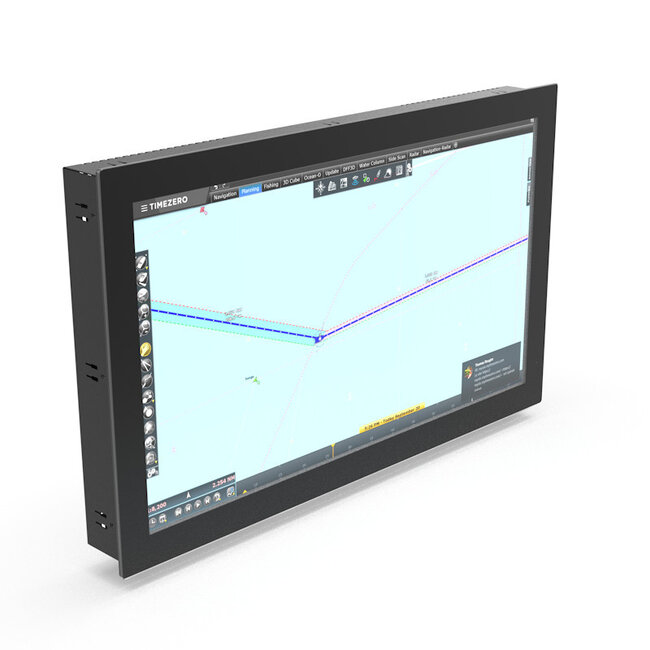

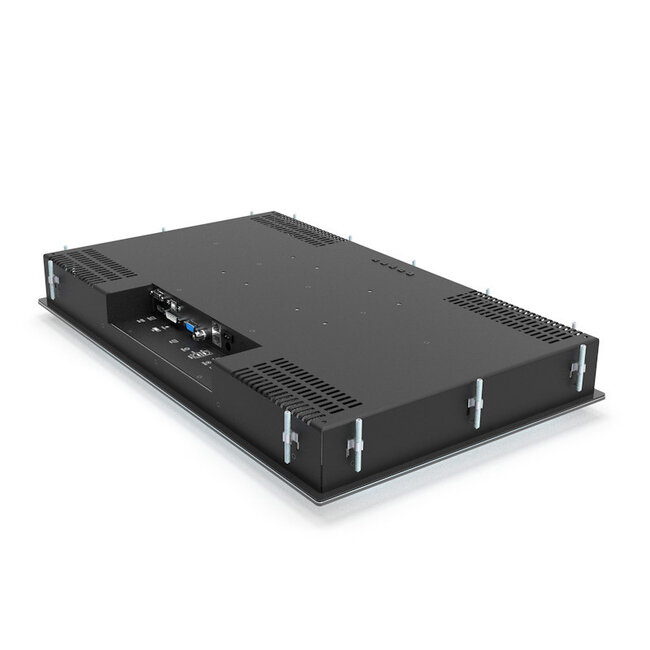

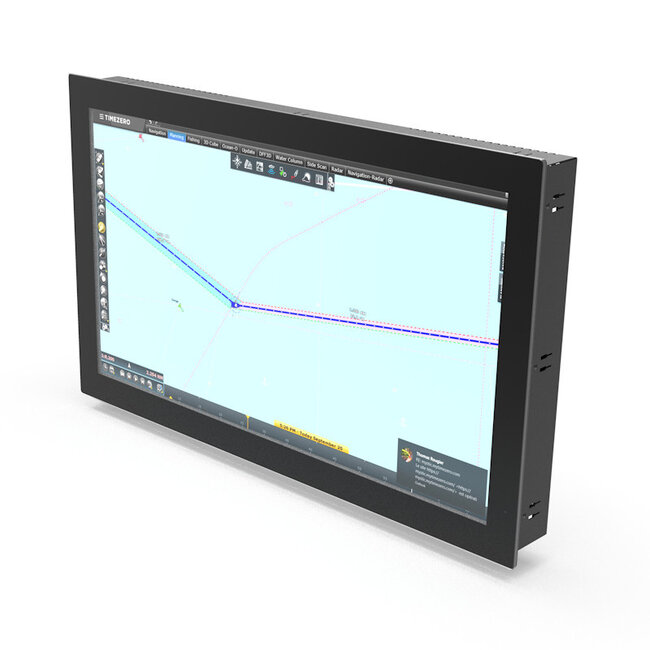

N-line N240KG 24" Full Glass Panel Mount with Multi Touchscreen, 9-36V, Dimming, Optical Bonding and Anti-Glare Glass

The Nottrot N-line N240KG is a 24” full glass panel mount monitor built for high performance and durability in challenging marine environments. With a robust steel body and waterproof full glass front, this display is designed for flush mounting into consoles aboard yachts, workboats, and fishing vessels. Part of the Nottrot N-line series (available from 15” to 27”), it provides a sleek and reliable interface for navigation systems, CCTV, alarms, and power management.

The KG model comes equipped with an external dimming encoder, giving users precise control over brightness, power, and the OSD (on-screen display). The projected capacitive touchscreen allows for fluid multi-touch interaction, while the optically bonded anti-glare glass ensures clarity even in brightly lit environments. With flexible dimming options and high-quality marine-grade construction, the N240KG is a versatile solution for a variety of vessel applications.

FEATURES

• Flush-mounted full glass front with waterproof design

• Durable steel housing built for rugged marine environments

• Projected capacitive multi-touch touchscreen

• External dimming encoder for brightness, power, and OSD menu access

• Optically bonded and anti-glare glass for enhanced visibility

• Ideal for navigation, CCTV, alarm monitoring, and onboard control systems

• Supports flexible dimming setups: external, central, or multi-monitor

• Available in screen sizes from 15” to 27”

SPECIFICATIONS

• Brand: Nottrot

• Model: N240KG

• Screen Size: 24”

• Resolution: 1920 x 1080 pixels

• Aspect Ratio: 16:9

• Brightness: 300 nits

• Optional High Brightness: 1000 nits

• Touch Panel: Projected capacitive touchscreen

• Power Input: 9~36VDC, galvanically isolated

• Front Panel Protection: IP68 (front only)

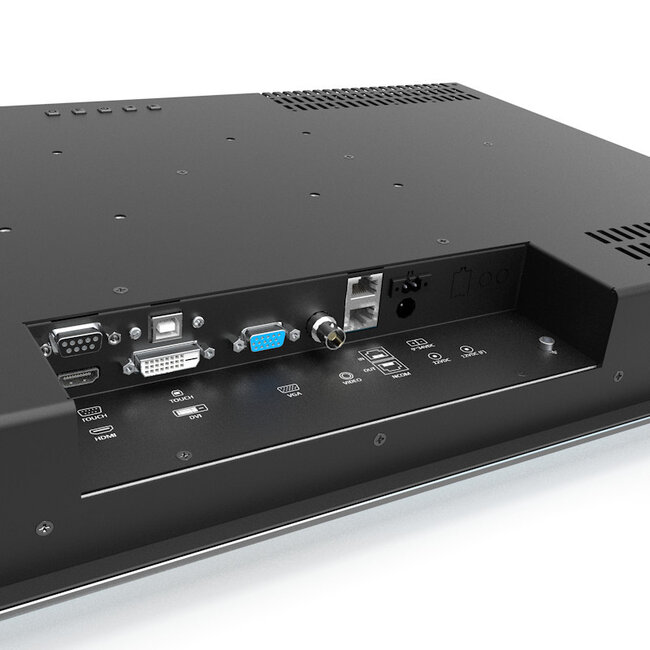

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)

• Dimming Control: External encoder; compatible with multi-dimming configurations

• Optional Accessories:

  • Mounting bracket (VESA) 100x100

  • V-Stand for monitors with 100x100 VESA bracket
