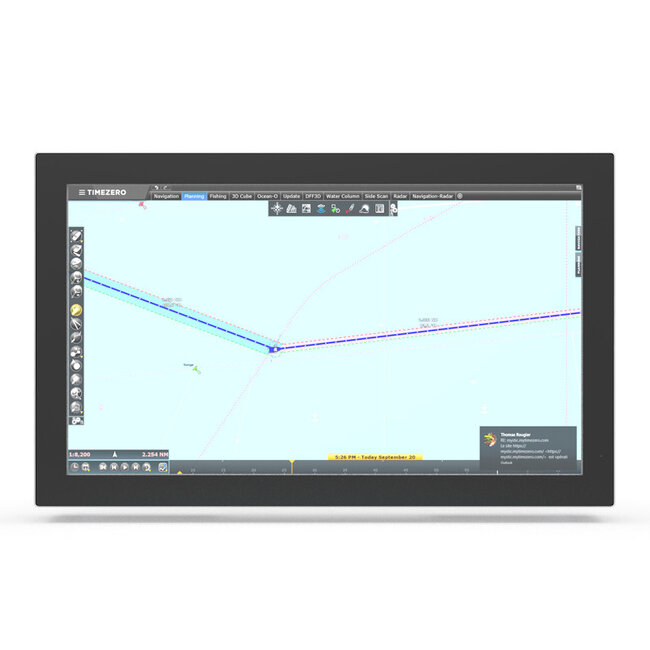

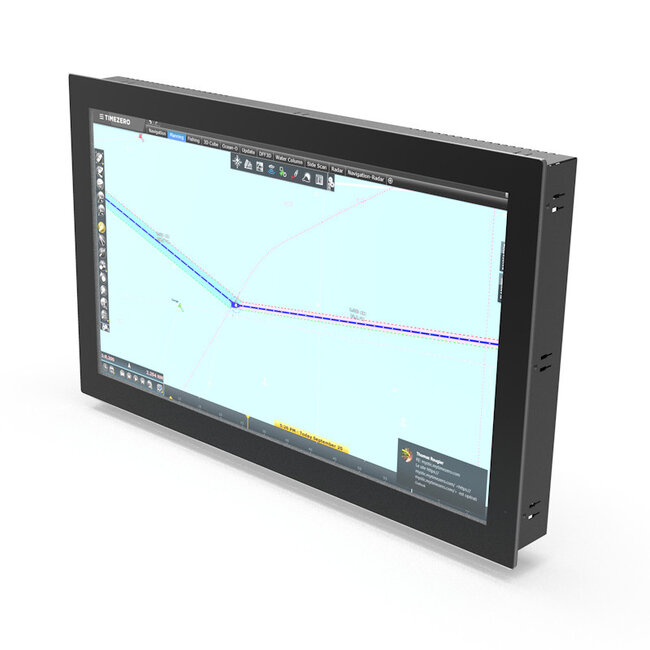

N-line N240KG 24" Full Glass Panel Mount with Multi Touchscreen, 9-36V, Dimming, Optical Bonding and Anti-Glare Glass – DNV Certified

The Nottrot N-line N240KG is a 24” full glass panel mount monitor engineered for precision, durability, and performance in marine environments. With a rugged steel housing and waterproof full glass front, this model is built for flush console mounting on yachts, workboats, and fishing vessels. As part of the N-line series (available in 15” to 27”), it is perfectly suited for navigation, power monitoring, alarm systems, and CCTV display applications.

The KG model comes equipped with an external dimming encoder, allowing users to easily control brightness, power, and navigate the OSD (on-screen display). With a projected capacitive multi-touch screen, the monitor delivers accurate and smooth touch functionality. Its optically bonded anti-glare glass ensures excellent screen clarity even in high-glare environments. The N240KG is DNV (IEC 60945) certified, meeting strict maritime standards for reliable onboard operation.

FEATURES

• Sleek waterproof full glass front for flush console integration

• Steel body built for rugged maritime use

• Projected capacitive multi-touch touchscreen

• External dimming encoder for brightness, power, and OSD menu access

• Optically bonded anti-glare glass for enhanced readability

• Ideal for navigation, alarm monitoring, CCTV, and onboard systems

• DNV (IEC 60945) certified for professional marine environments

• Supports multiple dimming setups: external, central, or multi-display

• Available in screen sizes from 15” to 27”

SPECIFICATIONS

• Brand: Nottrot

• Model: N240KG

• Screen Size: 24”

• Resolution: 1920 x 1080 pixels

• Aspect Ratio: 16:9

• Brightness: 300 nits

• Optional High Brightness: 1000 nits

• Touch Panel: Projected capacitive touchscreen

• Power Input: 9~36VDC, galvanically isolated

• Front Panel Protection: IP68 (front only)

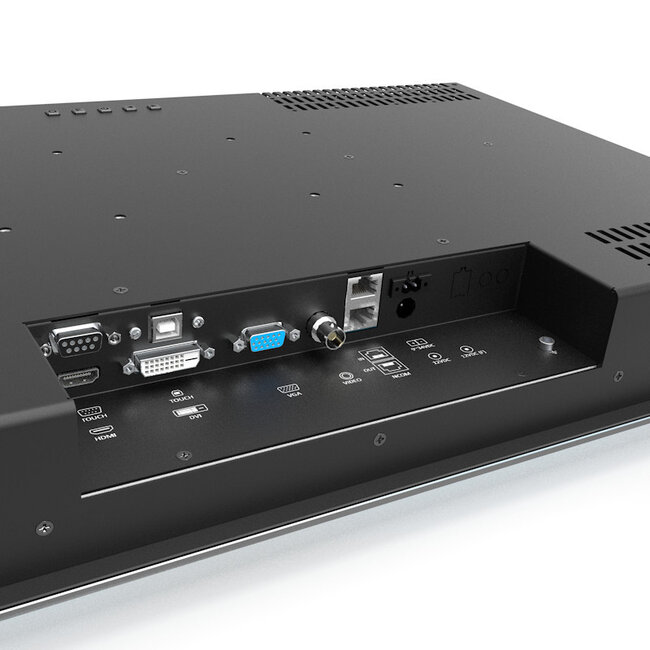

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)

• Dimming Control: External encoder; supports central and multi-dimming options

• Certification: DNV (IEC 60945)

• Optional Accessories:

  • V-Stand for monitors with 100 x 100 VESA bracket

BROCHURES

• N-line N240KG - DNV Product Sheet
• N-Line N240KG - DNV Product Dimensions
• N-Line User Manual
• Entire N-line front and cutout dimensions
