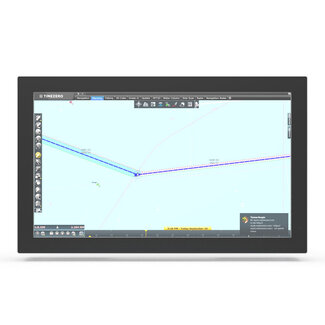

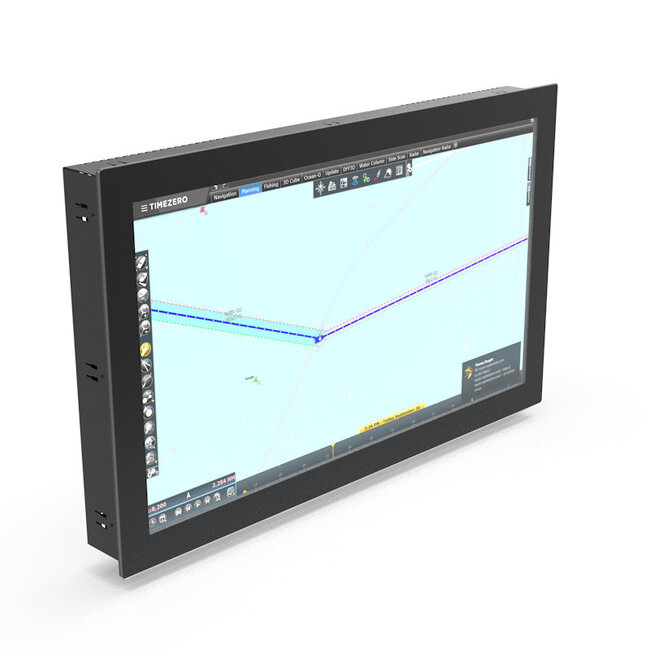

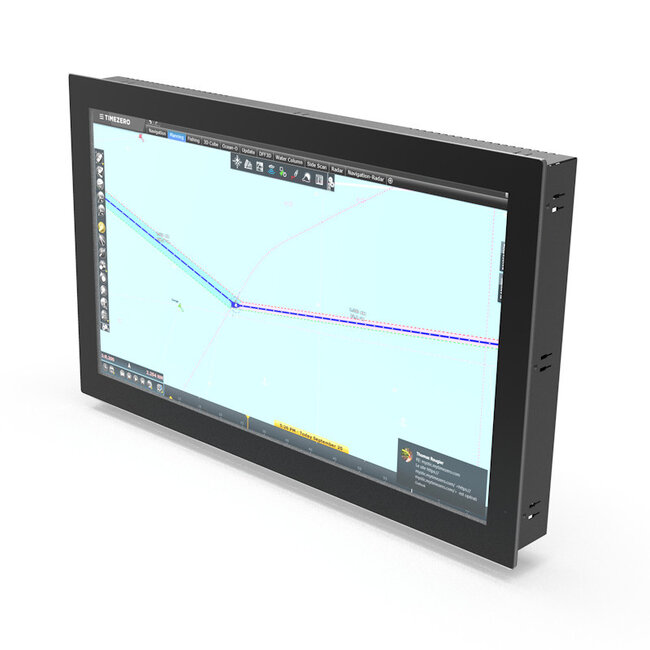

N-line N240KG 24" Full Glass Panel Mount with High Bright, Multi Touchscreen, 9-36V, Dimming, Optical Bonding and Anti-Glare Glass

The Nottrot N-line N240KG is a high bright 24” full glass panel mount monitor tailored for high-visibility and robust performance in marine environments. Designed with a rugged steel body and waterproof full glass front, it is perfect for flush console integration on yachts, workboats, and fishing vessels. As part of the N-line series (available from 15” to 27”), it’s ideal for displaying navigation data, onboard monitoring, power management, and CCTV feeds.

The high bright version delivers up to 1000 nits of brightness, ensuring the display remains clearly visible even in direct sunlight or high-glare surroundings. The KG model includes an external dimming encoder to control brightness, power, and access the OSD (on-screen display) menu. With a projected capacitive multi-touch screen and optically bonded anti-glare glass, the N240KG provides sharp, reliable performance with intuitive user interaction in demanding maritime conditions.

FEATURES

• High bright display (up to 1000 nits) for superior readability in sunlight

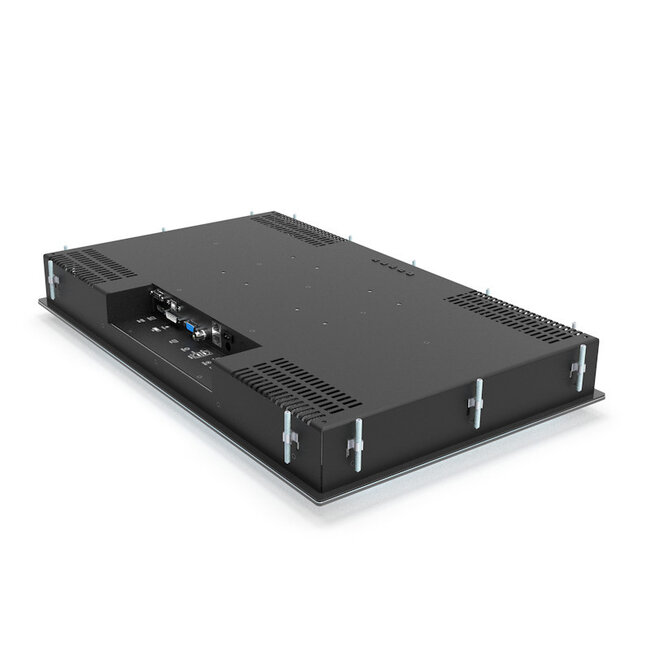

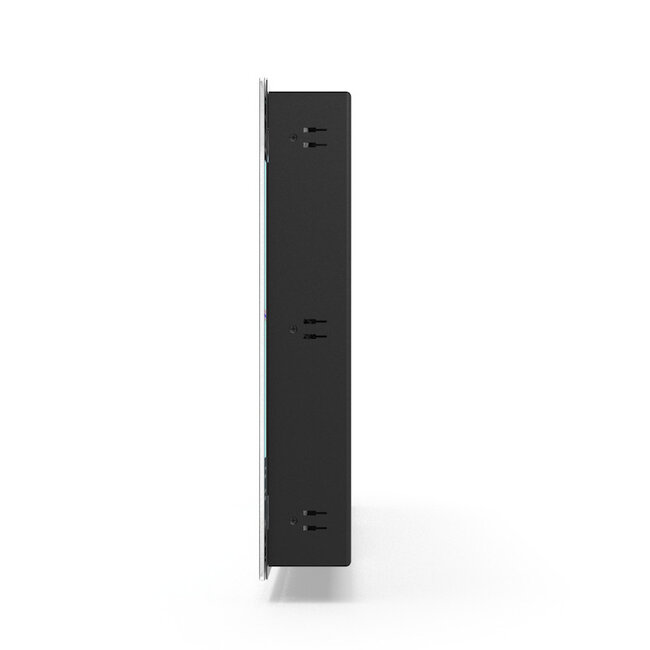

• Sleek full glass front for waterproof, flush console mounting

• Marine-grade steel housing for long-lasting durability

• Projected capacitive multi-touch touchscreen

• External dimming encoder for easy control of brightness, power, and OSD

• Optically bonded and anti-glare glass for enhanced clarity

• Designed for marine applications such as navigation, CCTV, and monitoring

• Flexible dimming support: external, central, or multi-display setups

• Available in screen sizes from 15” to 27”

SPECIFICATIONS

• Brand: Nottrot

• Model: N240KG

• Screen Size: 24”

• Resolution: 1920 x 1080 pixels

• Aspect Ratio: 16:9

• Brightness: 300 nits

• Optional High Brightness: 1000 nits

• Touch Panel: Projected capacitive touchscreen

• Power Input: 9~36VDC, galvanically isolated

• Front Panel Protection: IP68 (front only)

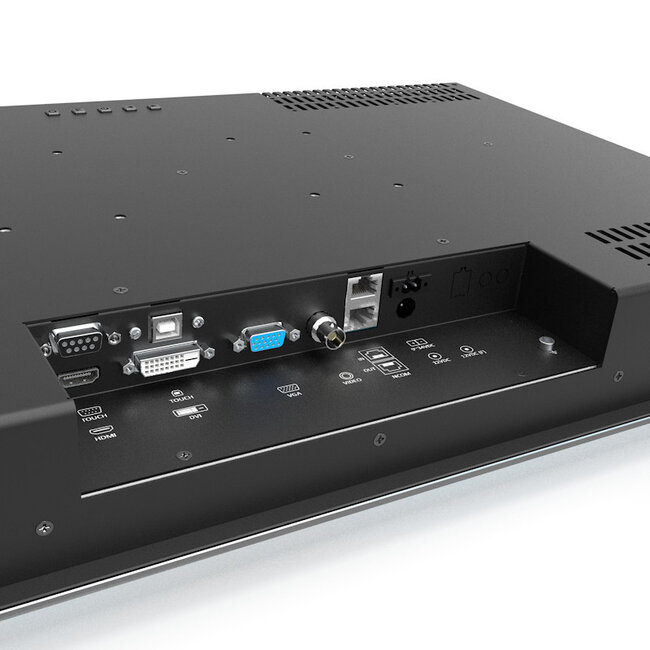

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)

• Dimming Control: External encoder; compatible with central and multi-dimming setups

• Optional Accessories:

  • Mounting bracket (VESA) 100x100

  • V-Stand for monitors with 100x100 VESA bracket
