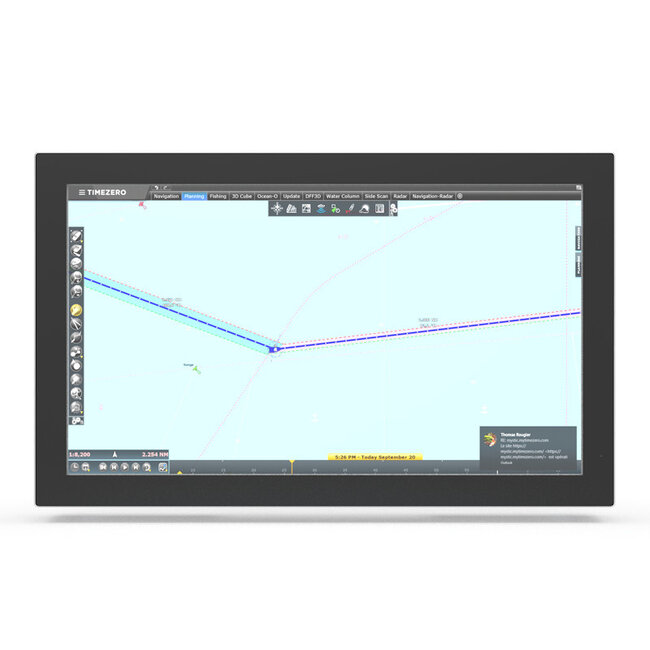

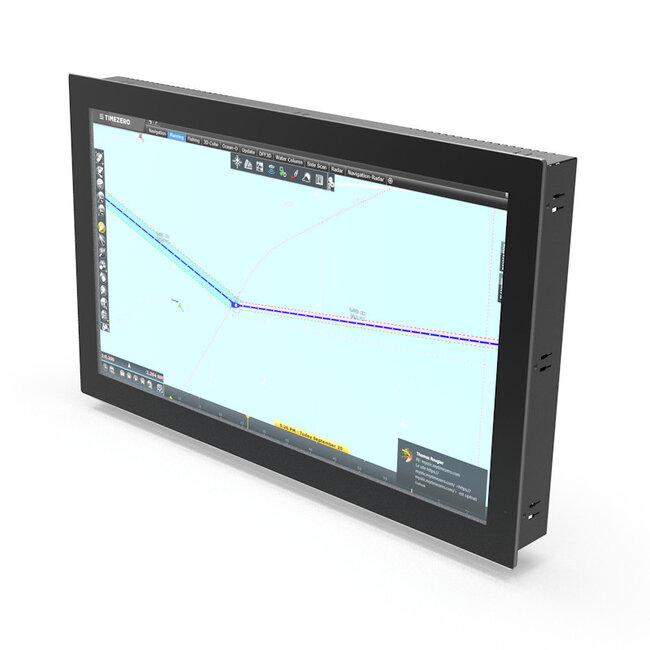

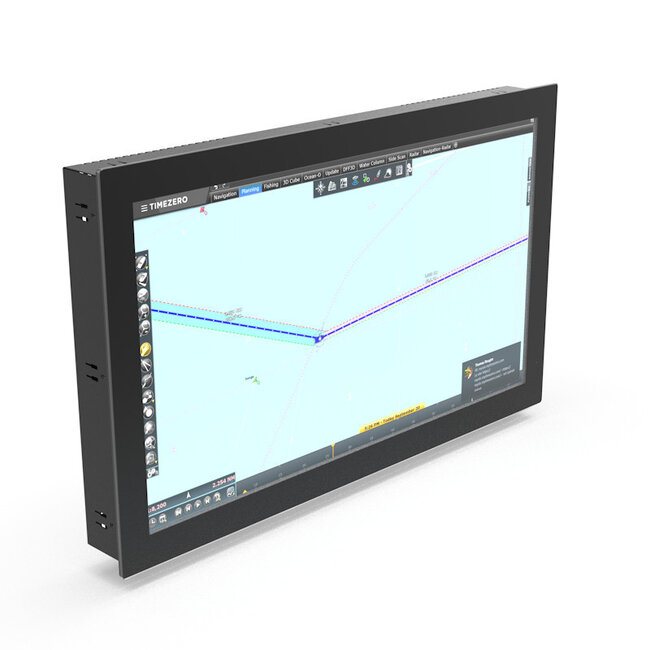

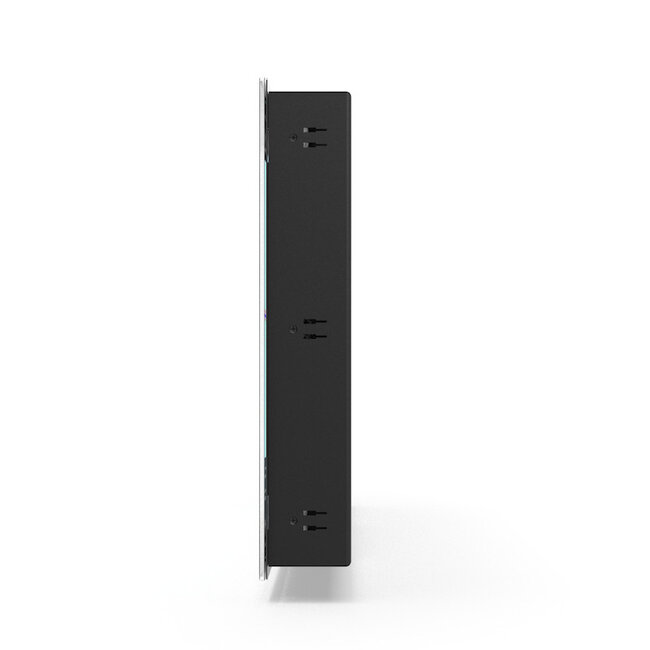

N-line N240KG 24" Full Glass Panel Mount with High Bright, Multi Touchscreen, 9-36V, Dimming, Optical Bonding and Anti-Glare Glass – DNV Certified

The Nottrot N-line N240KG is a high bright 24” full glass panel mount monitor designed for clarity, resilience, and intuitive control in harsh marine conditions. Crafted with a rugged steel body and a waterproof full glass front, this monitor is built for flush console integration aboard yachts, fishing vessels, and workboats. As part of the versatile N-line series (15” to 27”), it is ideal for navigation, power management, CCTV, and alarm systems.

Equipped with an external dimming encoder, the KG model allows easy access to brightness adjustment, power control, and OSD (on-screen display) navigation. The high bright version features up to 1000 nits of brightness, making it perfect for environments with intense sunlight or high ambient lighting. With a projected capacitive multi-touch screen and optically bonded anti-glare glass, the N240KG delivers sharp, responsive visuals and touch functionality in any condition. It is also fully DNV (IEC 60945) certified, ensuring compliance with strict maritime safety and performance standards.

FEATURES

• High bright display (up to 1000 nits) for excellent readability in bright sunlight

• Sleek full glass front for waterproof, flush console mounting

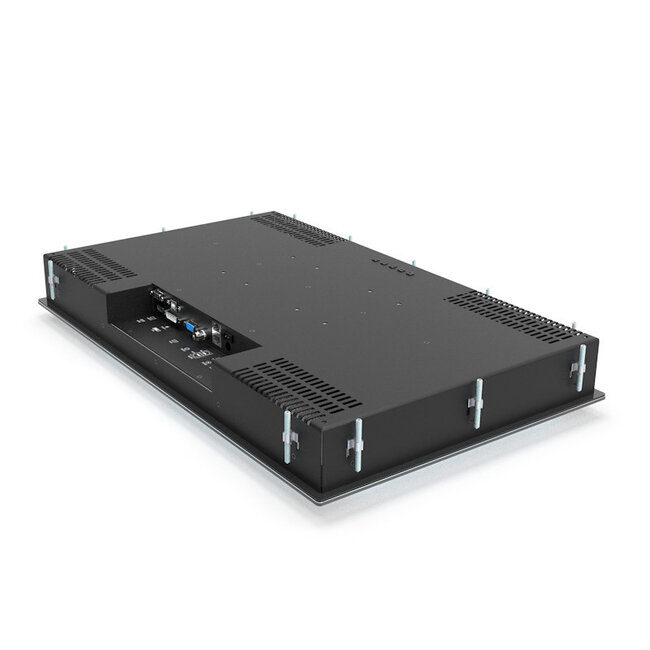

• Heavy-duty steel housing for marine-grade durability

• Projected capacitive multi-touch touchscreen

• External dimming encoder for brightness, power, and OSD control

• Optically bonded anti-glare glass for superior clarity

• Ideal for use in navigation, CCTV, system monitoring, and vessel controls

• Certified to DNV (IEC 60945) maritime standards

• Flexible dimming support: external, central, or multi-monitor setups

• Available in screen sizes from 15” to 27”

SPECIFICATIONS

• Brand: Nottrot

• Model: N240KG

• Screen Size: 24”

• Resolution: 1920 x 1080 pixels

• Aspect Ratio: 16:9

• Brightness: 300 nits

• Optional High Brightness: 1000 nits

• Touch Panel: Projected capacitive touchscreen

• Power Input: 9~36VDC, galvanically isolated

• Front Panel Protection: IP68 (front only)

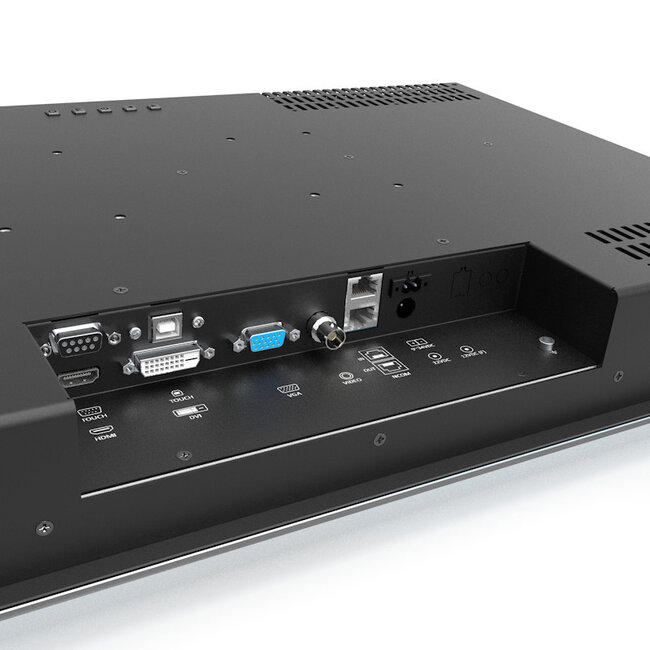

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)

• Dimming Control: External encoder; supports multi-dimming setups

• Certification: DNV (IEC 60945)

• Optional Accessories:

  • V-Stand for monitors with 100 x 100 VESA bracket
