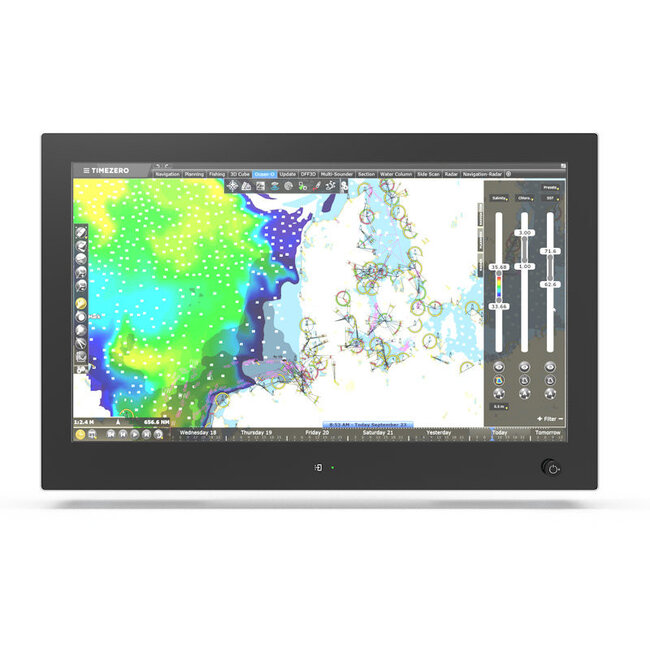

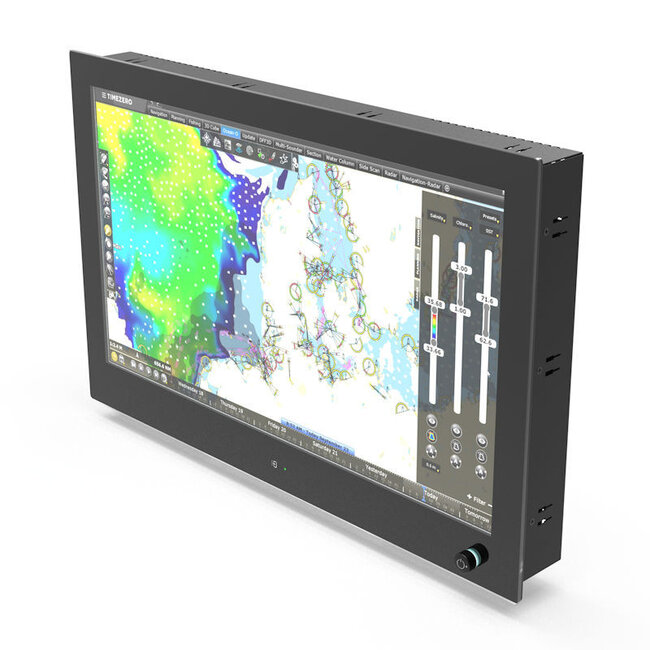

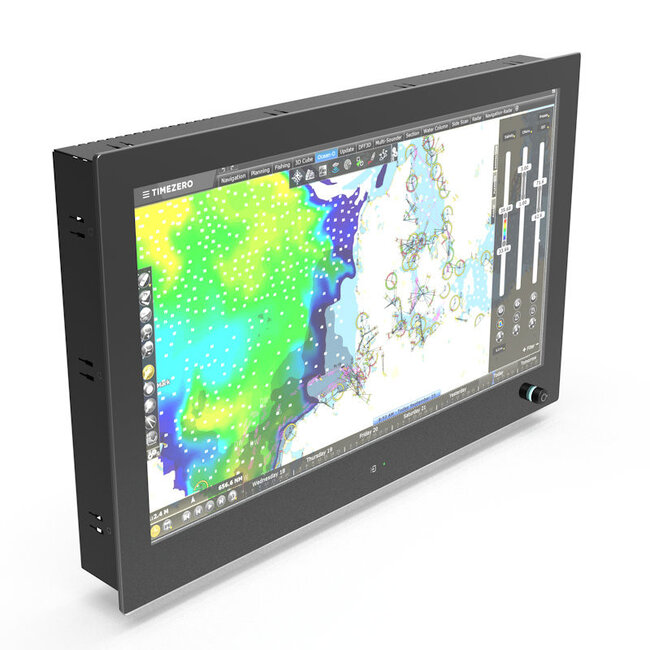

N-line N215KGE 21,5" Full Glass Panel Mount with High Bright, Multi Touchscreen, 9-36V, Dimming, Optical Bonding and Anti-Glare Glass – DNV Certified

The Nottrot N-line N215KGE is a high bright 21,5” full glass panel mount monitor, designed to offer maximum clarity, durability, and control in marine environments. With a sleek, waterproof full glass front and robust steel housing, it is ideal for flush-mount installation on yachts, workboats, and fishing vessels. Part of the N-line series (available from 15” to 27”), this monitor is built to meet the demands of navigation, CCTV, monitoring systems, and power management applications.

The high bright option, delivering up to 1000 nits, ensures excellent screen readability in bright ambient light or direct sunlight. The front-mounted dimming encoder gives you precise control over brightness, power, and the on-screen display (OSD). In addition, the KGE model features a capacitive switch at the bottom of the display for seamless switching between video sources. With projected capacitive multi-touch functionality and optically bonded anti-glare glass, the N215KGE provides clear, responsive interaction even in the harshest conditions. This model is fully DNV (IEC 60945) certified for marine use.

FEATURES

• High bright display (up to 1000 nits) for sunlight-readable clarity

• Sleek waterproof full glass front for flush console integration

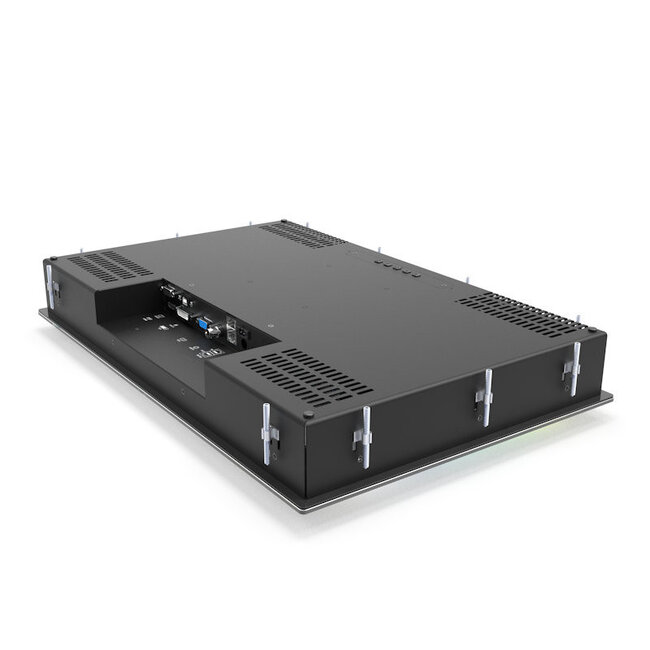

• Durable steel housing designed for marine environments

• Projected capacitive multi-touch touchscreen

• Integrated dimming encoder on the front panel for power, brightness, and OSD control

• Capacitive switch for quick video input selection (KGE model)

• Optically bonded and anti-glare glass for enhanced visibility

• Certified to DNV (IEC 60945) for maritime safety and reliability

• Flexible dimming options: front, external, central, or multi-display setups

• Available in screen sizes from 15” to 27”

SPECIFICATIONS

• Brand: Nottrot

• Model: N215KGE

• Screen Size: 21,5”

• Resolution: 1920 x 1080 pixels

• Aspect Ratio: 16:9

• Brightness: 500 nits

• Optional High Brightness: 1000 nits

• Touch Panel: Projected capacitive touchscreen

• Power Input: 9~36VDC, galvanically isolated

• Front Panel Protection: IP65 (front only)

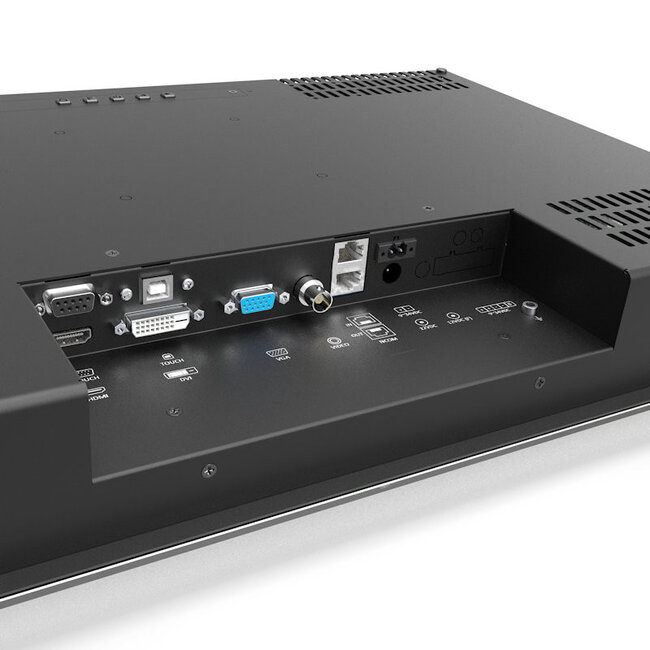

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)

• Dimming Control: Integrated encoder; supports external and multi-dimming setups

• Capacitive Switch: Yes, for video source selection

• Certification: DNV (IEC 60945)

• Optional Accessories:

  • V-Stand for monitors with 100x100 VESA bracket

BROCHURES

• N-line N215KGE - DNV Product Sheet
• N-Line N215KGE - DNV Product Dimensions
• N-Line User Manual
• Entire N-line front and cutout dimensions
