N-line N215KG 21,5" Full Glass Panel Mount with Multi Touchscreen, 9-36V, Dimming, Optical Bonding and Anti-Glare Glass

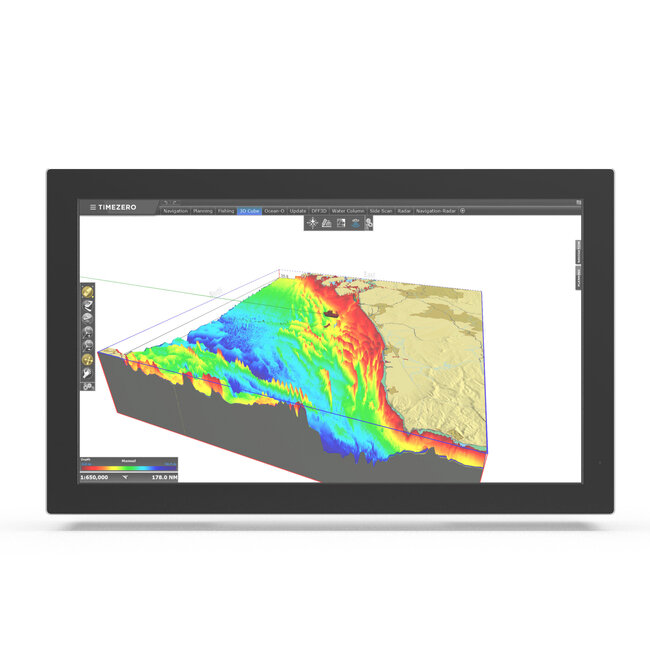

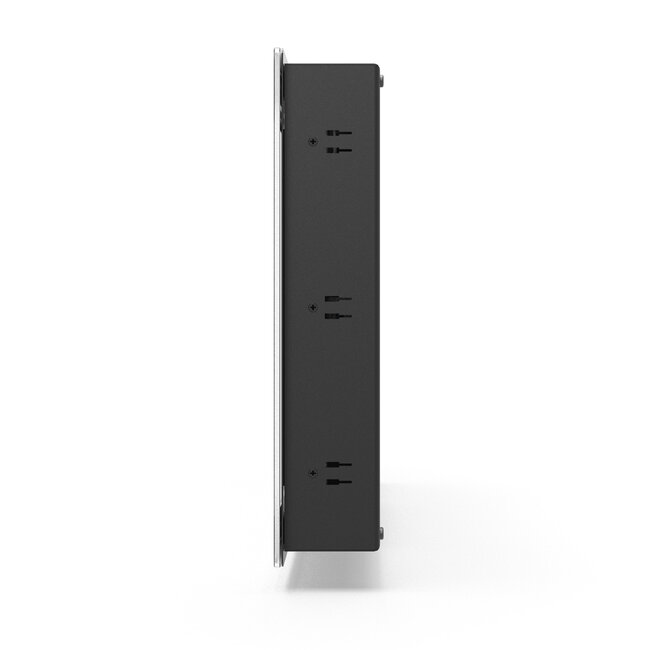

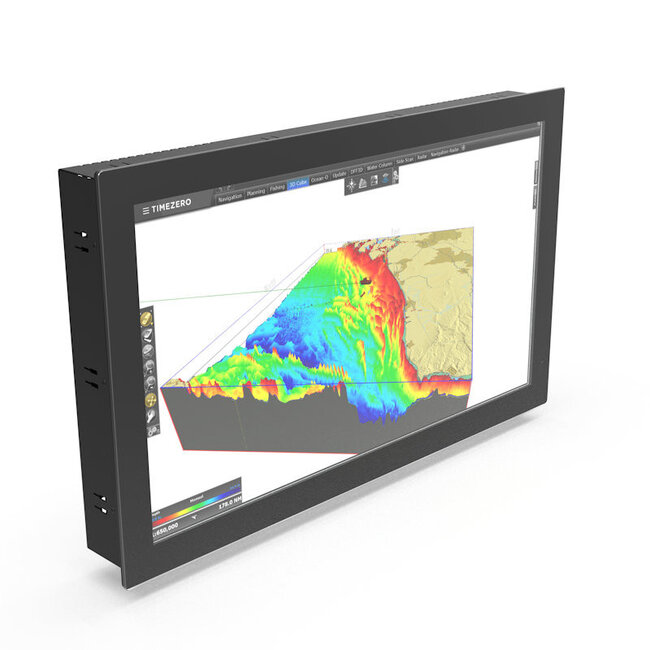

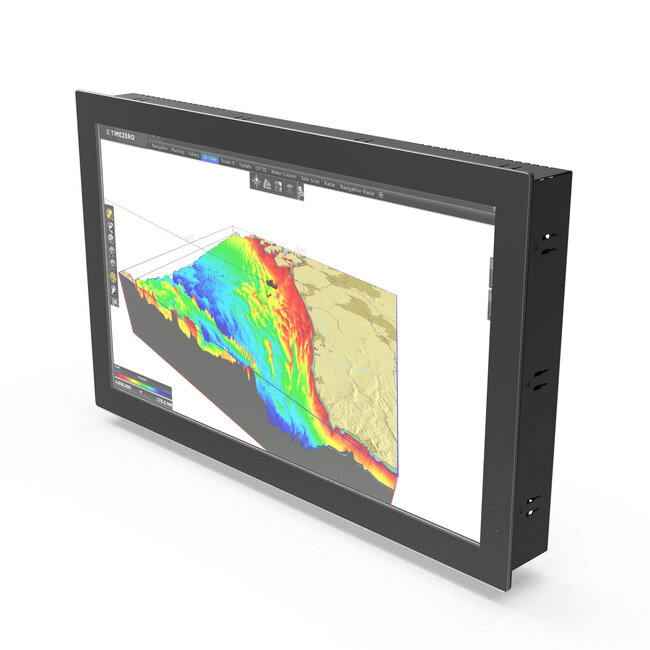

The Nottrot N-line N215KG is a 21,5” full glass panel mount monitor built for durability, clarity, and high functionality in demanding marine environments. With its rugged steel housing and sleek waterproof full glass front, it’s engineered for flush mounting on yachts, workboats, and fishing vessels. As part of the N-line series (available from 15” to 27”), this model is ideal for displaying navigation data, onboard monitoring systems, CCTV, and power management information.

The KG model includes an external dimming encoder, giving users direct control over screen brightness, power, and the OSD menu. The projected capacitive touchscreen ensures smooth, accurate multi-touch response, while the optically bonded anti-glare glass enhances screen visibility in bright or reflective lighting. Built with flexibility in mind, the N215KG supports multiple dimming configurations and mounting accessories to suit a wide variety of bridge and vessel console installations.

FEATURES

• Sleek, waterproof full glass front for flush panel mounting

• Robust steel housing built for marine-grade endurance

• Projected capacitive multi-touch touchscreen

• External dimming encoder for brightness, power, and OSD control

• Anti-glare and optically bonded glass for excellent readability

• Designed for navigation, CCTV, power systems, and alarm monitoring

• Flexible dimming configurations: external, central, or multi-monitor setups

• Available in screen sizes from 15” to 27”

SPECIFICATIONS

• Brand: Nottrot

• Model: N215KG

• Screen Size: 21,5”

• Resolution: 1920 x 1080 pixels

• Aspect Ratio: 16:9

• Brightness: 500 nits

• Optional High Brightness: 1000 nits

• Touch Panel: Projected capacitive touchscreen

• Power Input: 9~36VDC, galvanically isolated

• Front Panel Protection: IP68 (front only)

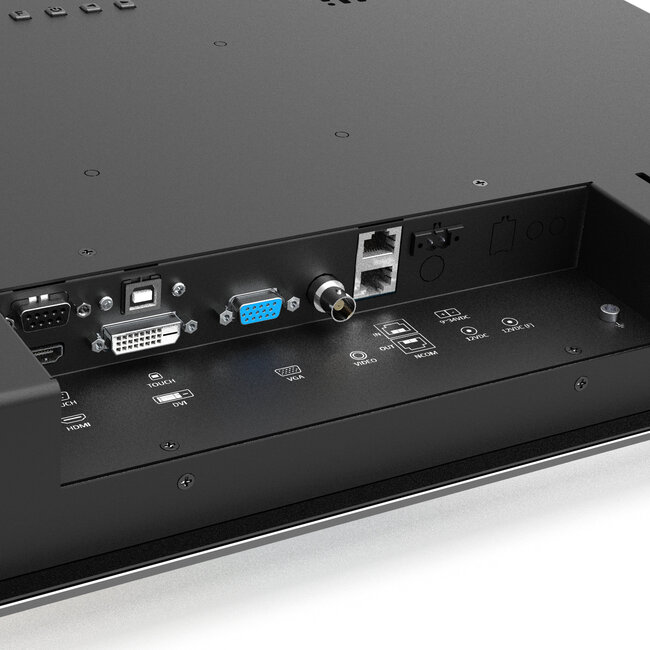

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)

• Dimming Control: External encoder; supports central and multi-dimming options

• Optional Accessories:

  • Mounting bracket (VESA) 100x100

  • V-Stand for monitors with 100x100 VESA bracket

BROCHURES

• N-line N215KG Product Sheet
• N-Line N215KG Product Dimensions
• N-Line User Manual
• Entire N-line front and cutout dimensions
