N-line N215KG 21,5" Full Glass Panel Mount with Multi Touchscreen, 9-36V, Dimming, Optical Bonding and Anti-Glare Glass – DNV Certified

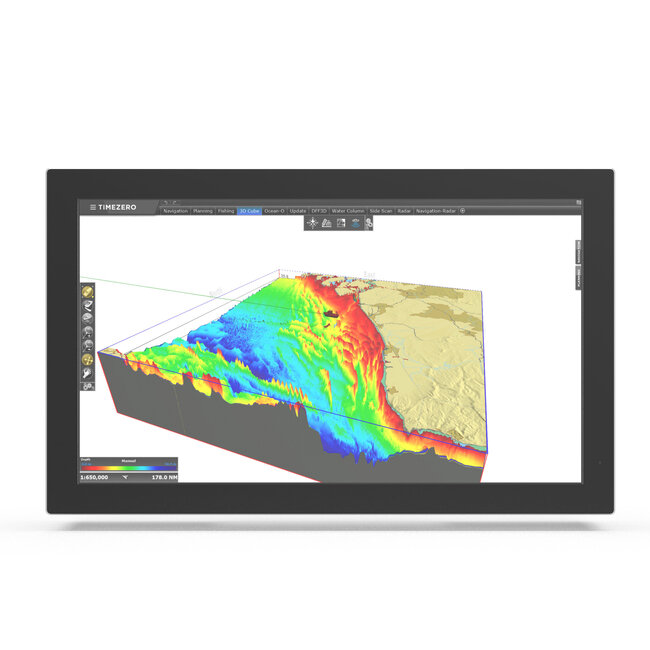

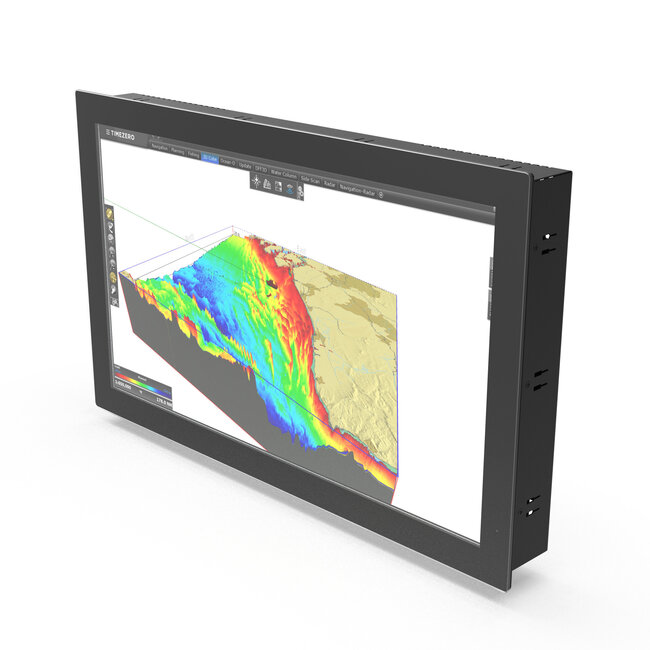

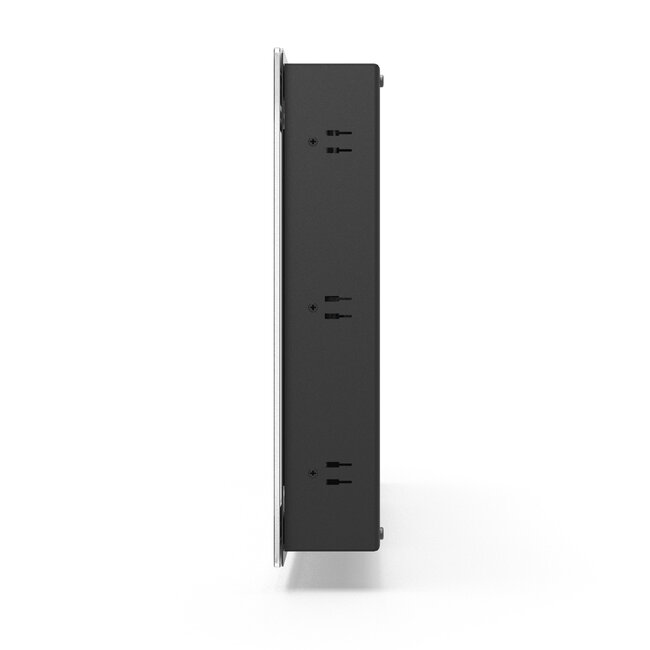

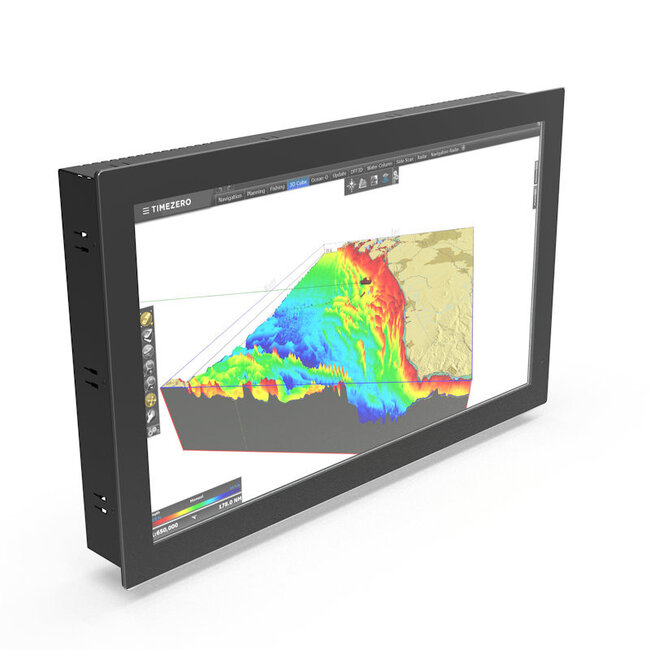

The Nottrot N-line N215KG is a 21,5” full glass panel mount monitor designed for high reliability and clarity in marine environments. With a rugged steel body and sleek waterproof glass front, this monitor is ideal for flush-mounted console integration on yachts, workboats, and fishing vessels. As part of the N-line series (available in sizes from 15” to 27”), the N215KG is perfect for displaying navigation data, alarm and monitoring systems, CCTV, and power management interfaces.

This KG model features an external dimming encoder, offering easy access to brightness, power control, and the OSD (on-screen display) menu. Its projected capacitive touchscreen delivers smooth and responsive multi-touch input, while optically bonded anti-glare glass ensures excellent readability in harsh lighting conditions. Certified to DNV (IEC 60945) standards, this monitor is tailored for professional marine use and supports flexible dimming configurations to suit various installation needs.

FEATURES

• Sleek full glass front for waterproof flush console mounting

• Robust steel construction designed for marine-grade durability

• Projected capacitive multi-touch touchscreen

• External dimming encoder for brightness, power, and OSD access

• Optically bonded anti-glare glass for optimal screen visibility

• Ideal for use in navigation, monitoring, CCTV, and power systems

• Certified to DNV (IEC 60945) maritime standards

• Supports flexible dimming: external, central, or multi-monitor setups

• Available in screen sizes from 15” to 27”

SPECIFICATIONS

• Brand: Nottrot

• Model: N215KG

• Screen Size: 21,5”

• Resolution: 1920 x 1080 pixels

• Aspect Ratio: 16:9

• Brightness: 500 nits

• Optional High Brightness: 1000 nits

• Touch Panel: Projected capacitive touchscreen

• Power Input: 9~36VDC, galvanically isolated

• Front Panel Protection: IP68 (front only)

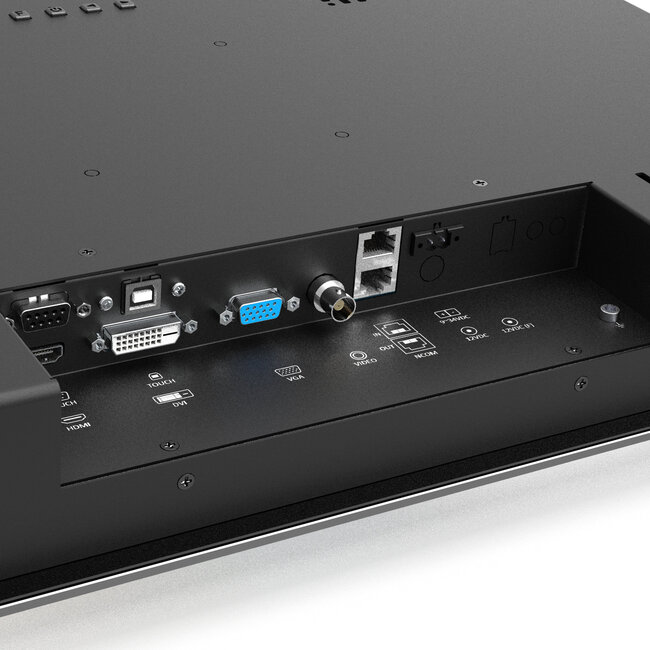

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)

• Dimming Control: External encoder; supports central and multi-dimming options

• Certification: DNV (IEC 60945)

• Optional Accessories:

  • V-Stand for monitors with 100x100 VESA bracket

BROCHURES

• N-line N215KG - DNV Product Sheet
• N-Line N215KG - DNV Product Dimensions
• N-Line User Manual
• Entire N-line front and cutout dimensions
