N-line N215KG 21,5" Full Glass Panel Mount with High Bright, Multi Touchscreen, 9-36V, Dimming, Optical Bonding and Anti-Glare Glass

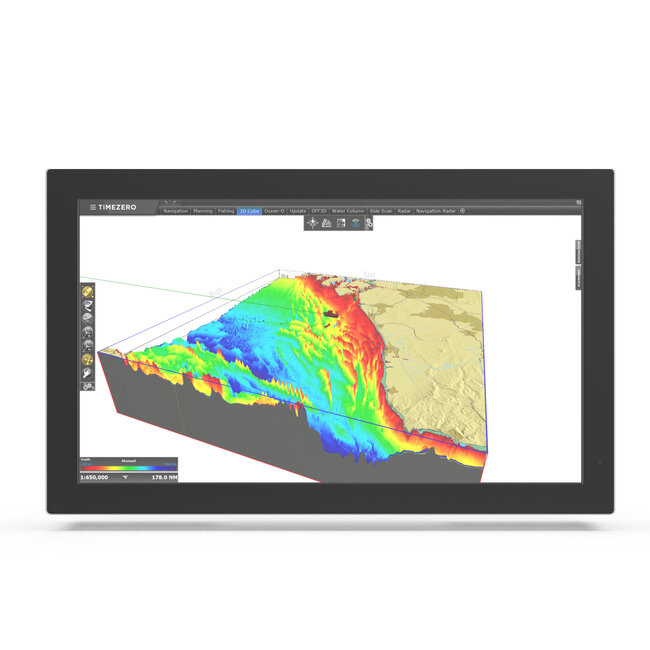

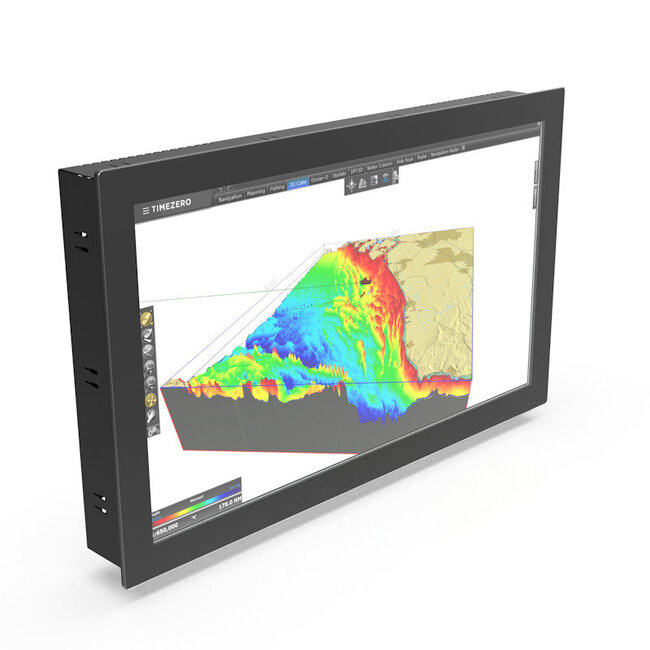

The Nottrot N-line N215KG is a 21,5” full glass panel mount monitor designed to deliver top-tier visibility, performance, and durability in marine environments. Built with a rugged steel housing and sleek waterproof glass front, it integrates seamlessly into vessel consoles and is ideal for yachts, workboats, and fishing vessels. As part of the N-line series (available in 15” to 27”), it’s a reliable solution for navigation, monitoring, CCTV, and onboard power systems.

This high bright version delivers up to 1000 nits of brightness, making it ideal for outdoor or brightly lit bridge environments. The external dimming encoder allows easy adjustment of screen brightness, power, and access to the on-screen display (OSD) menu. Featuring a projected capacitive multi-touch touchscreen and optically bonded anti-glare glass, the N215KG ensures responsive touch performance and clear visibility under any conditions. Its flexible dimming options support a wide range of installation preferences.

FEATURES

• High bright screen (up to 1000 nits) for optimal sunlight readability

• Sleek, waterproof full glass front for flush panel integration

• Rugged steel housing for long-term marine durability

• Projected capacitive multi-touch touchscreen

• External dimming encoder for intuitive brightness and OSD control

• Anti-glare and optically bonded glass for improved screen clarity

• Ideal for navigation, CCTV, alarm systems, and power management

• Flexible dimming options: external, central, or multi-monitor configurations

• Available in screen sizes from 15” to 27”

SPECIFICATIONS

• Brand: Nottrot

• Model: N215KG

• Screen Size: 21,5”

• Resolution: 1920 x 1080 pixels

• Aspect Ratio: 16:9

• Brightness: 500 nits

• Optional High Brightness: 1000 nits

• Touch Panel: Projected capacitive touchscreen

• Power Input: 9~36VDC, galvanically isolated

• Front Panel Protection: IP68 (front only)

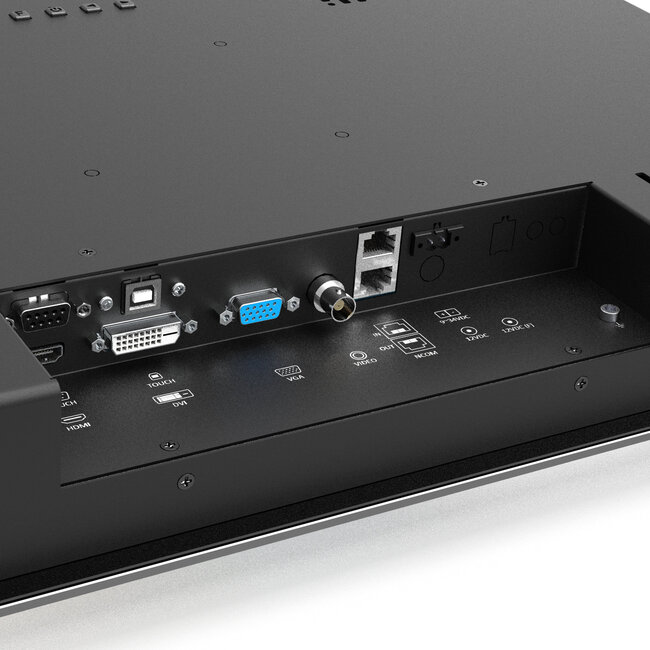

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)

• Dimming Control: External encoder; supports central and multi-dimming setups

• Optional Accessories:

  • Mounting bracket (VESA) 100x100

  • V-Stand for monitors with 100x100 VESA bracket

BROCHURES

• N-line N215KG Product Sheet
• N-Line N215KG Product Dimensions
• N-Line User Manual
• Entire N-line front and cutout dimensions
