N-line N215KG 21,5" Full Glass Panel Mount with High Bright, Multi Touchscreen, 9-36V, Dimming, Optical Bonding and Anti-Glare Glass – DNV Certified

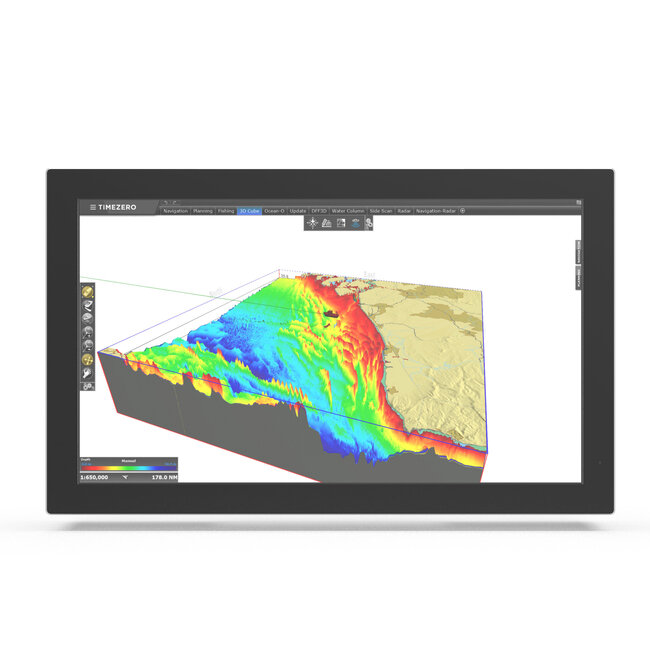

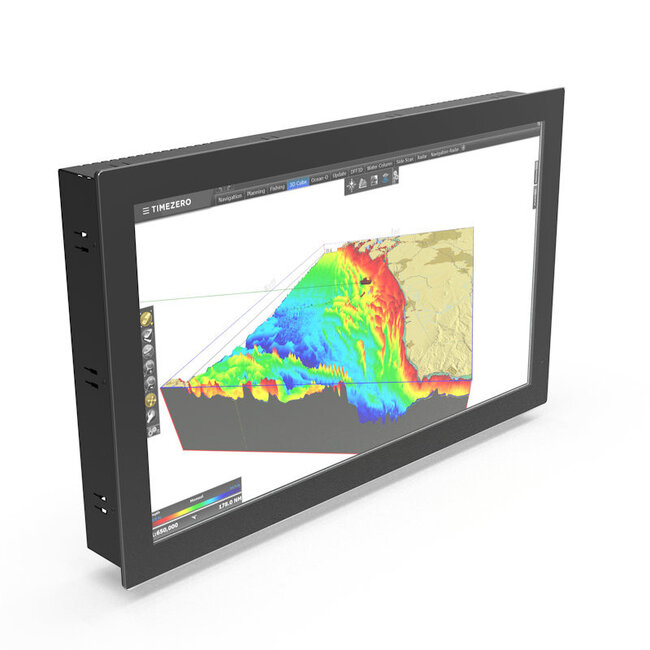

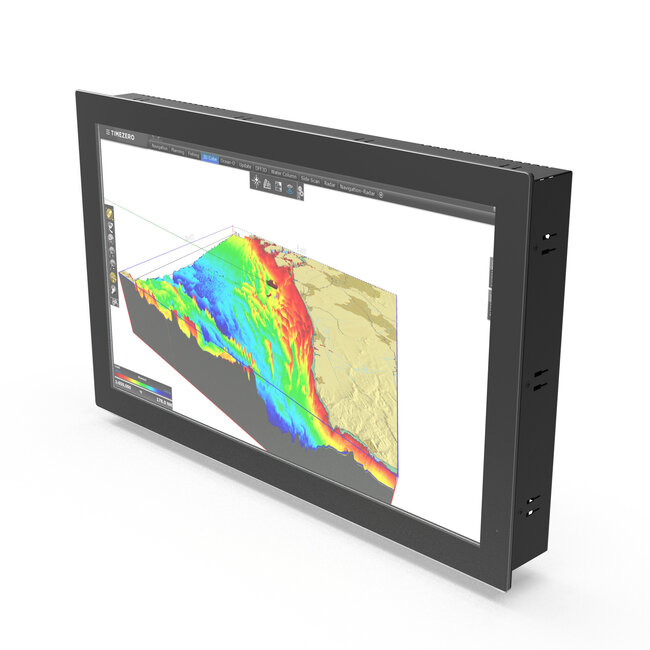

The Nottrot N-line N215KG is a high bright 21,5” full glass panel mount monitor engineered for maximum performance and reliability in maritime environments. Designed with a sleek full glass front and robust steel housing, it can be flush-mounted into vessel consoles, making it ideal for yachts, workboats, and fishing vessels. Part of the N-line range (available in 15” to 27”), this display is well-suited for navigation, alarm monitoring, CCTV, and power management systems.

This high bright version offers up to 1000 nits of brightness, ensuring excellent screen readability even in direct sunlight or high ambient light conditions. The KG model includes an external dimming encoder, enabling smooth control over brightness, power, and OSD (on-screen display) functions. Combined with a projected capacitive multi-touch panel and optically bonded anti-glare glass, the N215KG delivers an intuitive user experience with crystal-clear visuals in all environments. It is also DNV (IEC 60945) certified, meeting rigorous standards for marine electronics.

FEATURES

• High bright screen (up to 1000 nits) for optimal visibility in sunlight

• Flush-mount full glass front for sleek, waterproof installation

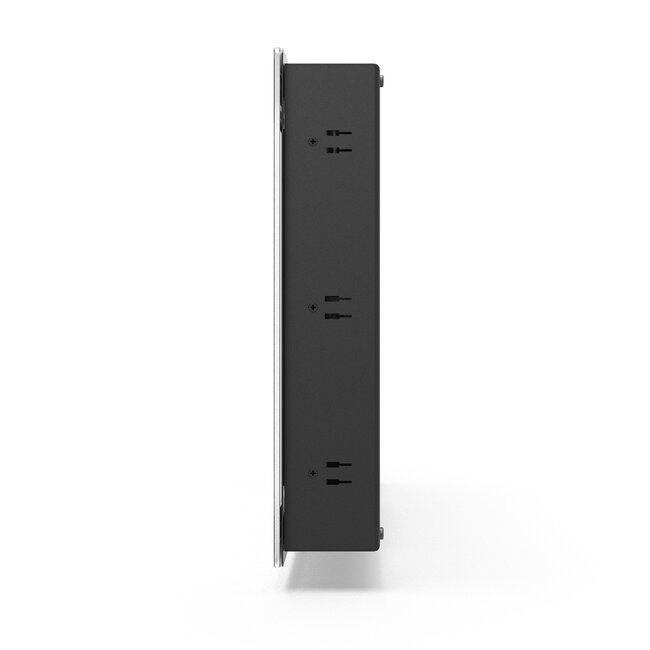

• Durable steel body built for marine-grade resilience

• Projected capacitive multi-touch touchscreen

• External dimming encoder for brightness, power, and OSD control

• Anti-glare and optically bonded glass for improved screen clarity

• Perfect for use in navigation, CCTV, power management, and vessel monitoring

• Certified to DNV (IEC 60945) maritime standards

• Flexible dimming options: external, central, or multi-display setups

• Available in screen sizes from 15” to 27”

SPECIFICATIONS

• Brand: Nottrot

• Model: N215KG

• Screen Size: 21,5”

• Resolution: 1920 x 1080 pixels

• Aspect Ratio: 16:9

• Brightness: 500 nits

• Optional High Brightness: 1000 nits

• Touch Panel: Projected capacitive touchscreen

• Power Input: 9~36VDC, galvanically isolated

• Front Panel Protection: IP68 (front only)

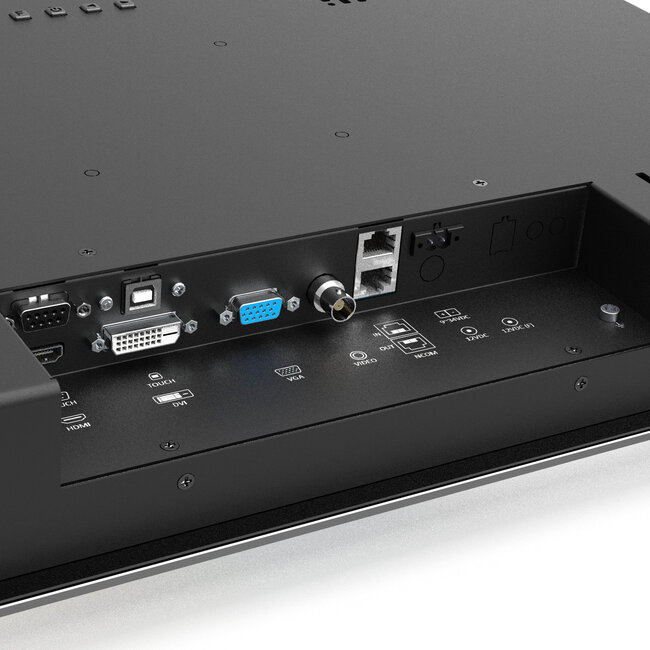

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)

• Dimming Control: External encoder; supports central and multi-dimming configurations

• Certification: DNV (IEC 60945)

• Optional Accessories:

  • V-Stand for monitors with 100x100 VESA bracket
