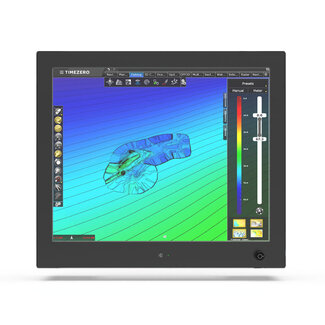

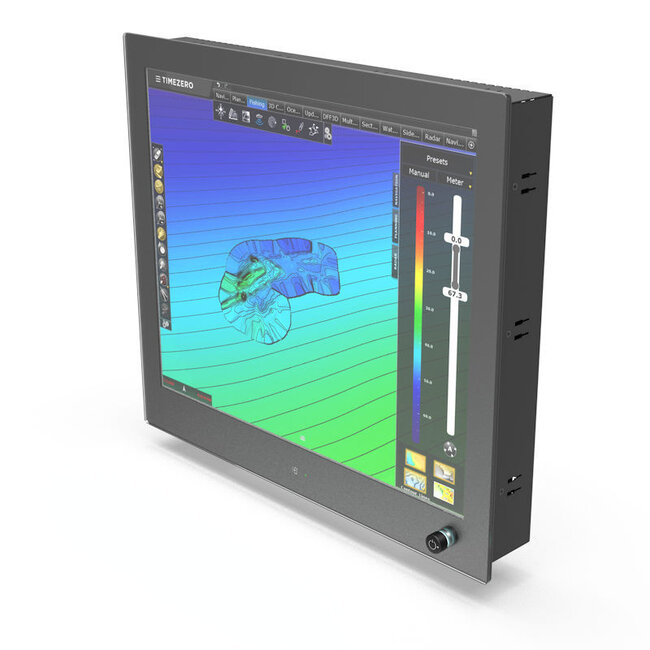

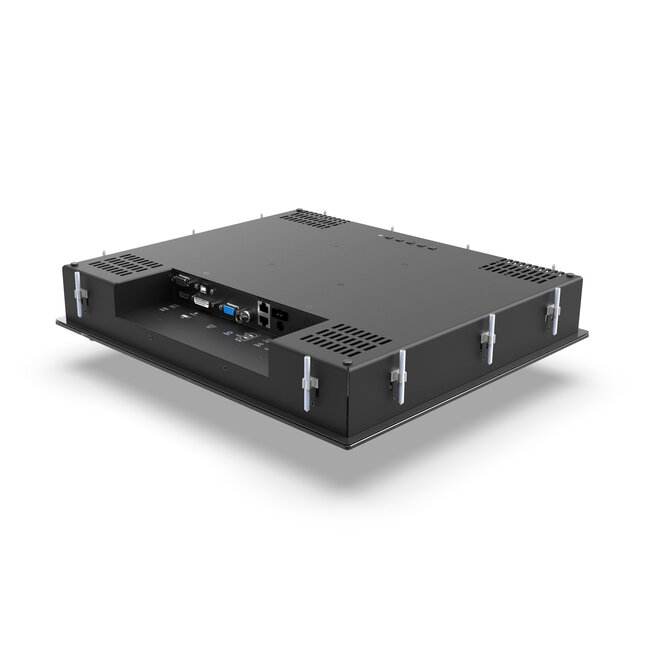

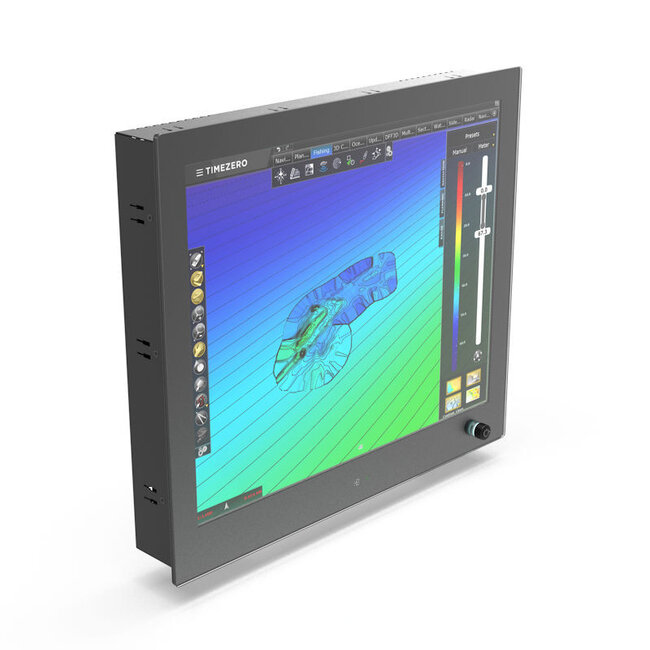

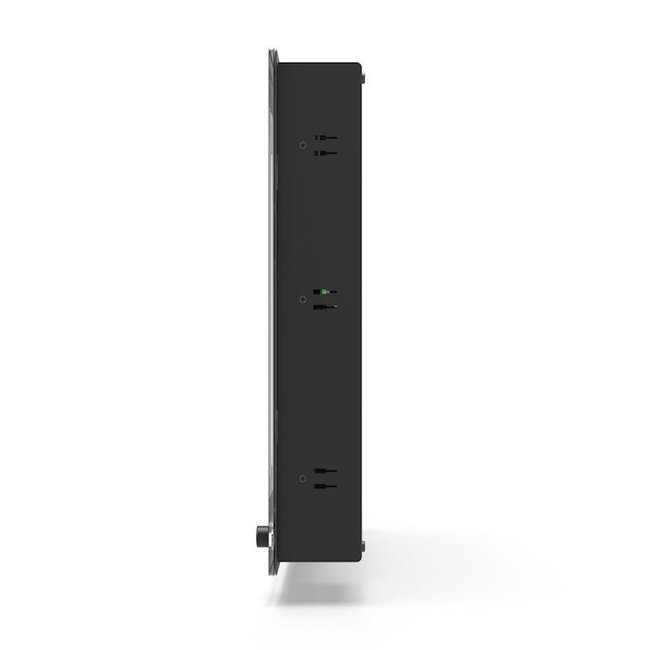

N-line N190KGE 19" Full Glass Panel Mount with Multi Touchscreen, 9-36V, Dimming, Optical Bonding and Anti-Glare Glass – DNV Certified

The Nottrot N-line N190KGE is a 19” full glass panel mount monitor designed for high-performance, long-term operation in marine environments. Built with a durable steel body and a sleek, waterproof glass front, it’s made for flush console integration aboard yachts, workboats, and fishing vessels. As part of the N-line series (available in 15” to 27”), this monitor supports vital onboard functions such as navigation, power systems, CCTV, and alarm monitoring.

The integrated front dimming encoder provides intuitive access to brightness, power control, and the OSD menu. The KGE version also includes a capacitive switch at the bottom of the screen for seamless video source selection. Combined with projected capacitive touchscreen technology and optically bonded anti-glare glass, the N190KGE ensures responsive touch functionality and clear screen visibility. Certified to DNV (IEC 60945) maritime standards, it meets the stringent requirements of professional marine operations.

FEATURES

• Sleek, waterproof full glass front for flush panel integration

• Rugged steel housing built for marine durability

• Projected capacitive multi-touch touchscreen

• Integrated front dimming encoder for brightness, power, and OSD access

• Capacitive switch for fast video input selection (KGE model)

• Optically bonded and anti-glare glass for optimal readability

• Suitable for navigation, monitoring, CCTV, and marine system interfaces

• Certified to DNV (IEC 60945) standards

• Flexible dimming options: onboard, external, central, or multi

SPECIFICATIONS

• Brand: Nottrot

• Model: N190KGE

• Screen Size: 19”

• Resolution: 1280 x 1024 pixels

• Aspect Ratio: 5:4

• Brightness: 400 nits

• Optional High Brightness: 1500 nits

• Touch Panel: Projected capacitive touchscreen

• Power Input: 9~36VDC, galvanically isolated

• Front Panel Protection: IP65 (front only)

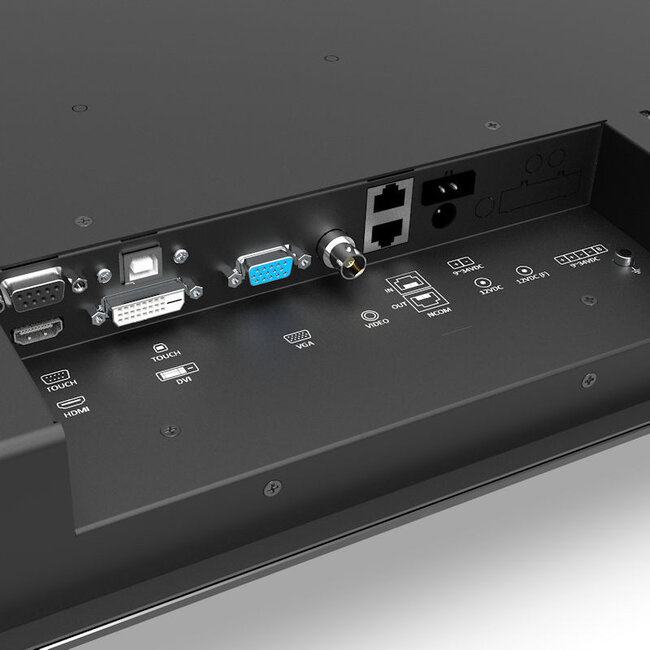

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)

• Dimming Control: Integrated encoder; compatible with external and multi-dimming systems

• Capacitive Switch: Yes, for video source selection

• Certification: DNV (IEC 60945)

• Optional Accessories:

  • V-Stand for monitors with 100x100 VESA bracket

BROCHURES

• N-line N190KGE - DNV Product Sheet
• N-Line N190KGE - DNV Product Dimensions
• N-Line User Manual
• Entire N-line front and cutout dimensions
