N-line N190KGE 19" Full Glass Panel Mount with High Bright, Multi Touchscreen, 9-36V, Dimming, Optical Bonding and Anti-Glare Glass

The Nottrot N-line N190KGE is a high bright 19” full glass panel mount monitor developed for optimal performance and visibility in demanding marine environments. Featuring a rugged steel body and sleek full glass front, this monitor is designed for flush-mount integration into consoles aboard yachts, workboats, and fishing vessels. It is part of Nottrot’s versatile N-line series (available in sizes 15” to 27”) and is ideal for applications including navigation, power monitoring, CCTV, and alarm systems.

This model features a high bright screen with brightness up to 1500 nits, ensuring excellent readability in direct sunlight or high ambient light conditions. The front-mounted dimming encoder allows for intuitive control of brightness, power, and access to the OSD menu. Additionally, the KGE variant is equipped with a capacitive switch at the bottom of the display, enabling quick switching between video inputs. With a responsive projected capacitive touchscreen and optically bonded anti-glare glass, the N190KGE delivers outstanding usability and clarity in all conditions.

FEATURES

• High bright display (up to 1500 nits) for sunlight-readable clarity

• Flush-mount full glass front with waterproof design

• Rugged steel housing for reliable maritime performance

• Projected capacitive multi-touch touchscreen

• Integrated front dimming encoder for brightness, OSD, and power control

• Capacitive switch for switching between video sources (KGE model)

• Anti-glare and optically bonded glass for excellent screen readability

• Ideal for use with navigation systems, CCTV, power management, and alarms

• Flexible dimming options: onboard, external, central, or multi

• Available in screen sizes from 15” to 27”

SPECIFICATIONS

• Brand: Nottrot

• Model: N190KGE

• Screen Size: 19”

• Resolution: 1280 x 1024 pixels

• Aspect Ratio: 5:4

• Brightness: 400 nits

• Optional High Brightness: 1500 nits

• Touch Panel: Projected capacitive touchscreen

• Power Input: 9~36VDC, galvanically isolated

• Front Panel Protection: IP65 (front only)

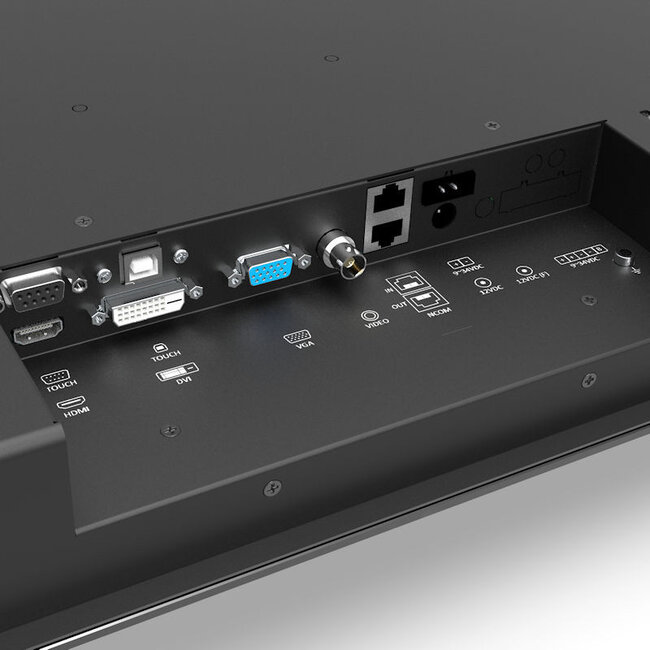

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)

• Dimming Control: Integrated encoder; supports external and multi-dimming setups

• Capacitive Switch: Yes, for video input selection

• Optional Accessories:

  • Mounting bracket (VESA) 100x100

  • V-Stand for monitors with 100x100 VESA bracket

BROCHURES

• N-line N190KGE Product Sheet
• N-Line N190KGE Product Dimensions
• N-Line User Manual
• Entire N-line front and cutout dimensions
