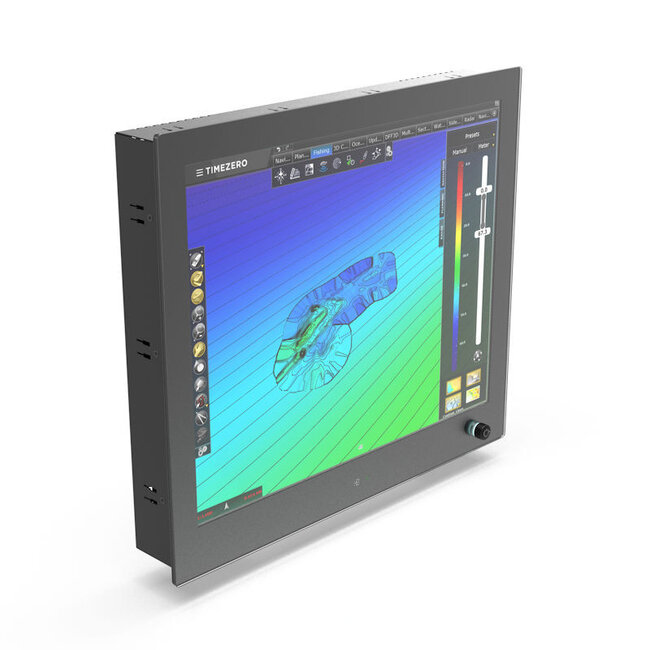

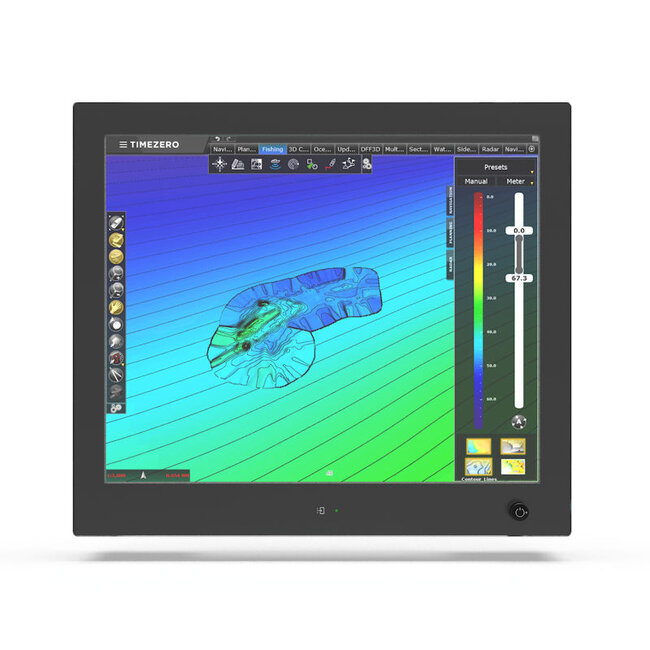

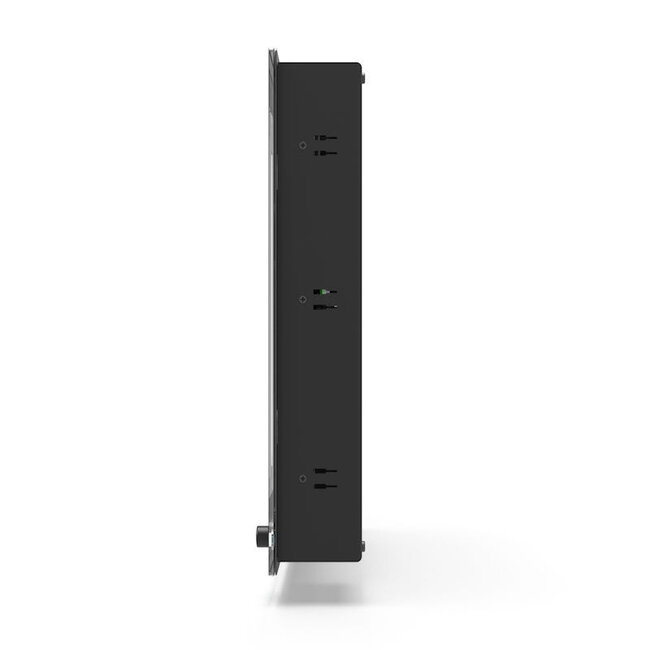

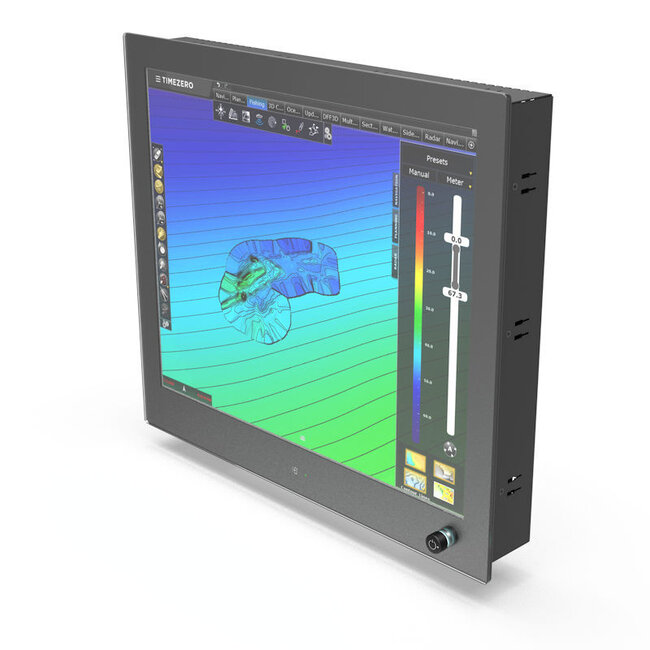

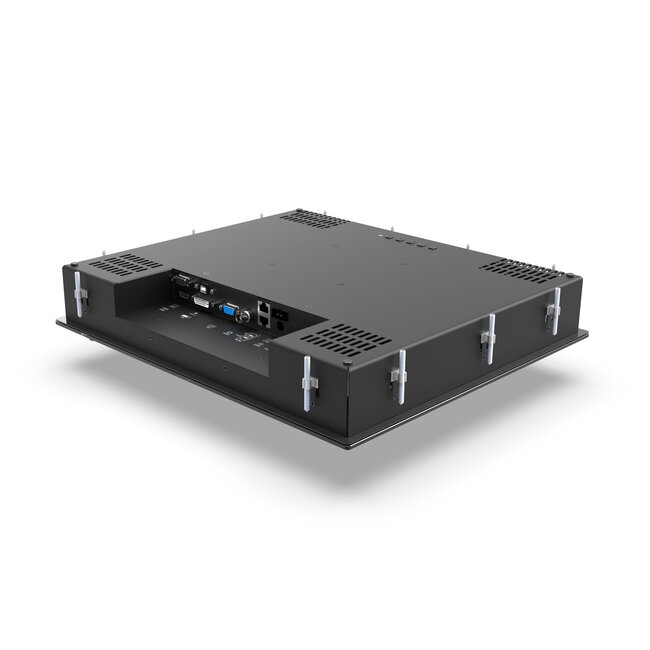

N-line N190KGE 19" Full Glass Panel Mount with High Bright, Multi Touchscreen, 9-36V, Dimming, Optical Bonding and Anti-Glare Glass – DNV Certified

The Nottrot N-line N190KGE is a high bright 19” full glass panel mount monitor designed for professional-grade performance in maritime environments. Its rugged steel housing and waterproof full glass front make it ideal for flush integration into consoles aboard yachts, workboats, and fishing vessels. As part of the N-line series (available in 15” to 27”), this model is perfectly suited for critical functions such as navigation, alarm systems, CCTV, and power management displays.

The high bright option, with up to 1500 nits of brightness, ensures maximum screen visibility even in direct sunlight or high-glare environments. The integrated front dimming encoder offers intuitive control over brightness, power, and OSD menu functions. Additionally, the KGE model includes a capacitive switch at the bottom of the screen, allowing users to switch between video inputs quickly and efficiently. With a projected capacitive touchscreen and optically bonded anti-glare glass, the N190KGE delivers excellent clarity and responsiveness in all conditions. It also meets the strict DNV (IEC 60945) certification for maritime use.

FEATURES

• High bright display (up to 1500 nits) for optimal sunlight readability

• Flush-mount full glass front with waterproof design

• Durable steel housing built for harsh marine environments

• Projected capacitive multi-touch touchscreen

• Integrated front dimming encoder for brightness, power, and OSD control

• Capacitive switch for seamless video input selection (KGE model)

• Anti-glare and optically bonded glass for enhanced visibility

• Suitable for navigation systems, CCTV, alarms, and marine control panels

• Certified to DNV (IEC 60945) standards

• Flexible dimming options: onboard, external, central, or multi

SPECIFICATIONS

• Brand: Nottrot

• Model: N190KGE

• Screen Size: 19”

• Resolution: 1280 x 1024 pixels

• Aspect Ratio: 5:4

• Brightness: 400 nits

• Optional High Brightness: 1500 nits

• Touch Panel: Projected capacitive touchscreen

• Power Input: 9~36VDC, galvanically isolated

• Front Panel Protection: IP65 (front only)

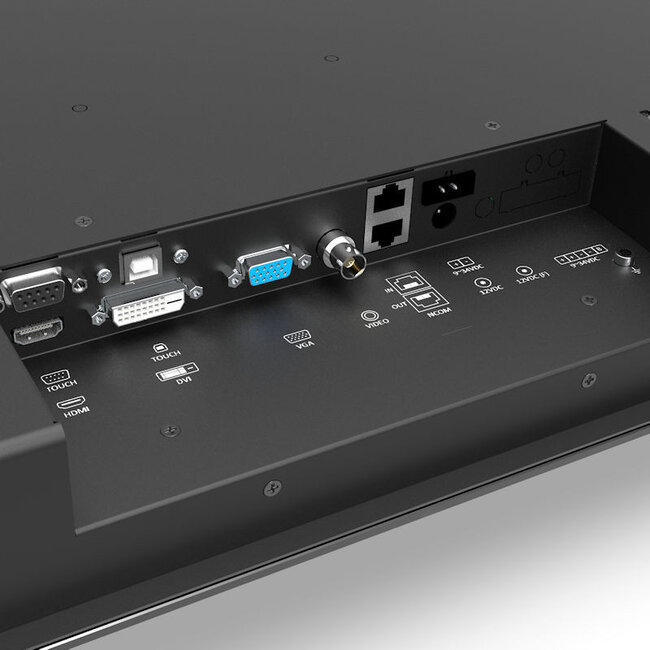

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)

• Dimming Control: Integrated encoder; compatible with external and multi-dimming setups

• Capacitive Switch: Yes, for video source selection

• Certification: DNV (IEC 60945)

• Optional Accessories:

  • V-Stand for monitors with 100x100 VESA bracket
