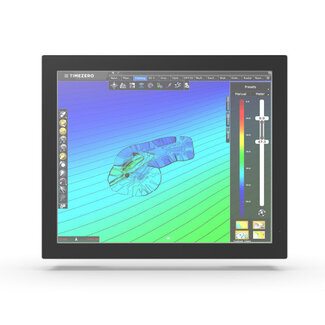

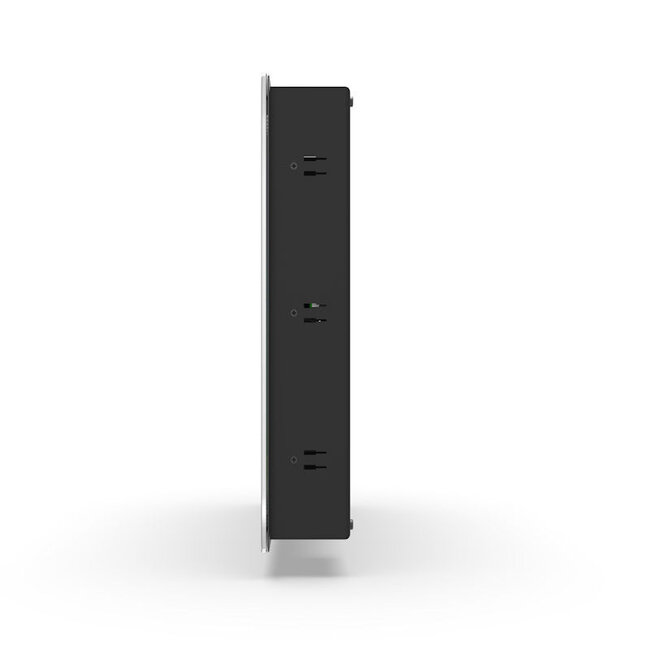

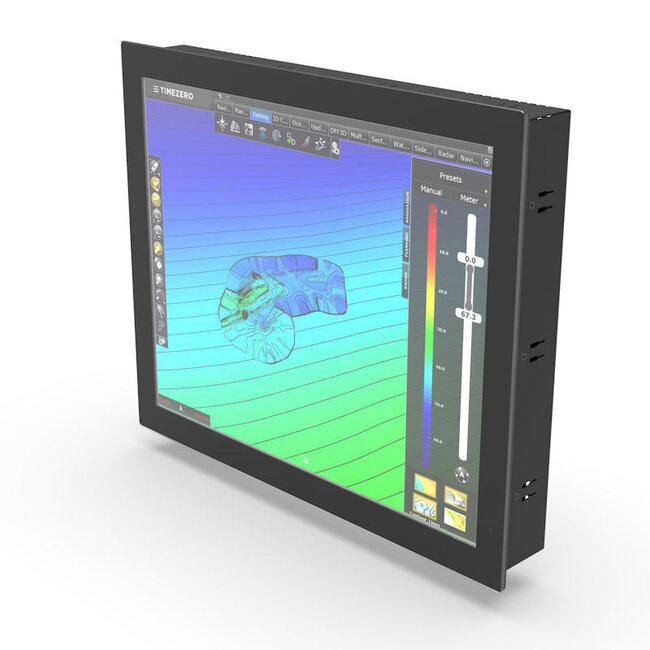

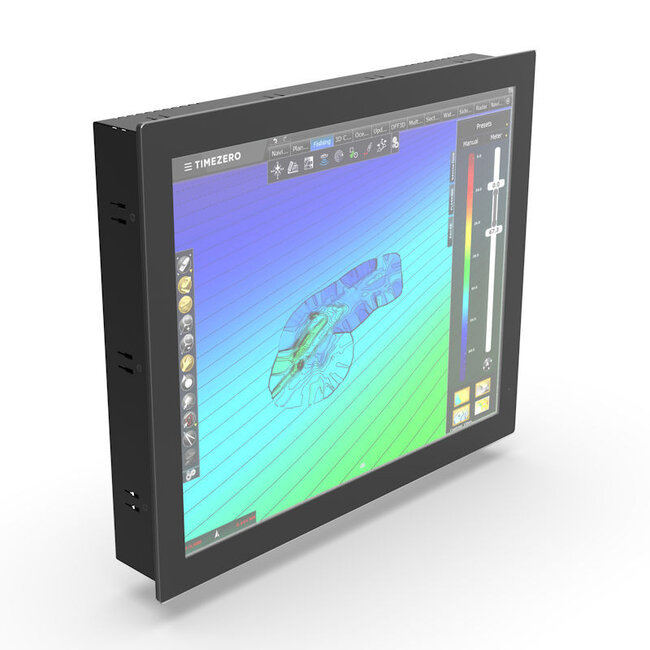

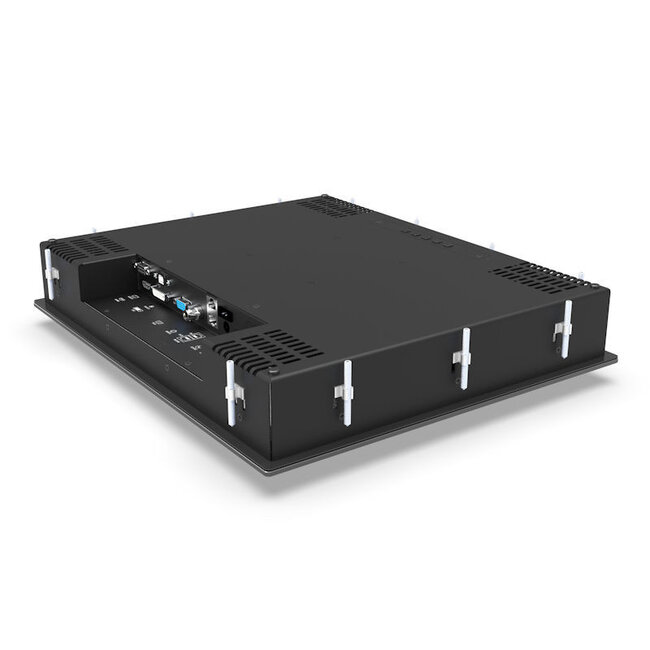

N-line N190KG 19" Full Glass Panel Mount with Multi Touchscreen, 9-36V, Dimming, Optical Bonding and Anti-Glare Glass

The Nottrot N-line N190KG is a rugged 19” full glass panel mount monitor built for optimal performance in marine environments. Featuring a durable steel body and waterproof full glass front, it is designed for flush mounting into control consoles on yachts, workboats, and fishing vessels. As part of Nottrot’s N-line series (available in 15” to 27”), the N190KG is a sleek, reliable solution for navigation systems, power monitoring, CCTV feeds, and onboard alarms.

This KG model comes equipped with an external dimming encoder, giving users intuitive control over brightness, power functions, and the on-screen display menu. Its projected capacitive touchscreen offers smooth, responsive interaction, while the optically bonded anti-glare glass ensures exceptional clarity, even in bright environments. Flexible dimming setups—whether external, central, or multi—make this display highly adaptable for marine installations.

FEATURES

• Sleek full glass front for flush console mounting

• Steel housing for marine-grade durability and waterproof performance

• Projected capacitive multi-touch touchscreen

• External dimming encoder for brightness, OSD, and power control

• Anti-glare and optically bonded glass for clear readability

• Ideal for navigation, CCTV, power systems, and onboard monitoring

• Flexible dimming options: external, central, or multi-monitor setups

• Available in screen sizes from 15” to 27”

SPECIFICATIONS

• Brand: Nottrot

• Model: N190KG

• Screen Size: 19”

• Resolution: 1280 x 1024 pixels

• Aspect Ratio: 5:4

• Brightness: 400 nits

• Optional High Brightness: 1500 nits

• Touch Panel: Projected capacitive touchscreen

• Power Input: 9~36VDC, galvanically isolated

• Front Panel Protection: IP68 (front only)

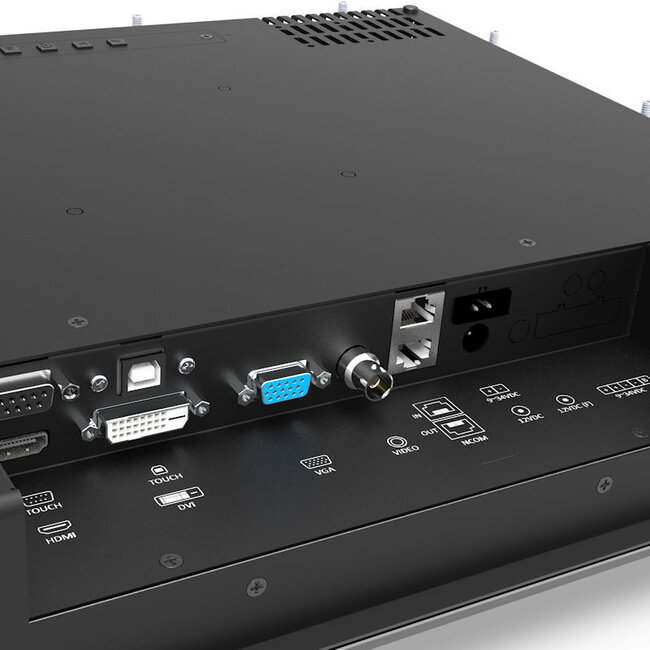

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)

• Dimming Control: External encoder; supports central and multi-dimming configurations

• Optional Accessories:

  • Mounting bracket (VESA) 100x100

  • V-Stand for monitors with 100x100 VESA bracket

BROCHURES

• N-line N190KG Product Sheet
• N-Line N190KG Product Dimensions
• N-Line User Manual
• Entire N-line front and cutout dimensions
