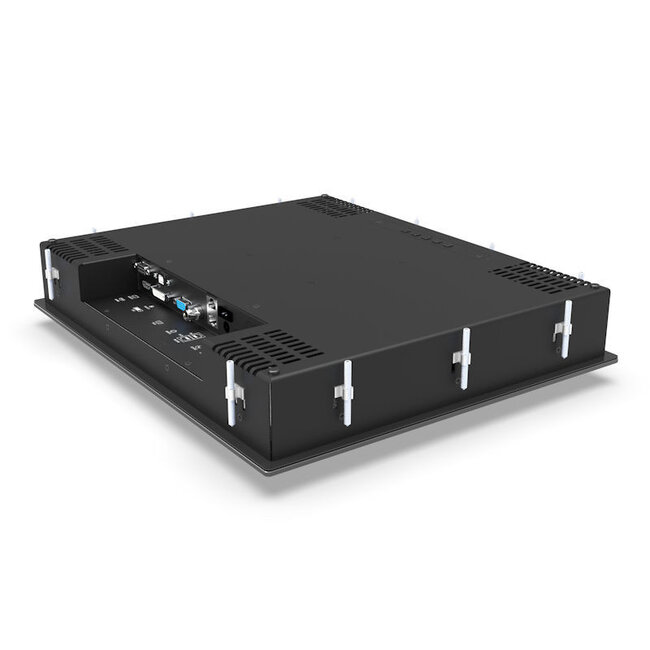

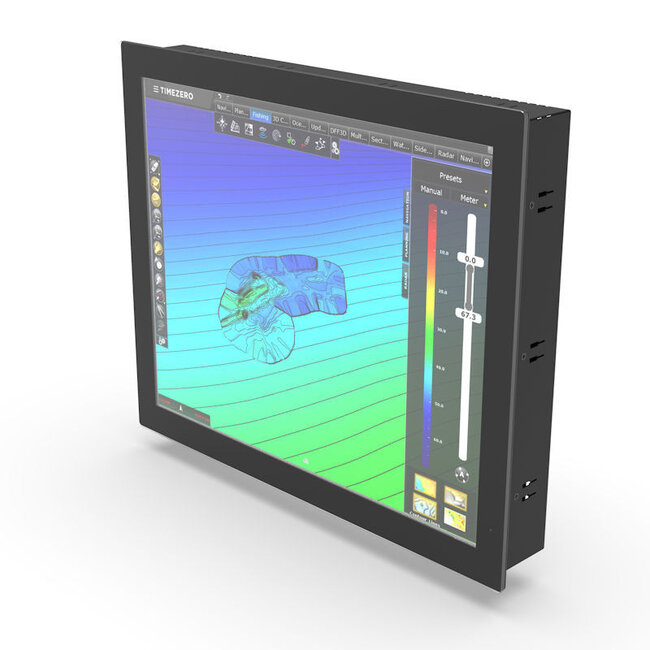

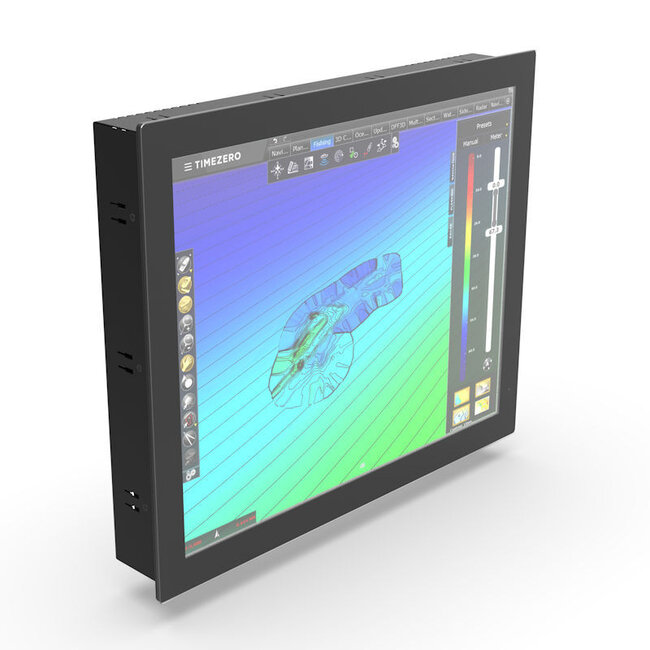

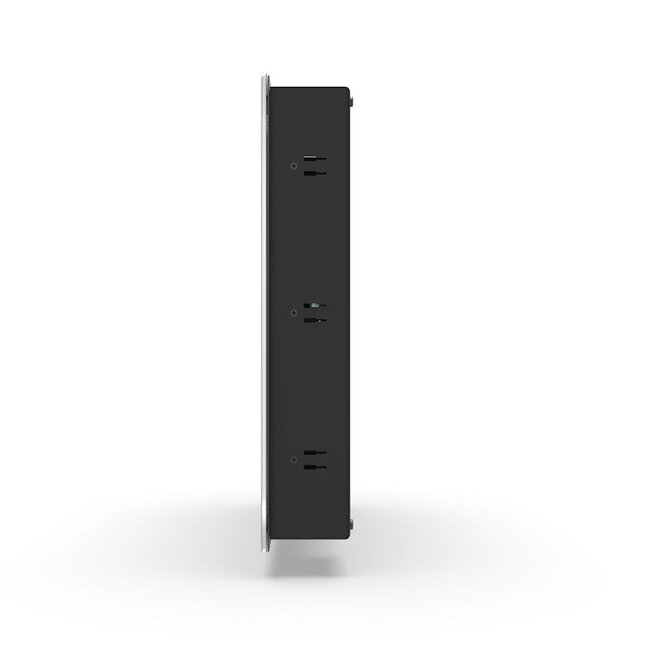

N-line N190KG 19" Full Glass Panel Mount with Multi Touchscreen, 9-36V, Dimming, Optical Bonding and Anti-Glare Glass – DNV Certified

The Nottrot N-line N190KG is a 19” full glass panel mount monitor designed for exceptional durability and visibility in maritime settings. With a sleek full glass front and rugged steel construction, it is engineered for flush console installation on yachts, workboats, and fishing vessels. As part of Nottrot’s N-line series (available in 15” to 27”), the N190KG is ideal for displaying navigation data, power management, CCTV feeds, and alarm and monitoring systems.

This KG model includes an external dimming encoder, giving users intuitive control over brightness, power functions, and OSD menu access. The projected capacitive touchscreen ensures smooth, multi-touch operation, while optically bonded anti-glare glass improves visibility in bright environments. Certified to DNV (IEC 60945) standards, the N190KG is a trusted solution for professional marine applications, with flexible dimming options to suit various setups.

FEATURES

• Flush-mount full glass front for sleek, waterproof integration

• Rugged steel housing built for harsh marine environments

• Projected capacitive multi-touch touchscreen

• External dimming encoder for brightness, power, and OSD menu control

• Anti-glare and optically bonded glass for optimal screen clarity

• Ideal for navigation, monitoring systems, CCTV, and power management

• Certified to DNV (IEC 60945) maritime standards

• Supports flexible dimming setups: external, central, or multi-display

• Available in screen sizes from 15” to 27”

SPECIFICATIONS

• Brand: Nottrot

• Model: N190KG

• Screen Size: 19”

• Resolution: 1280 x 1024 pixels

• Aspect Ratio: 5:4

• Brightness: 400 nits

• Optional High Brightness: 1500 nits

• Touch Panel: Projected capacitive touchscreen

• Power Input: 9~36VDC, galvanically isolated

• Front Panel Protection: IP68 (front only)

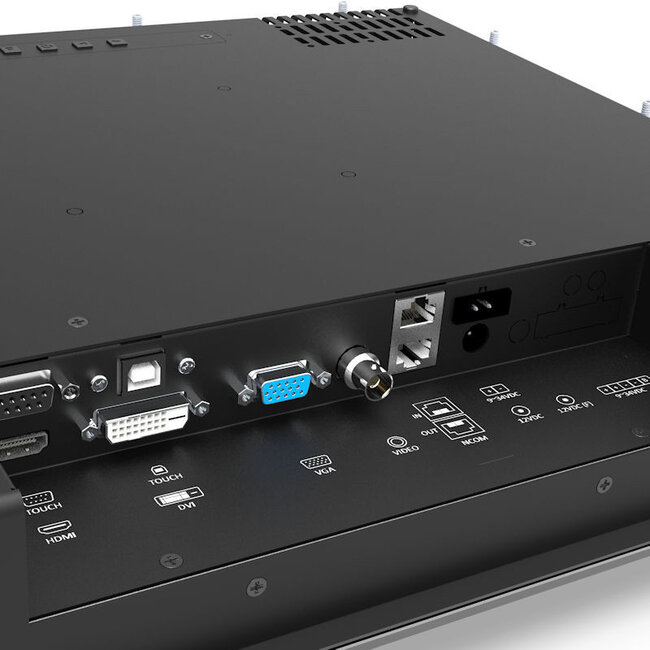

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)

• Dimming Control: External encoder; supports central and multi-dimming options

• Certification: DNV (IEC 60945)

• Optional Accessories:

  • V-Stand for monitors with 100x100 VESA bracket

BROCHURES

• N-line N190KG - DNV Product Sheet
• N-Line N190KG - DNV Product Dimensions
• N-Line User Manual
• Entire N-line front and cutout dimensions
