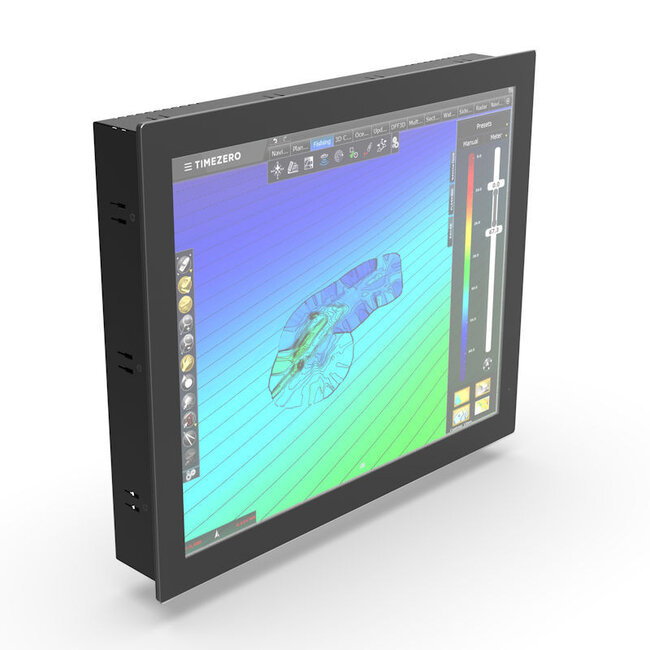

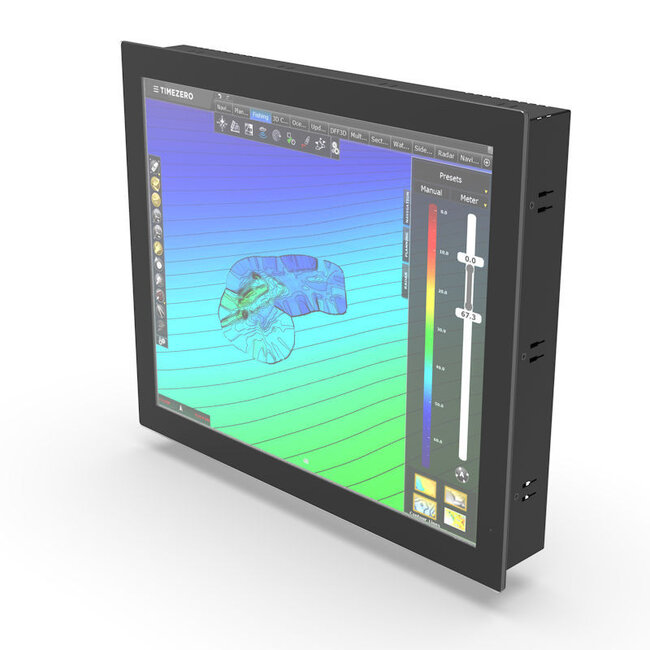

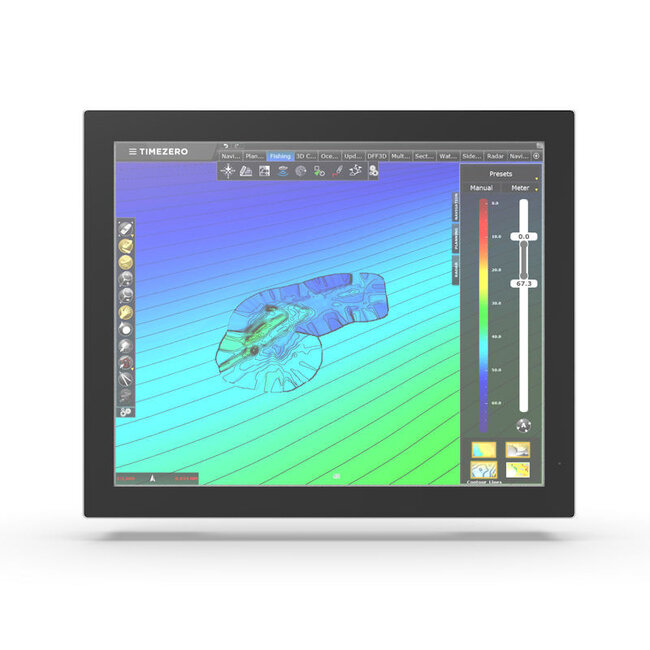

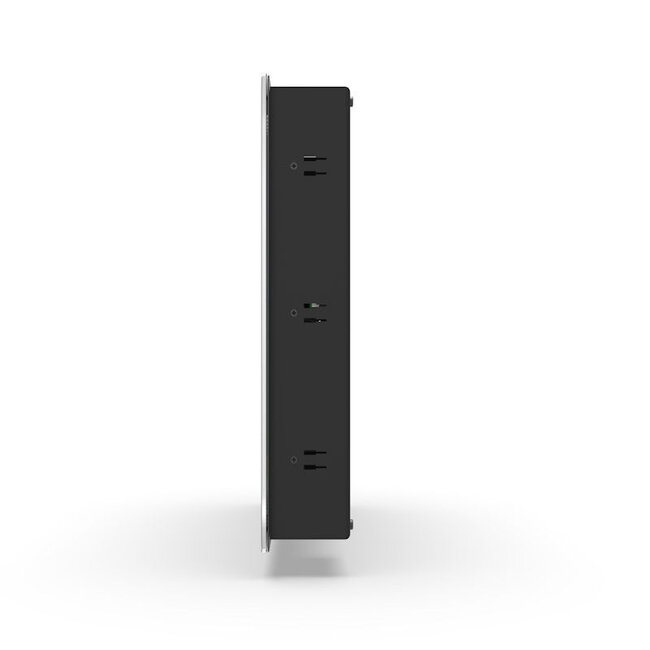

N-line N190KG 19" Full Glass Panel Mount with High Bright, Multi Touchscreen, 9-36V, Dimming, Optical Bonding and Anti-Glare Glass

The Nottrot N-line N190KG is a high bright 19” full glass panel mount monitor built to deliver crystal-clear visuals and reliable performance in marine environments. Designed for flush console integration on yachts, workboats, and fishing vessels, this monitor features a rugged steel housing and a waterproof full glass front. Part of the N-line series (available in 15” to 27”), it’s perfectly suited for displaying navigation data, alarm systems, CCTV footage, and power management interfaces.

This high bright version provides up to 1500 nits of brightness, ensuring outstanding visibility in direct sunlight or high ambient light conditions. The external dimming encoder enables intuitive control over screen brightness, power settings, and OSD functions. With a responsive projected capacitive touchscreen and optically bonded anti-glare glass, the N190KG offers smooth interaction and superior screen clarity. It also supports a variety of dimming configurations, making it an adaptable and high-performance solution for marine applications.

FEATURES

• High bright display (up to 1500 nits) for excellent visibility in sunlight

• Sleek, waterproof full glass front for flush panel integration

• Rugged steel housing built for maritime durability

• Projected capacitive multi-touch touchscreen

• External dimming encoder for brightness, power, and OSD menu access

• Anti-glare and optically bonded glass for enhanced readability

• Ideal for navigation systems, CCTV, alarms, and power monitoring

• Supports flexible dimming configurations: external, central, or multi-monitor setups

• Available in screen sizes from 15” to 27”

SPECIFICATIONS

• Brand: Nottrot

• Model: N190KG

• Screen Size: 19”

• Resolution: 1280 x 1024 pixels

• Aspect Ratio: 5:4

• Brightness: 400 nits

• Optional High Brightness: 1500 nits

• Touch Panel: Projected capacitive touchscreen

• Power Input: 9~36VDC, galvanically isolated

• Front Panel Protection: IP68 (front only)

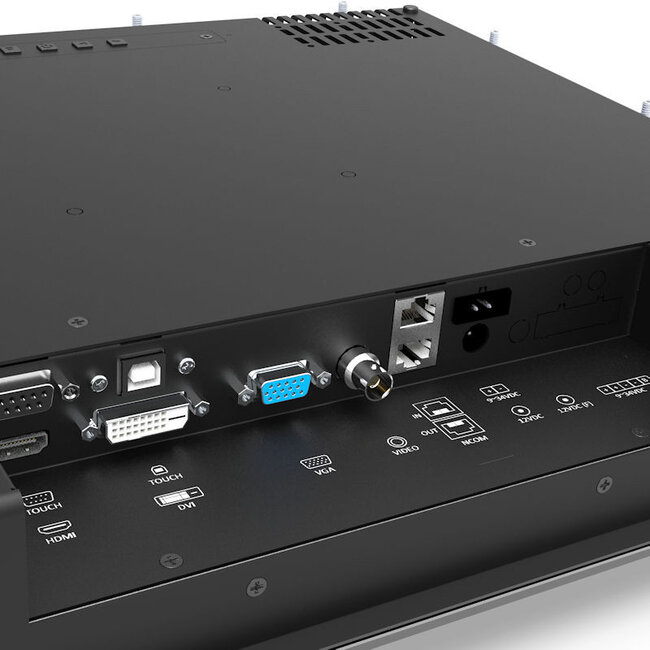

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)

• Dimming Control: External encoder; supports central and multi-dimming options

• Optional Accessories:

  • Mounting bracket (VESA) 100x100

  • V-Stand for monitors with 100x100 VESA bracket

BROCHURES

• N-line N190KG Product Sheet
• N-Line N190KG Product Dimensions
• N-Line User Manual
• Entire N-line front and cutout dimensions
