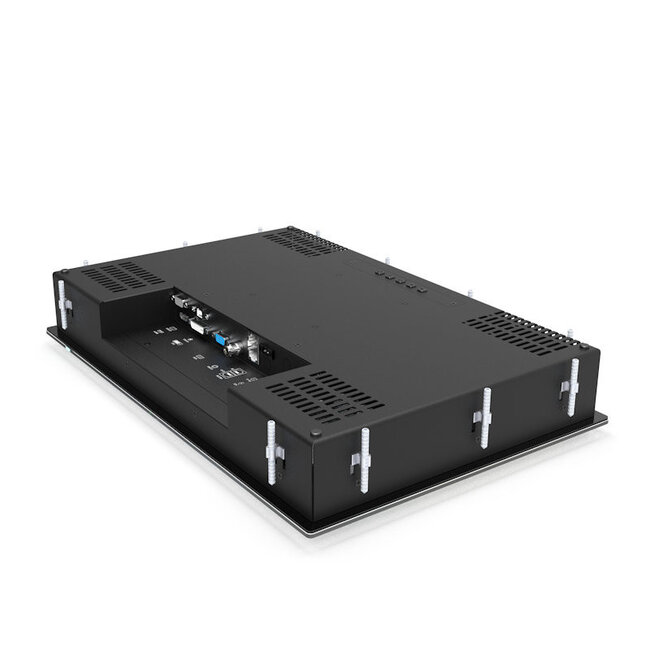

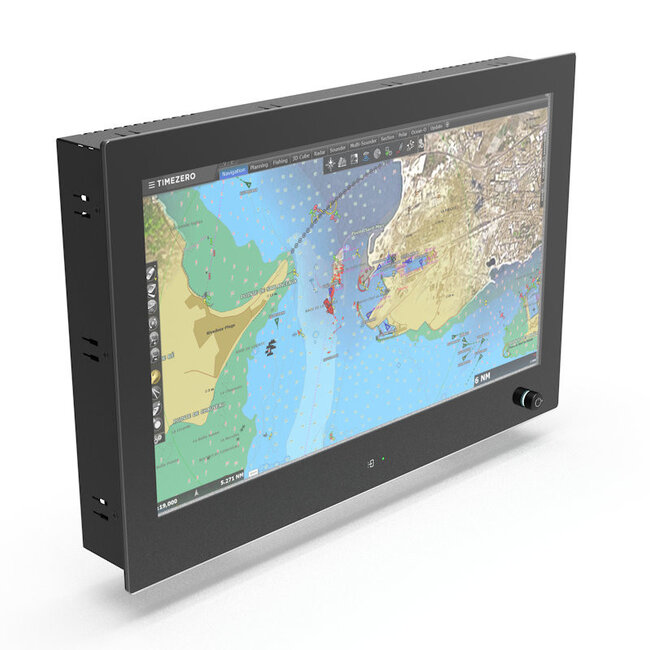

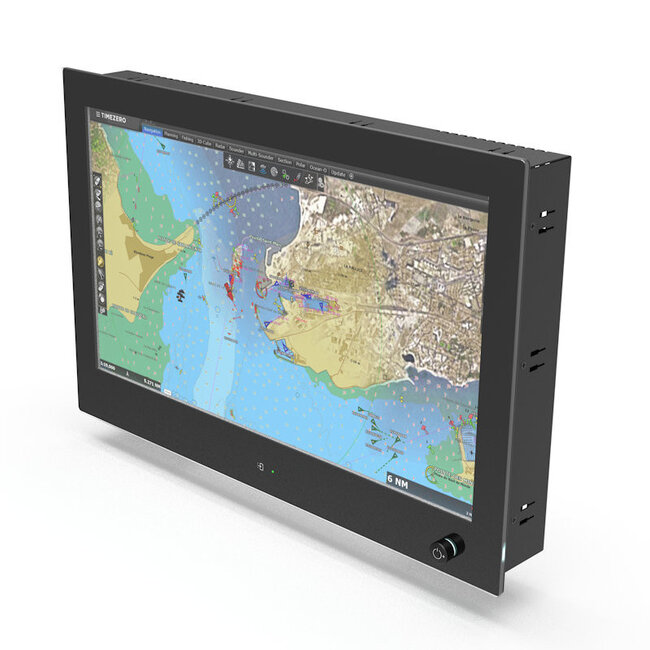

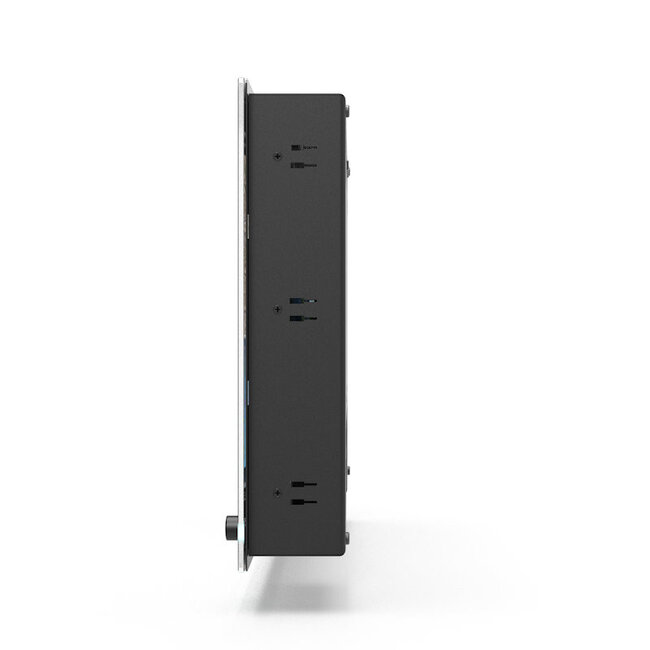

N-line N185KGE 18,5" Full Glass Panel Mount with Multi Touchscreen, 9-36V, Dimming, Optical Bonding and Anti-Glare Glass

The Nottrot N-line N185KGE is a robust 18,5” full glass panel mount monitor designed for high performance in maritime environments. With a steel body and a sleek, waterproof full glass front, it can be flush-mounted into a console, making it ideal for use on yachts, workboats, and fishing vessels. As part of the N-line series (available in 15” to 27”), it delivers a dependable and stylish display solution for navigation, CCTV, power monitoring, and alarm systems.

This KGE model features a front-mounted dimming encoder for easy control of brightness, power, and OSD settings. It also includes a capacitive switch at the bottom of the screen for switching video inputs. The projected capacitive touchscreen enables accurate multi-touch operation, while the optically bonded anti-glare glass ensures clear readability even in challenging lighting conditions. Built for versatility, the N185KGE supports various dimming setups and is ready to meet the needs of modern marine applications.

FEATURES

• Flush-mount full glass front with waterproof design
• Rugged steel housing built for maritime use
• Projected capacitive multi-touch touchscreen
• Integrated front dimming encoder for brightness and OSD control
• Capacitive switch for selecting video input (KGE model)
• Anti-glare and optically bonded glass for high visibility
• Suitable for navigation, CCTV, alarms, and system monitoring
• Flexible dimming options: front, external, central, or multi
• Available in multiple sizes (15”–27”)

SPECIFICATIONS

• Brand: Nottrot
• Model: N185KGE
• Screen Size: 18,5”
• Resolution: 1920 x 1080 pixels
• Aspect Ratio: 16:9
• Brightness: 500 nits
• Optional High Brightness: 1000 nits
• Touch Panel: Projected capacitive touchscreen
• Power Input: 9~36VDC, galvanically isolated
• Front Panel Protection: IP65 (front only)

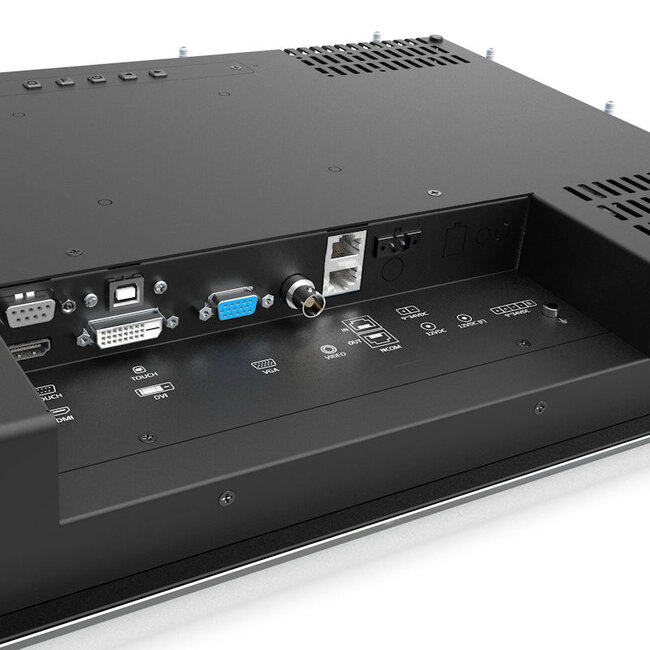

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)
• Dimming Control: Integrated encoder; optional external and multi-dimming configurations
• Capacitive Switch: Yes, for video source selection
• Optional Accessories:
  • Mounting bracket (VESA) 100x100
  • V-Stand for monitors with 100x100 VESA bracket
