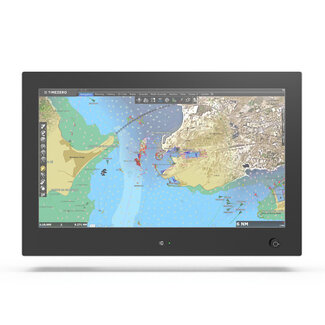

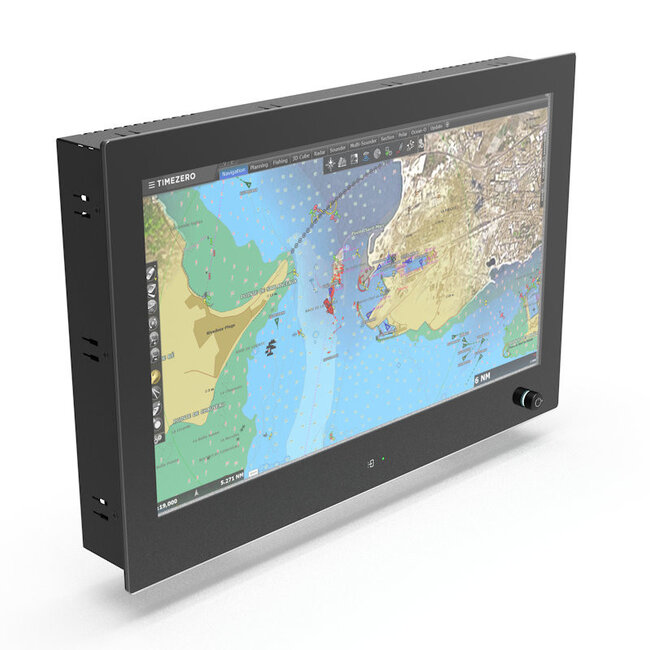

N-line N185KGE 18,5" Full Glass Panel Mount with High Bright, Multi Touchscreen, 9-36V, Dimming, Optical Bonding and Anti-Glare Glass – DNV Certified

The Nottrot N-line N185KGE is a high-performance 18,5” full glass panel mount monitor designed to withstand the demands of marine environments. Built with a durable steel body and a sleek full glass front, it is made for flush console mounting on yachts, workboats, and fishing vessels. As part of Nottrot’s N-line series (available in sizes from 15” to 27”), it delivers a robust and stylish solution for navigation, CCTV, alarm monitoring, and power management systems.

This high bright model features a screen brightness of up to 1000 nits, ensuring outstanding visibility in direct sunlight or brightly lit environments. The integrated front dimming encoder gives users direct control over brightness, power functions, and OSD navigation. The KGE variant includes a capacitive switch at the bottom of the monitor for convenient video input selection. Combined with projected capacitive touchscreen technology and optically bonded anti-glare glass, this monitor offers precise operation and excellent clarity. Certified to DNV (IEC 60945) standards, the N185KGE is ready for critical marine use.

FEATURES

• High bright screen (up to 1000 nits) for clear viewing in bright ambient light

• Sleek, waterproof full glass front for flush mounting

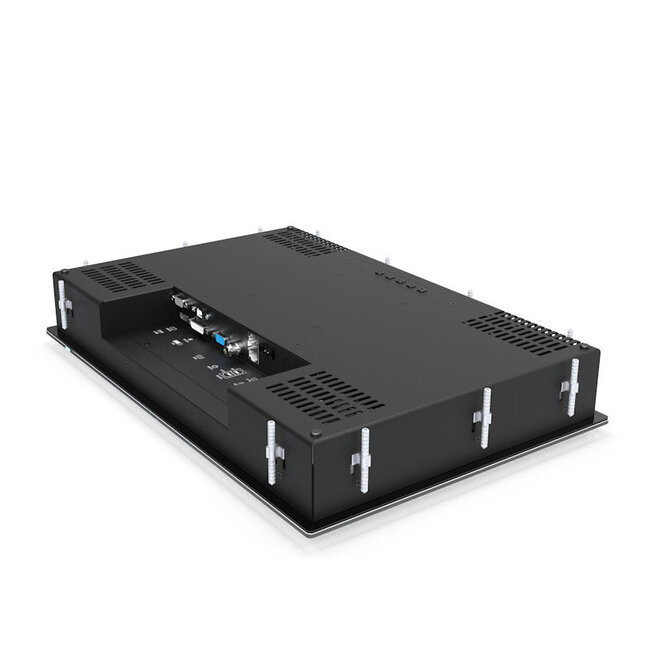

• Rugged steel housing designed for marine environments

• Projected capacitive multi-touch touchscreen

• Integrated front dimming encoder for brightness, power, and OSD control

• Capacitive switch for quick video input selection (KGE model)

• Anti-glare and optically bonded glass for optimal readability

• Ideal for navigation, CCTV, monitoring, and alarm systems

• Certified to DNV (IEC 60945) maritime standards

• Multiple dimming configurations supported: front, external, central, or multi

SPECIFICATIONS

• Brand: Nottrot

• Model: N185KGE

• Screen Size: 18,5”

• Resolution: 1920 x 1080 pixels

• Aspect Ratio: 16:9

• Brightness: 500 nits

• Optional High Brightness: 1000 nits

• Touch Panel: Projected capacitive touchscreen

• Power Input: 9~36VDC, galvanically isolated

• Front Panel Protection: IP65 (front only)

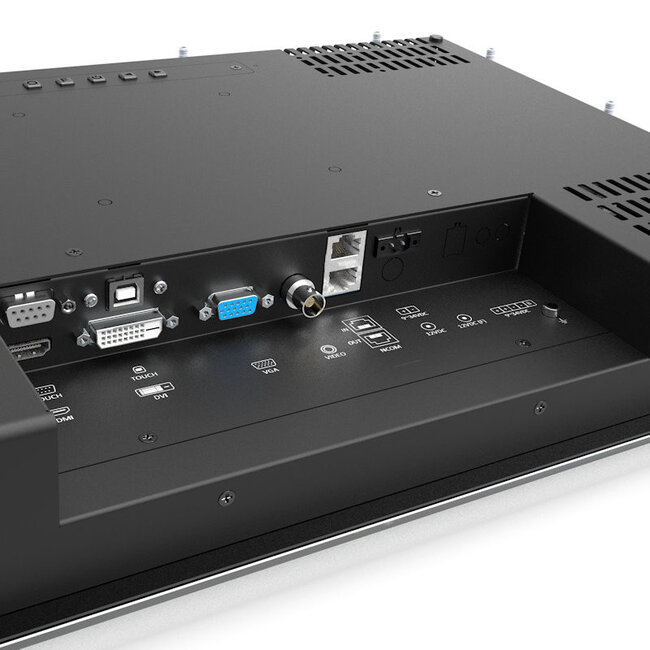

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)

• Dimming Control: Integrated encoder; supports external and multi-dimming options

• Capacitive Switch: Yes, for video source selection

• Certification: DNV (IEC 60945)

• Optional Accessories:

  • V-Stand for monitors with 100x100 VESA bracket

BROCHURES

• N-line N185KGE - DNV Product Sheet
• N-Line N185KGE - DNV Product Dimensions
• N-Line User Manual
• Entire N-line front and cutout dimensions
