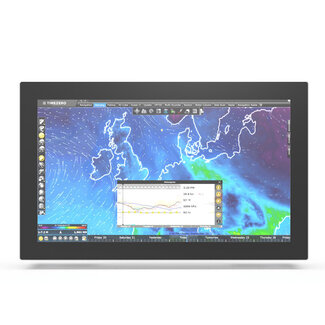

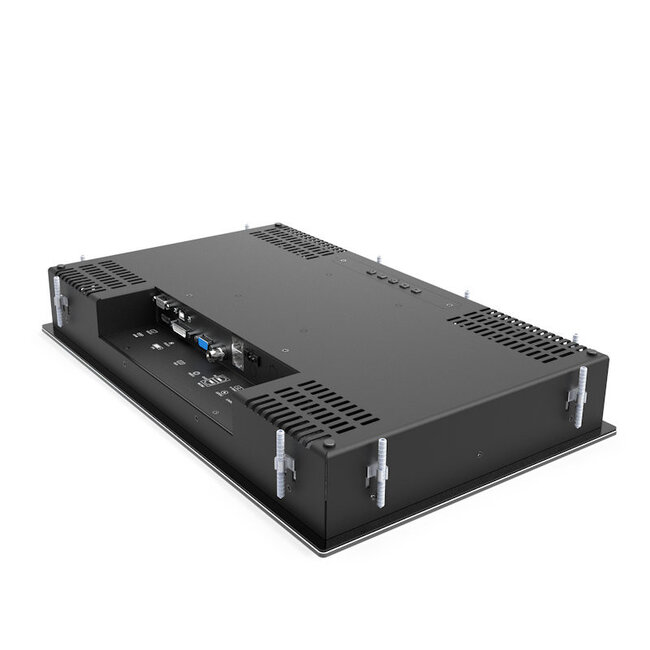

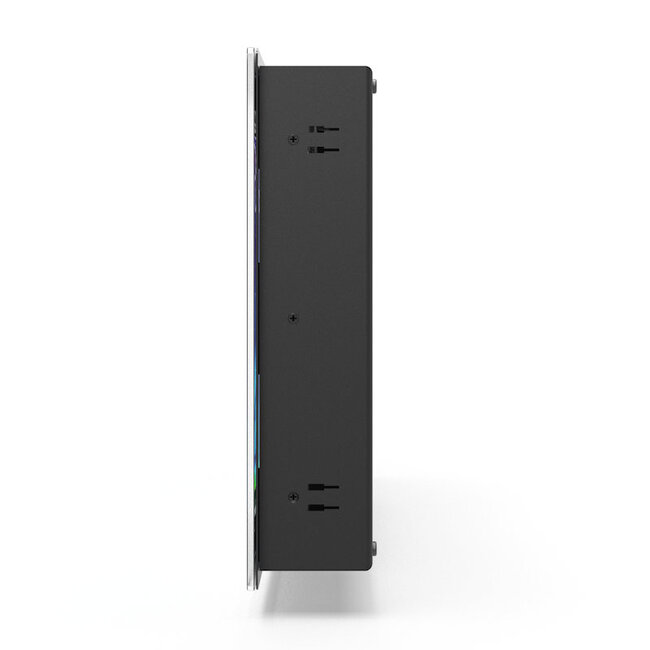

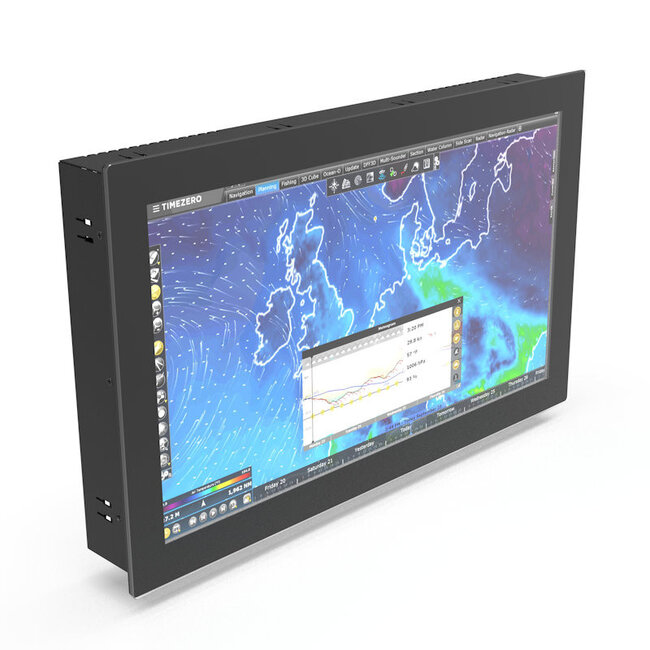

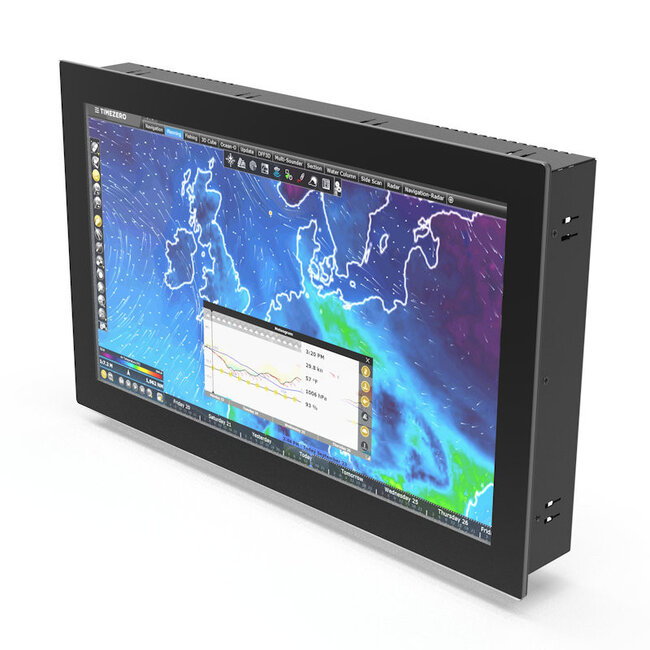

N-line N185KG 18,5" Full Glass Panel Mount with Multi Touchscreen, 9-36V, Dimming, Optical Bonding and Anti-Glare Glass – DNV Certified

The Nottrot N-line N185KG is a rugged 18,5” full glass panel mount monitor developed specifically for use in maritime environments such as yachts, workboats, and fishing vessels. With a robust steel body and a waterproof full glass front, it’s designed for flush console mounting, delivering a sleek and highly durable solution for professional onboard applications. As part of Nottrot’s N-line series (available in 15” to 27”), this model is ideal for displaying navigation data, power management, CCTV footage, and alarm systems.

This KG model includes an external dimming encoder, offering intuitive control over brightness, power functions, and OSD settings. The projected capacitive touchscreen allows precise multi-touch input, while the optically bonded anti-glare glass ensures clear readability, even in challenging lighting conditions. The N185KG is built for flexibility and endurance, supporting various dimming configurations and certified to DNV (IEC 60945) maritime standards.

FEATURES

• Flush-mount full glass front for a seamless marine installation

• Rugged steel housing designed for durability in harsh environments

• Projected capacitive multi-touch touchscreen

• External dimming encoder for power, brightness, and OSD menu access

• Anti-glare and optically bonded glass for maximum screen clarity

• Ideal for navigation, CCTV, alarms, and onboard monitoring systems

• Flexible dimming options: external, front knob, central, or multi-display

• Certified to DNV (IEC 60945) maritime standards

• Available in screen sizes from 15” to 27”

SPECIFICATIONS

• Brand: Nottrot

• Model: N185KG

• Screen Size: 18,5”

• Resolution: 1920 x 1080 pixels

• Aspect Ratio: 16:9

• Brightness: 500 nits

• Optional High Brightness: 1000 nits

• Touch Panel: Projected capacitive touchscreen

• Power Input: 9~36VDC, galvanically isolated

• Front Panel Protection: IP68 (front only)

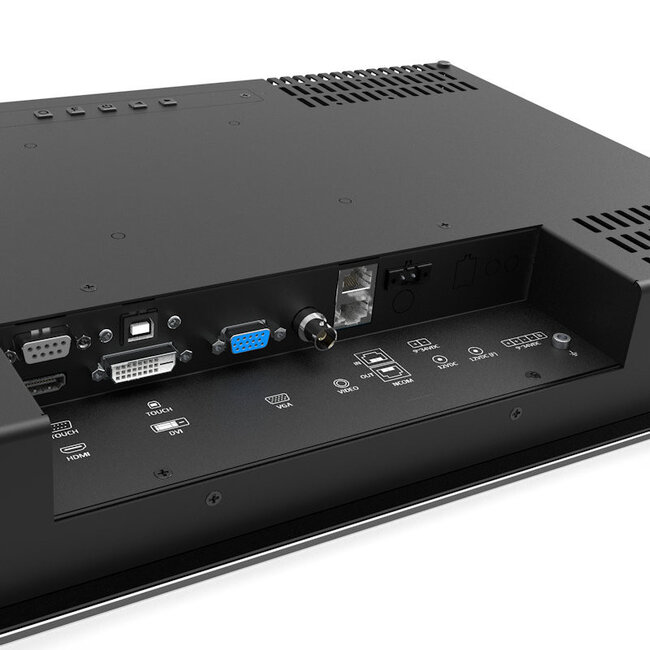

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)

• Dimming Control: External encoder; supports central and multi-dimming options

• Certification: DNV (IEC 60945)

• Optional Accessories:

  • V-Stand for monitors with 100x100 VESA bracket

BROCHURES

• N-line N185KG - DNV Product Sheet
• N-Line N185KG - DNV Product Dimensions
• N-Line User Manual
• Entire N-line front and cutout dimensions
