N-line N185KG 18,5" Full Glass Panel Mount with High Bright, Multi Touchscreen, 9-36V, Dimming, Optical Bonding and Anti-Glare Glass – DNV Certified

The Nottrot N-line N185KG is a high bright 18,5” full glass panel mount monitor purpose-built for high-visibility and durability in marine environments. With a robust steel body and waterproof full glass front, it is designed for flush-mount installation on yachts, workboats, and fishing vessels. As part of Nottrot’s versatile N-line series (available in 15” to 27”), it offers a professional and resilient solution for critical onboard applications such as navigation, CCTV, alarm systems, and power management.

This model features a high bright screen with up to 1000 nits of brightness, ensuring exceptional readability in direct sunlight or brightly lit bridge areas. The external dimming encoder provides convenient control over brightness levels, power functions, and access to the OSD menu. With a projected capacitive multi-touch interface and optically bonded anti-glare glass, the N185KG delivers a responsive and clear viewing experience. Fully certified to DNV (IEC 60945) standards, this model is built to meet rigorous marine requirements.

FEATURES

• High bright display (up to 1000 nits) for optimal readability in sunlight

• Sleek flush-mount full glass front with waterproof construction

• Rugged steel housing designed for marine durability

• Projected capacitive multi-touch touchscreen

• External dimming encoder for power, brightness, and OSD control

• Anti-glare and optically bonded glass for enhanced screen clarity

• Ideal for navigation systems, power management, CCTV, and vessel monitoring

• Flexible dimming configurations: external, central, or multi-display setups

• Certified to DNV (IEC 60945) maritime standards

• Available in screen sizes from 15” to 27”

SPECIFICATIONS

• Brand: Nottrot

• Model: N185KG

• Screen Size: 18,5”

• Resolution: 1920 x 1080 pixels

• Aspect Ratio: 16:9

• Brightness: 500 nits

• Optional High Brightness: 1000 nits

• Touch Panel: Projected capacitive touchscreen

• Power Input: 9~36VDC, galvanically isolated

• Front Panel Protection: IP68 (front only)

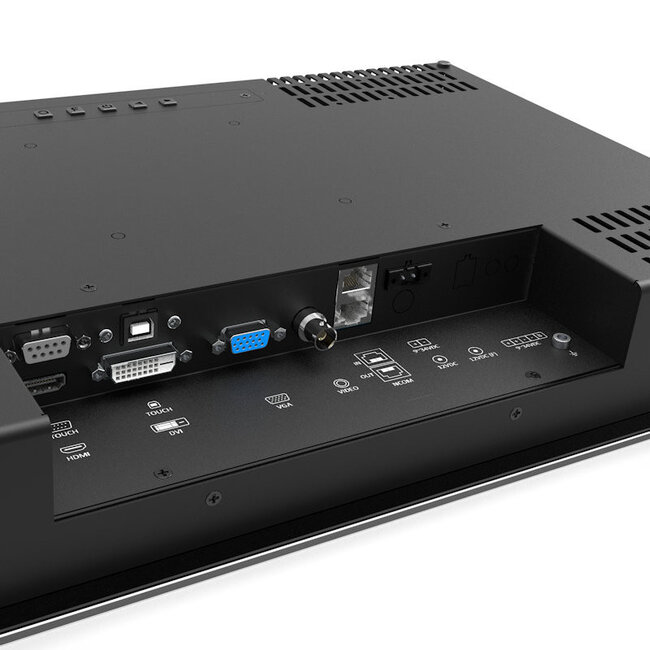

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)

• Dimming Control: External encoder; supports central and multi-dimming setups

• Certification: DNV (IEC 60945)

• Optional Accessories:

  • V-Stand for monitors with 100x100 VESA bracket
