N-line N156KGE 15,6" Full Glass Panel Mount with High Bright, Multi Touchscreen, 9-36V, Dimming, Optical Bonding and Anti-Glare Glass

The Nottrot N-line N156KGE is a high-performance 15,6” full glass panel mount monitor built for reliability and clarity in harsh maritime environments. Designed for flush mounting, it features a rugged steel body and waterproof full glass front, making it ideal for yachts, workboats, and fishing vessels. Part of the N-line series (available in sizes 15” to 27”), this model is suited for navigation systems, CCTV, alarm monitoring, and power management applications.

Equipped with a high bright display offering up to 1000 nits, this monitor ensures excellent readability in direct sunlight or brightly lit conditions. The integrated front-facing dimming encoder provides convenient control over brightness, power, and OSD functions. Additionally, the KGE model features a capacitive switch for seamless video input selection. With optical bonding and anti-glare glass, the N156KGE delivers superior visibility and performance across all marine environments.

FEATURES

• High bright screen option (up to 1000 nits) for optimal sunlight readability
• Full glass front for flush, waterproof panel mounting
• Durable steel housing built for marine applications
• Projected capacitive multi-touch touchscreen
• Integrated front dimming encoder for brightness and OSD control
• Capacitive switch for switching between video sources (KGE model)
• Anti-glare and optically bonded glass for enhanced clarity
• Suitable for navigation, alarms, CCTV, and monitoring systems
• Flexible dimming setup: front, external, central, or multi

SPECIFICATIONS

• Brand: Nottrot
• Model: N156KGE
• Screen Size: 15,6”
• Resolution: 1920 x 1080 pixels
• Aspect Ratio: 16:9
• Brightness: 500 nits
• Optional High Brightness: 1000 nits
• Touch Panel: Projected capacitive touchscreen
• Power Input: 9~36VDC, galvanically isolated
• Front Panel Protection: IP65 (front only)

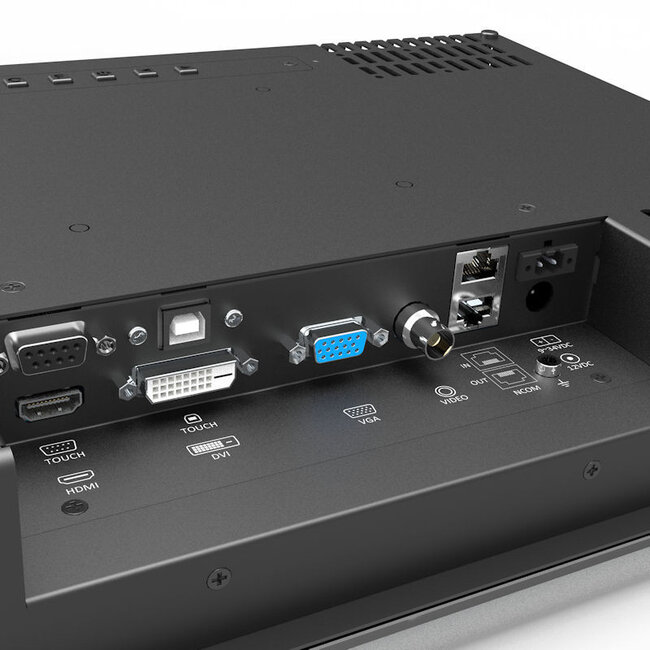

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)
• Dimming Control: Integrated front encoder; optional external and multi-dimming options
• Capacitive Switch: Yes, for video input selection
• Optional Accessories:
  • Mounting bracket (VESA) 100x100
  • V-Stand for 100x100 VESA-mounted monitors
