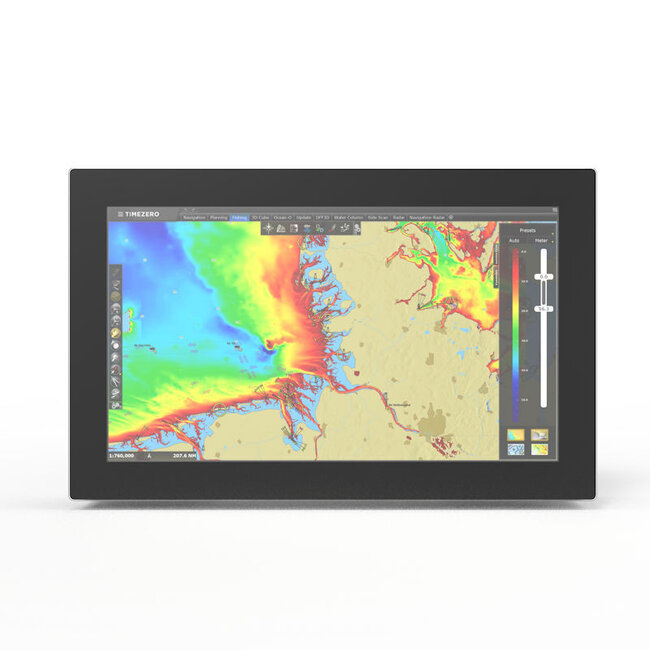

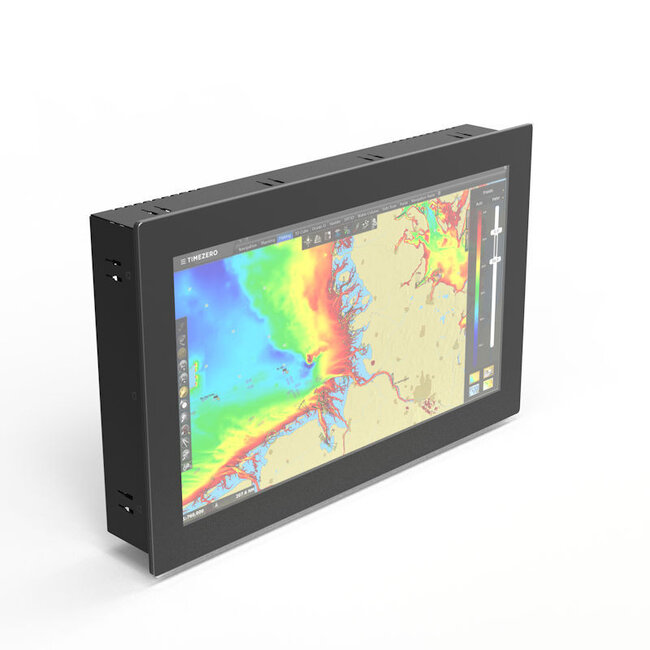

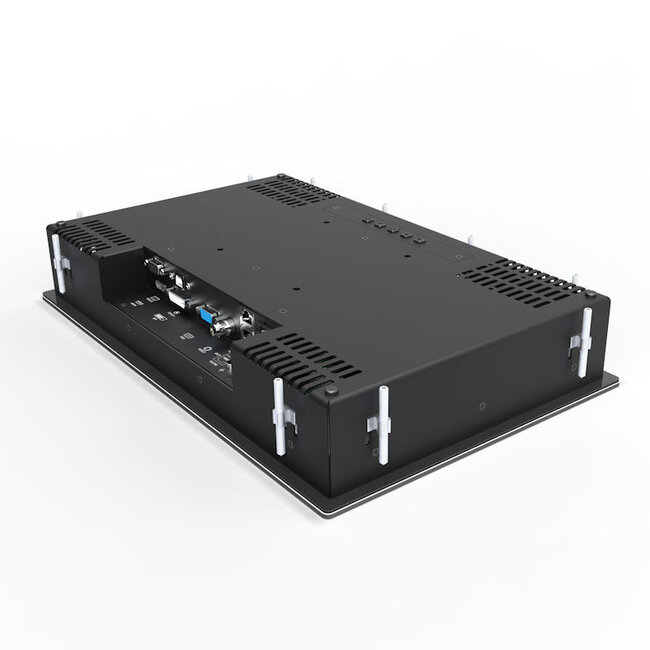

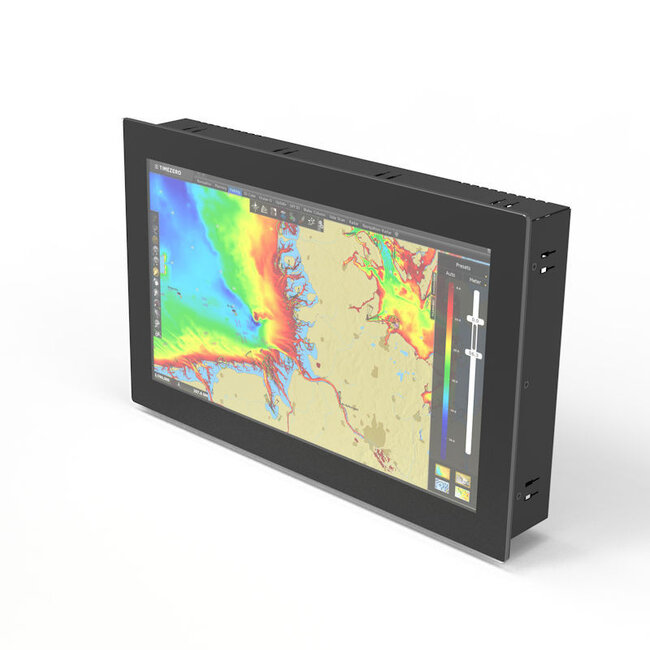

N-line N156KG 15,6" Full Glass Panel Mount with Multi Touchscreen, 9-36V, Dimming, Optical Bonding and Anti-Glare Glass – DNV Certified

The Nottrot N-line N156KG is a 15,6” full glass panel mount monitor purpose-built for marine environments. Designed for flush mounting, it features a durable steel housing and a waterproof full glass front, making it an ideal solution for yachts, workboats, and fishing vessels. As part of the N-line series (available in 15” to 27”), it is well-suited for navigation systems, CCTV, power management, alarms, and other onboard monitoring applications.

This KG model includes an external dimming encoder, giving users reliable control over brightness, power on/off, and the on-screen display menu. The projected capacitive touchscreen ensures responsive multi-touch performance, while the optically bonded, anti-glare glass provides excellent visibility in bright or reflective environments. With DNV (IEC 60945) certification, the N156KG meets stringent maritime standards and is adaptable to various dimming configurations to fit vessel-specific needs.

FEATURES

• Sleek full glass design for flush panel mounting
• Steel housing with waterproof front for harsh marine environments
• Projected capacitive multi-touch touchscreen
• External dimming encoder for power, brightness, and OSD control
• Anti-glare and optically bonded glass for improved readability
• Designed for navigation data, CCTV, power monitoring, and alarms
• Flexible dimming configurations: external, central, or multi-monitor setups
• Certified to DNV (IEC 60945) maritime standards
• Available in multiple sizes (15”–27”)

SPECIFICATIONS

• Brand: Nottrot
• Model: N156KG
• Screen Size: 15,6”
• Resolution: 1920 x 1080 pixels
• Aspect Ratio: 16:9
• Brightness: 500 nits
• Optional High Brightness: 1000 nits
• Touch Panel: Projected capacitive touchscreen
• Power Input: 9~36VDC, galvanically isolated
• Front Panel Protection: IP67 (front only)

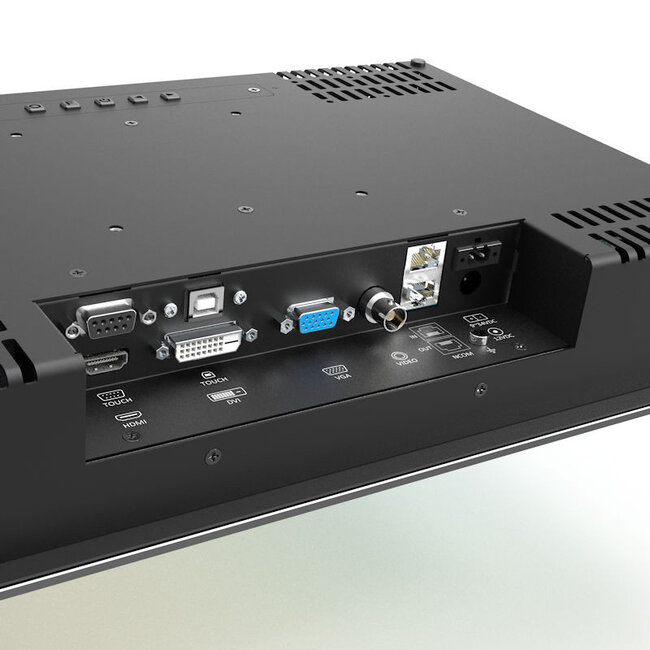

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)
• Dimming Control: External encoder; supports central and multi-dimming options
• Certification: DNV (IEC 60945)
• Optional Accessories:
  • V-Stand for monitors with 100x100 VESA bracket
