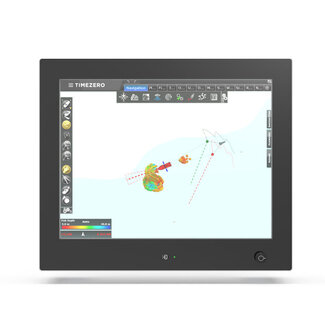

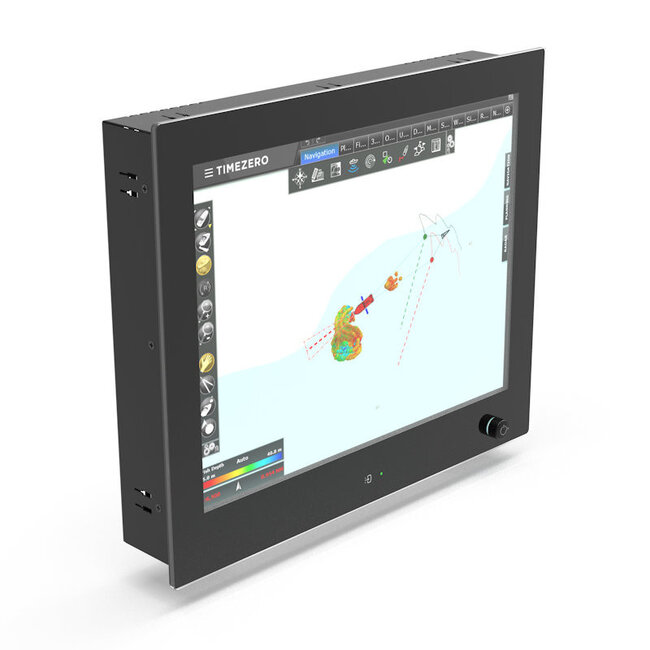

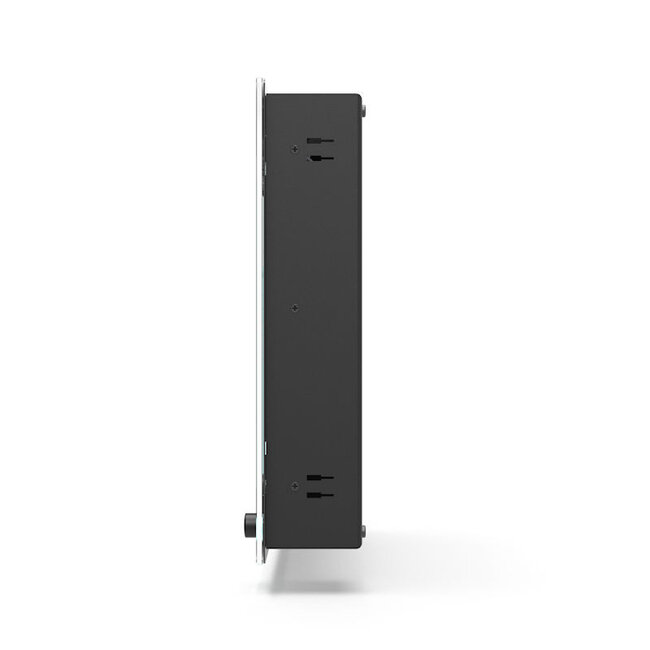

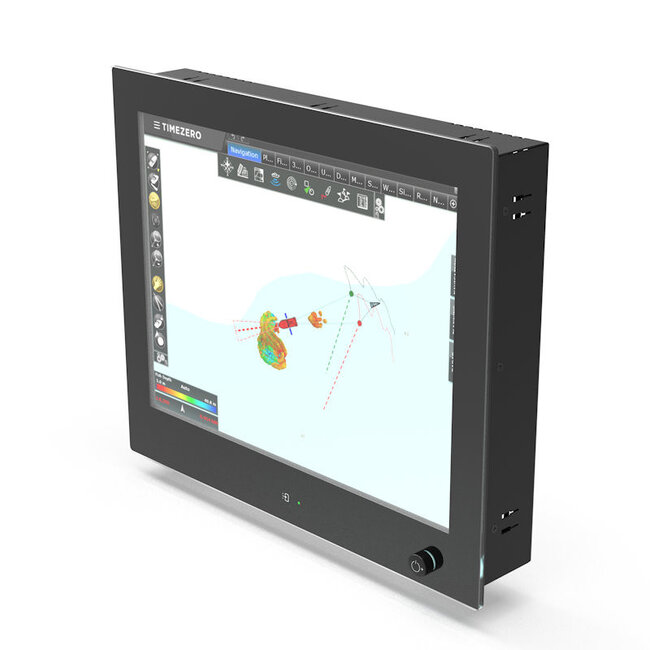

N-line N150KGE 15" Full Glass Panel Mount with High Bright, Multi Touchscreen, 9-36V, Dimming, Optical Bonding and Anti-Glare Glass – DNV Certified

The Nottrot N-line N150KGE is a robust 15” full glass panel mount monitor, engineered for reliable performance in harsh maritime environments. Designed for flush integration into consoles, its waterproof construction, steel body, and sleek full glass front make it ideal for vessels including yachts, workboats, and fishing boats. Whether used for navigation systems, CCTV footage, alarms, or power management, the N150KGE delivers a clear and dependable display solution.

This high-bright model is optimized for high-ambient light settings, offering up to 1500 nits of brightness, making it an excellent choice for use under direct sunlight or bright bridge lighting. The integrated dimming encoder on the front panel allows quick adjustments of brightness, power, and OSD menu access. The KGE variant also includes a capacitive switch for selecting video sources. Available in multiple sizes (15’’–27’’) and certified to DNV (IEC 60945) standards, it’s built to meet the demands of professional maritime applications.

FEATURES

• High bright display option for sunlight readability (up to 1500 nits)
• Sleek full glass design for flush mounting
• Steel body for marine durability and waterproof installation
• Multi-touch projected capacitive touchscreen
• Optical bonding and anti-glare glass for clear visibility
• Integrated front dimming encoder for brightness and OSD control
• Capacitive switch for video input selection (KGE model)
• Flexible dimming options: onboard, external, central, or multi dimming
• Designed for navigation systems, CCTV, alarms, and power monitoring
• DNV (IEC 60945) certified for maritime use

SPECIFICATIONS

• Brand: Nottrot
• Model: N150KGE
• Screen Size: 15”
• Resolution: 1024 x 768 pixels
• Aspect Ratio: 4:3
• Brightness: 500 nits (standard),
  Optional: High bright – 1500 nits
• Touch Panel: Projected capacitive multi-touch
• Power Input: 9~36VDC, galvanically isolated
• Front Panel Protection: IP65 (front only)
• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)
• Dimming Control: Front encoder; optional external or multi dimming setups
• Capacitive Switch: Yes, for switching video input (KGE model)
• Certification: DNV (IEC 60945)
• Optional Accessories:
  • V-Stand for monitors with 100x100 VESA bracket

BROCHURES

• N-line N150KGE - DNV Product Sheet
• N-Line N150KGE - DNV Product Dimensions
• N-Line User Manual
• Entire N-line front and cutout dimensions
