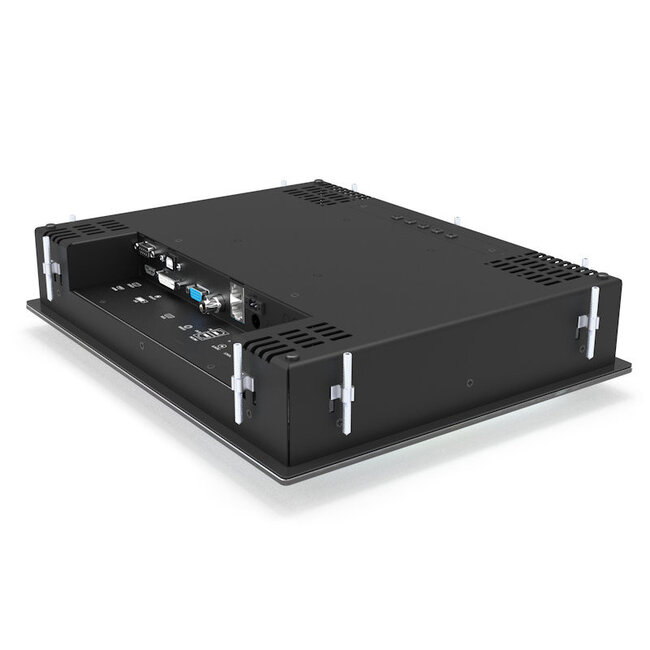

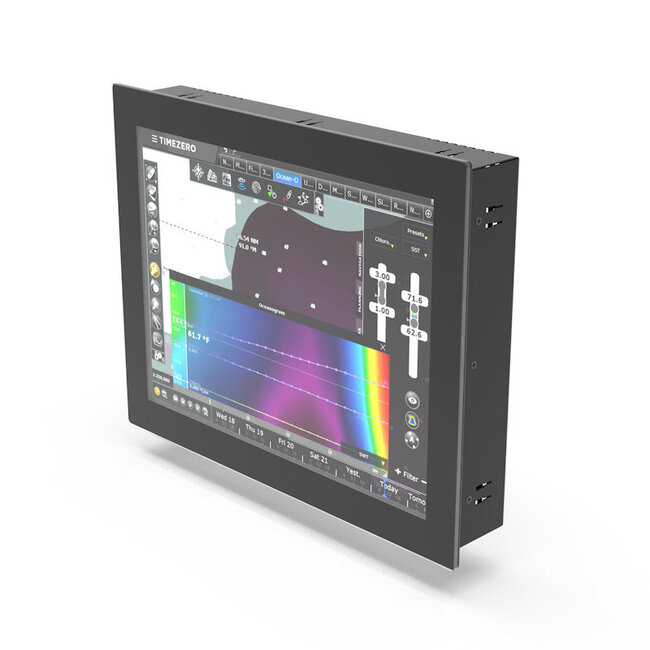

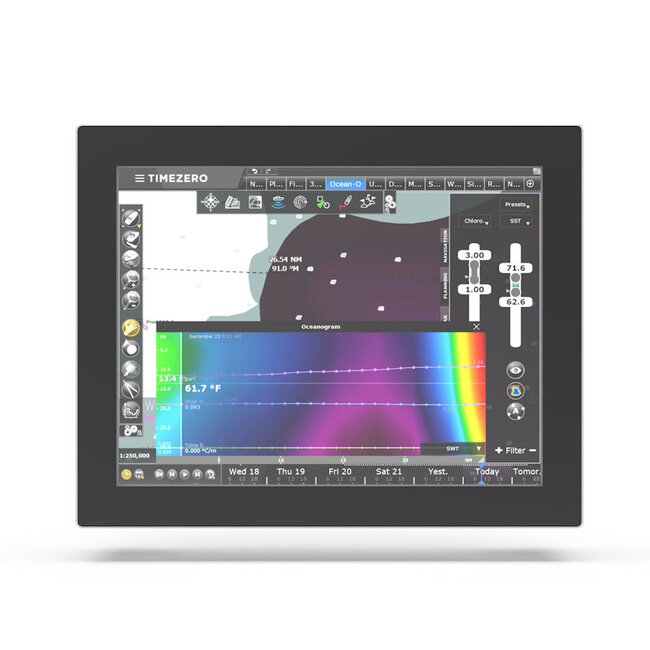

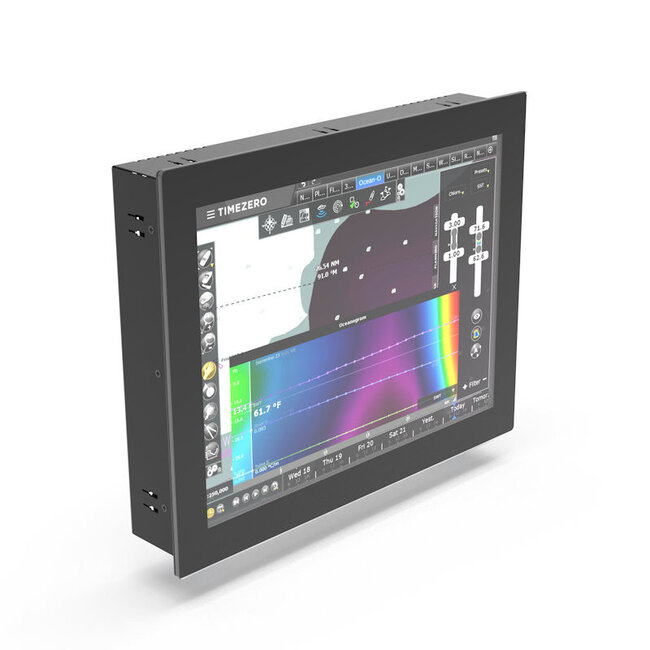

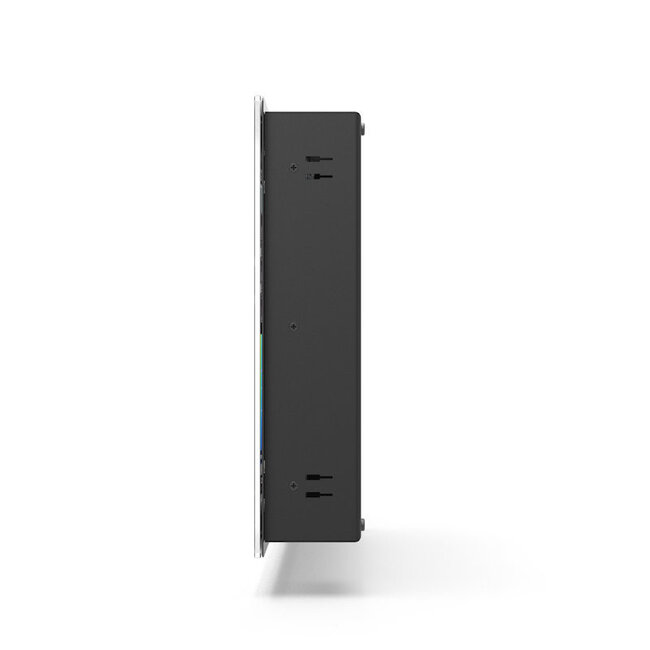

N-line N150KG 15" full glass panel mount with multi touchscreen, 9-36V, dimming, optical bonding and anti glare glass
The Nottrot N-Line full-glass panel mount monitors are designed but not limited to yachts, workboats, and fishing vessels, offering a sleek, durable display solution. With a steel body and a full glass front, the monitors can be flush-mounted into a console, making them waterproof and ideal for marine environments.
Nottrot's N-Line monitors are perfect for displaying navigation data, alarm and monitoring systems, power management, and CCTV footage, among other applications.
The N150KG model comes with an external dimming encoder, allowing users to control brightness, power on/off, and access the OSD (on-screen display) menu. Flexible dimming options are available to suit specific needs, whether through an external dimming knob, front dimming knob, or central/multi-dimming solutions.
For specific dimming requests or any questions, customers are encouraged to reach out.
FEATURES
- 15” full-glass panel mount design for seamless marine integration
- Steel body for durability and protection
- Projected capacitive touchscreen for precise interaction
- IP67-rated front for water and dust resistance
- External dimming encoder for brightness control, power functions, and OSD menu access
- Flexible dimming options, including: Front dimming knob; External dimming knob; Central & multi-dimming solutions
- Optical bonding & anti-glare glass for enhanced clarity and readability
- High-bright option with up to 1500 nits for optimal visibility in bright environments

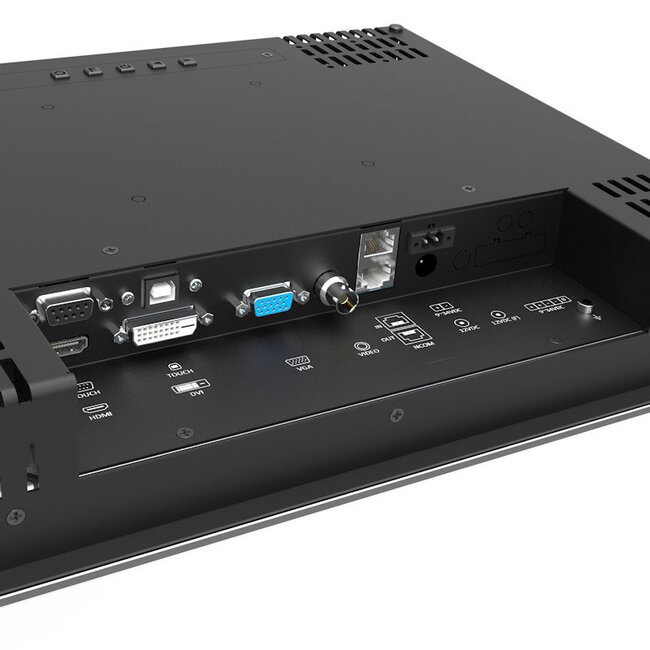

- Multiple video inputs, including HDMI, DVI-D, VGA, and CVBS (BNC)
- Mounting options, including: VESA bracket (100x100) (optional); V-Stand for monitors with a 100x100 VESA bracket (optional)
SPECIFICATIONS
- Brand: Nottrot
- Brightness: 500 nits (Optional high-bright 1500 nits available)
- Power input: 9~36VDC, galvanic isolated
- Screen size: 15’’ (Available in sizes 15” – 27”)
- Resolution: 1024 x 768 pixels
- Aspect ratio: 4:3
- Touch panel: Yes, Projected Capacitive Touchscreen
- IP rating: IP67 (front only)
- Standard video inputs: HDMI, DVI-D, VGA, CVBS (BNC)
- Optional mounting bracket: VESA 100x100
- Optional stand: V-Stand for monitors with a 100x100 VESA bracket
