TIMEZERO Mediterranean Sea - West Chart

WRMEM32MAP10.1 - Mediterranean Sea - West Chart

• Data Type : RASTER
• Chart Size : Wide
• Manufacturer : MAPMEDIA
• Latest Publish Date : October 8, 2023

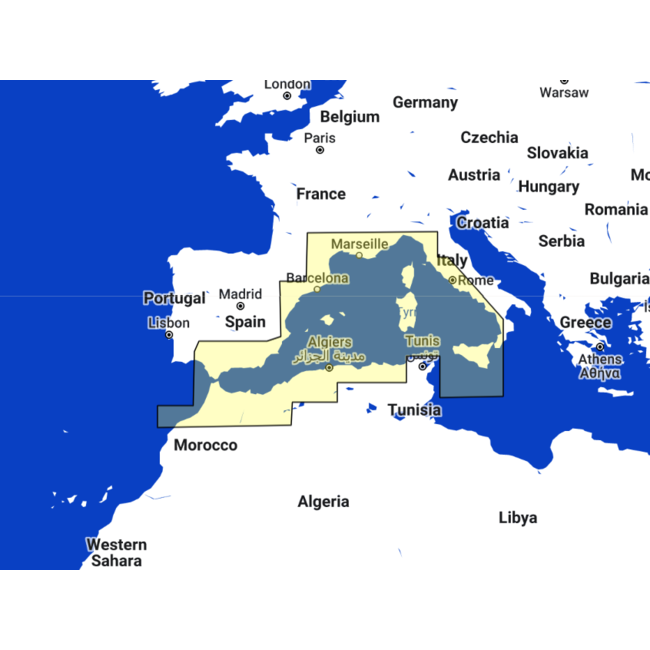

• Countries : Mediterranean Sea - Western Part: Western Italy, Southern France, Eastern Spain, Straits of Gibraltar, Northern Morocco, Algeria, Palma, Corsica, Sardegna - No Changes on North Africa area

FEATURES

Altimetry

TIMEZERO and Furuno NavNet(3D & TZT) use MapMedia.mm3d altimetry to portray the shoreline correctly. There are several benefits, such as fast identification of port entry or identification of certain shoreline characteristics. Altimetry also enables you to maneuver in a realistic perspective view with respect to the horizon.

Satellite Photographs

TIMEZERO and Furuno NavNet(3D & TZT) use satellite photos in an innovative and entertaining technique known as PhotoFusion. This innovative technology combines satellite photographs with raster or vector charts to deliver only the information required for safe navigation in a simple, realistic manner. Included with each .mm3d data pack is a standard resolution satellite photographs. Only select areas have high definition satellite photos. MapMedia continues to collaborate with data providers to expand and update the collection of satellite photographs.

Bathymetry

MapMedia .mm3d bathymetry is based on the visual interpretation of chart contour lines. This 3D model is highly useful while entering a port or harbor, offering another navigation tool to keep you aware of underwater threats.

VECTOR CHARTS VS RASTER CHARTS

(Vector: left side / Raster: right side)

Raster Charts:

Raster Charts are an identical representation of the traditional nautical paper charts, since they are digital scans of printed lithographic charts. This is ideal for users that have always used nautical paper charts because they are able to find the exact same information on screen.

Pros:

• Looks like a paper chart.
• Font size gets bigger when zooming in.
• More information regarding the shore like churches, beaches, streets, etc.
• The scale is clearly defined making it easier to judge distance by eye.
• Information about buoys and lighthouses are placed directly next to the objects.

Cons

• Zooming works in steps meaning a chart is enlarged until it jumps into the next scale.
• Specific information cannot be switched on or off.
• a computer is not able to interpret the picture so there are no alarm functions available.

Vector Charts:

Vector Charts are a rendering of a lithographic chart in a point-by-point format. Vector charts are composed of mathematically defined geometric shapes: lines, objects, and fills. The data is stored in a database and drawn on the computer or plotter screen by the software, making the display different from Raster Charts.

Pros:

• Easier to upload due to a smaller file size.
• It offers a modern a clean presentation.
• Gives you the possibility to switch on and off many layers to obtain only relevant information.
• It has a continuous (less step) zooming.
• You can switch on alarm functions.

Cons:

• When switching off a layer, you might miss relevant information.
• The font size is always the same size making it a bit more problematic for smaller screens.
• You can easily loose the overview scale since all zoom levels look similar.
• Scarce land information.
• If you need specific information about buoys or lighthouses you need to use a specific window.

Instructions

TimeZero:

• TimeZero Navigator
• TimeZero Pro

FURUNO:

• Furuno NavNet 3D
• Furuno NavNet TZT
• Furuno NavNet TZT2
• Furuno NavNet TZT3
