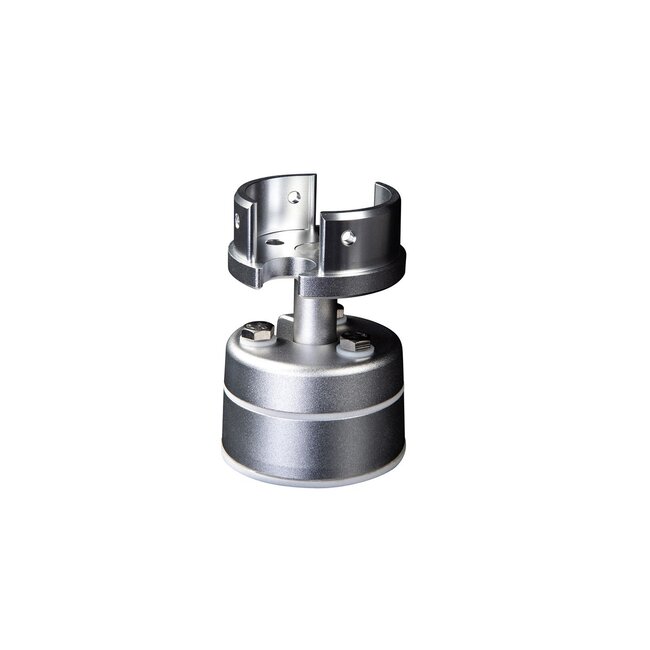

LMP-2 Self-levelling radar mount – pole

The LMP-2 Pole Leveller offers a versatile and efficient solution for radar installation, featuring a fine-tuned hydraulic damping system that reacts to significant changes in heel angle. With no power requirements and a maintenance-free design, it ensures optimal radar alignment at all times. Compatible with the latest radars from Furuno, the LMP-2 provides a practical alternative to mast mounting, reducing weight aloft and offering added installation flexibility.

The LMP-2 Pole Leveller is designed for sailors seeking a secure, flexible, and maintenance-free radar mounting solution. Its robust construction, adjustable installation options, and integrated cable management system make it ideal for various sailing vessels. With the ability to remove the pole for racing or storage, the LMP-2 combines convenience with top-tier performance and durability.

The product LMP-2 Radar pole is a high-quality item designed to meet your needs with optimal performance and reliability.

FEATURES

Reduce mast weight

Mounting the radar on a pole instead of the mast helps lower the vessel’s center of gravity, reduces mast weight, avoids sail chafe, and provides options to install additional equipment like lights or a crane on the pole.

Hydraulic damping

The levelling unit incorporates a fine-tuned hydraulic damping system that automatically adjusts to changes in the boat’s heel angle. It operates without power and requires no maintenance, ensuring reliable, long-term performance.

Bespoke mounting pole

The 2.5m (8.3’) SC100 pole features a unique extrusion design with two integrated cable channels and a cover strip to keep cables secure and out of sight, providing a clean, professional installation.

360° adjustable base

The anodized aluminium base allows full 360° adjustment, making it suitable for installation on both sloping transoms and flat decks. This flexibility ensures the pole can be securely mounted regardless of deck angles.

Secure installation

The LMP-2 comes with two support modules— a 1200 mm deck strut (standard) and a 25 mm rail stand-off— providing maximum fore/aft and sideways stability. Optional strut lengths (600 mm, 900 mm, and 1800 mm) are available to accommodate various installation needs.

Removable

For racing or off-season storage, the pole can be easily removed by unscrewing the base, leaving only a low-profile base plate on the deck.

SPECIFICATIONS

Weight:

• Total system: 4.5 kg (9.9 lbs) (approximate including pole and support struts)

Pole Dimensions:

• Length: 2.5 m (8.3’)
• Diameter: 3” (76.2 mm)
• Cable Channels: Dual integrated channels with cover strip

Mounting Base:

• Base Diameter: 83 mm (3.27”)
• Bolt Circle Diameter: 60 mm (2.36”) with 3 x M8 mounting holes
• 360° adjustable for sloping or flat deck installations

Support Modules:

• Deck strut (standard): 1200 mm (47.2”)
• Optional lengths: 600 mm, 900 mm, 1800 mm
• Rail stand-off: Fits 25 mm (1”) rail (standard), with 32 mm (1.25”) clamp option
• Maximum rail clamp width: 164 mm (6.4”)

Dome Offset:

• Approximate offset: 150 mm (5.9”) from pole centerline

Radar Scanner Clearance:

• Vertical clearance: 235 mm (9.3”)
• Horizontal clearance: 88 mm (3.46”)

COMPATIBLE DEVICES

BROCHURES

• LMP-2 Installation Instructions
• LMP-2 Technical Drawing
