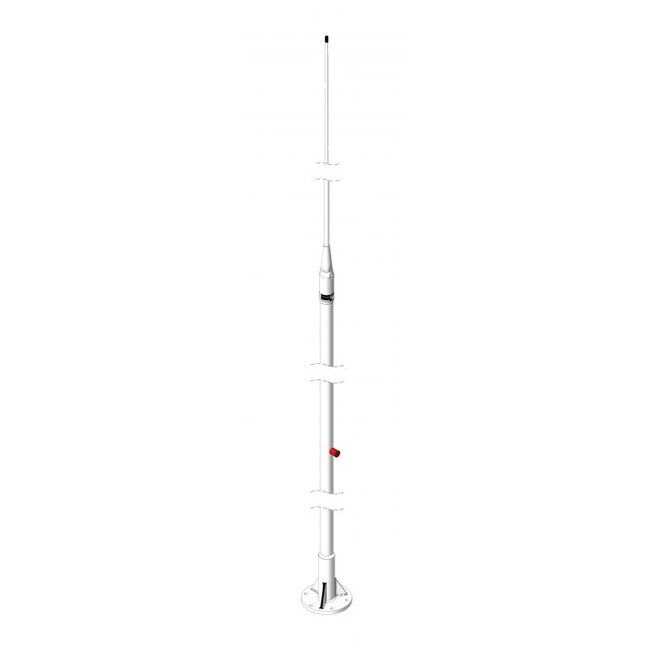

KUM950-1DMC

The KUM950-1DMC is a 2-section omnidirectional side-fed HF transceiver antenna for automatic antenna tuned systems for both commercial vessels and leisure. The antenna is manufactured in premium quality materials in order to prevent galvanic corrosion. Radiating elements are made of copper. The antenna is manufactured using crimping technology giving the antenna a 4-5 times stronger build-up. Installation via the integrated deck mount. The antenna has been sold worldwide for more than five decades. The antenna is subject for improvement at all times. The antenna has the same rugged design as all other AC Antennas products thus it withstands harsh environmental conditions, both on sea and land.

SPECIFICATIONS

ELECTRICAL SPECIFICATIONS:

• Part No: 295010-P
• Product Name: KUM950-1DMC
• Product Group: HF/SSB
• Frequency Range [MHz]: 1.4-30
• Connector: Sidefed CoaxTerminal
• Max. Input Power [Watt]: 1200 PEP

MECHANICAL SPECIFICATIONS:

• Sections: 2
• Length [m/ft.]: 9.00/29.60
• Weight [kg/lbs.]: 9.40/20.80
