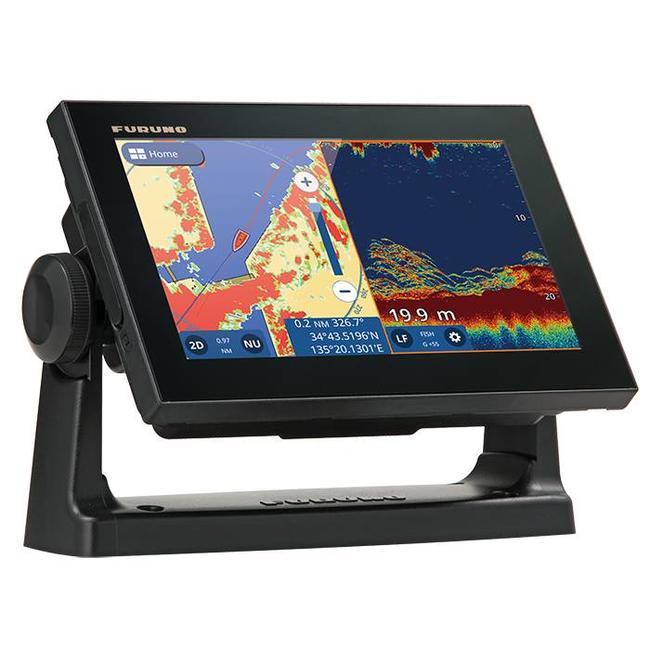

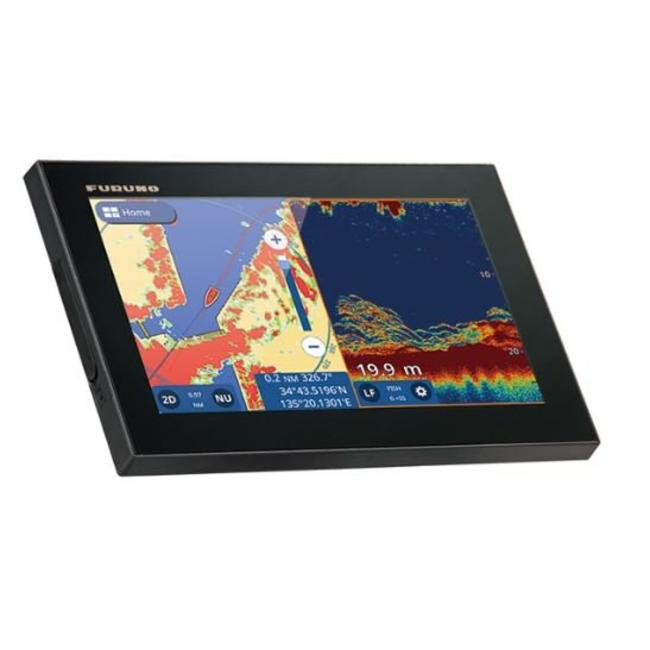

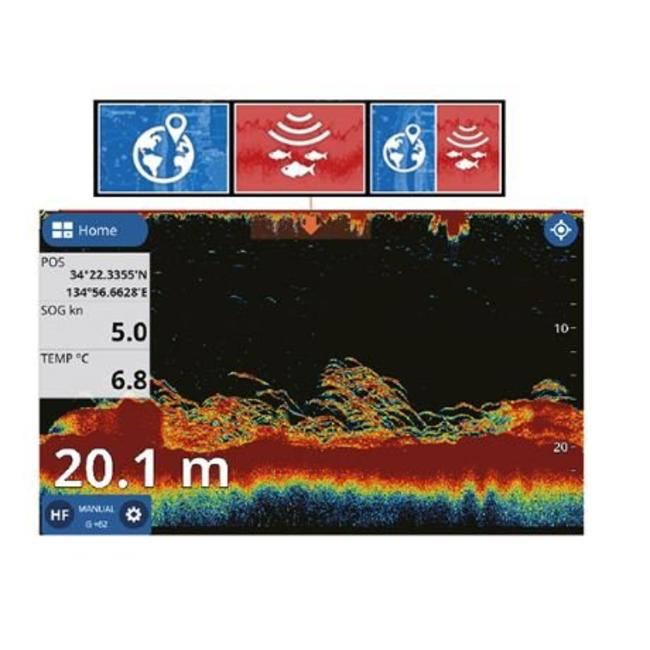

FURUNO GP-1971F 9 inch Chartplotter with CHIRP Fishfinder /GPS/WAAS

GP-1971F Chartplotter with Touch Color LCD Multifunction display

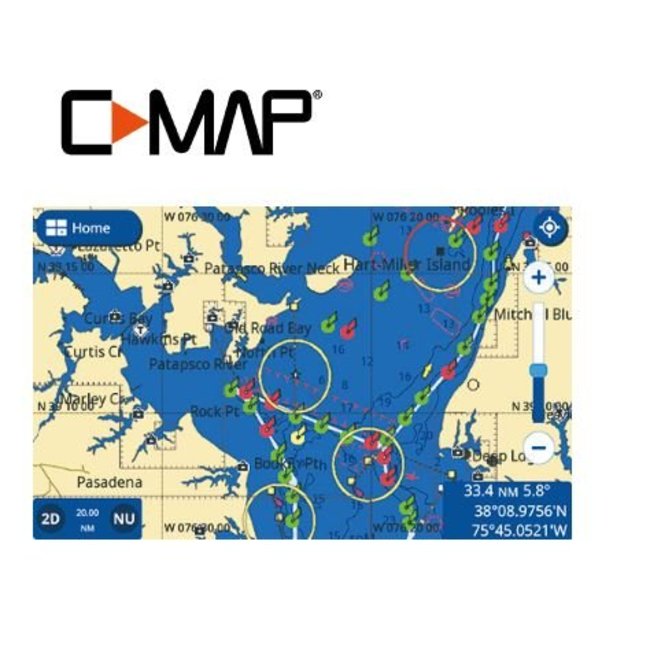

The Furuno GP-1971F chartplotter is a compact - completely buttonless - multifunctional display with unprecedented possibilities and a sublime readability in bright sunlight. Extremely suitable for smaller and medium-sized vessels within all types of water sports. All functions are controlled via the touch screen with AF Anti fet fingerprint : chartplotter, wifi radar, CHIRP fishfinder and instruments. AIS data can also be read in via CANbus (NMEA-2000) and displayed on the chart, radar image or combination of both. It is also possible to connect an autopilot from the NAVpilot-300 and -700 series. The position picks the plotter either from the internal GPS receiver or from the on-board network. Suitable for the highly detailed C-Map 4D sea charts.

Users of the Furuno GP-1971F benefit now from all recent developments in the larger Furuno plottersystems.

Scope of delivery:

• 9 inch color display
• power cable
• bracket
• standard mounting material

Features:

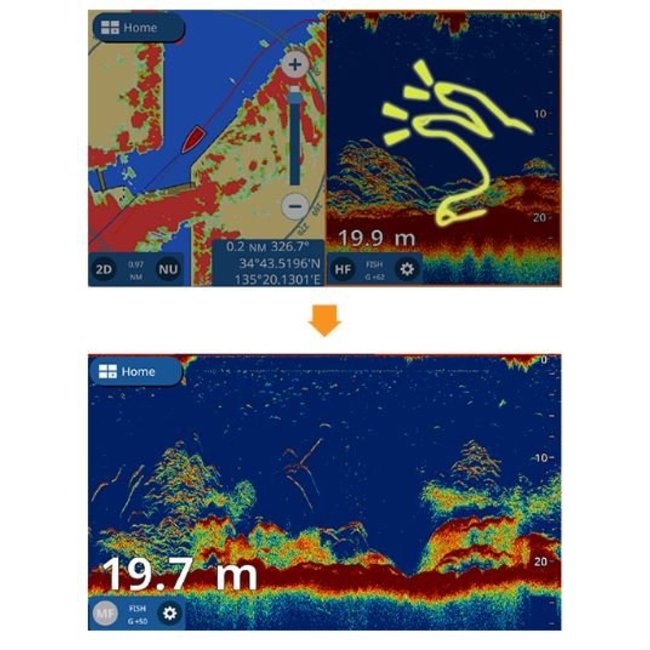

• 9 inch touch screen (movements identical to Apple iPad)
• Brightness 1.000 cd / m²,
• Resolution: 800 x 480 pixels
• Anti-reflection layer and protected against greasy fingerprints
• Modes: chartplotter, radar, fishfinder, AIS, instruments, autopilot
• Mirrow Control Function, page wide instrument overview incl. ROT
• Control via smart phone (update 3 download at Furuno.com))
• Connections 1 NMEA 2000, 1 NMEA0183
• Intern 72-channel GPS receiver.
• 30.000 positions for waypoints and tracks
• 1.000 routes (max 50 waypoints)
• 5.000 quickpoints (markings)
• CHIRP broadband echo sound function, 40 to 225 kHz *
• Dual frequency echo sounder function 50/200 kHz *
• Power 300-1.000 watts, depending on the transducer *
• Autogain, manual gain; depth range 0-500 m

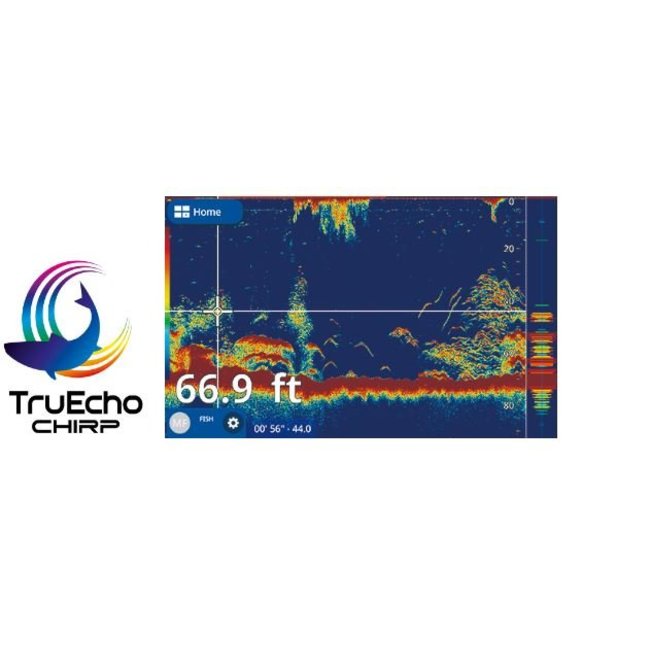

• Modes: TrueEcho CHIRP, RezBoost, ACCU-FISH
• Connections 1 NMEA2000, 1x NMEA183, 1TNC Connector
• 2 micro SD card slots
• attention C-Map chart on SD necessary

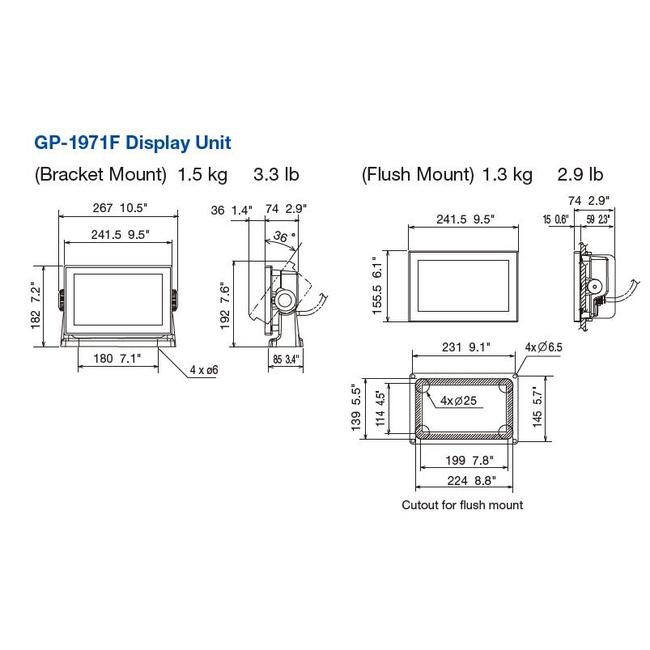

• Dimensions: 152 x 217 x 74 mm (HxWxD)
  Supply voltage: 12-24 V DC
• Power consumption: 5-10 watts
• Weight: 1.1 kg
• Splashproof (IP 56)

C-Weather data can be downloaded from C -map.com with information about Wind, Wave, Weather, Humidity and Temperature.

See here GP-1971 Chartplotter settings for use

Update easy via wireless LAN

Via the CAN-bus network interface, the NAVpilot-300 and the NAVpilot-711C can be connected to the GP-1871F  or GP-1971F Chartplotter and controlled directly from the Chartplotter

Wireless Connection to Smartphone and tablet

View your GP-1871F/1971F screen on your tablet or smartphone.
At any time, you can watch the sea conditions or use the GP-1871F/1971F's functions remotely from another location on the boat.

OPTIONAL :

C-Map 4 D card required See here Please tell us which one you need

Scanpod SPH-9W voor stuurstand-montage

Transducer when necessary to order separately

Navpilot-300 Autopilot

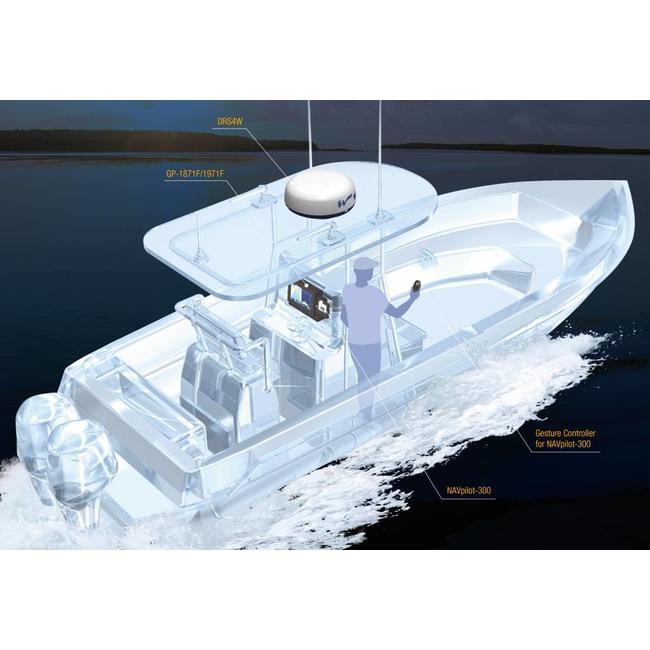

The Furuno DRS4W WLAN radar connection gives the GP-1971F chart plotter an enormous improvement in accuracy and of course safety, the most important thing for you when sailing.

The NAVpilot-300 connection

Via the CAN bus network interface, The NAVpilot-300 and NAVpilot-711C can be connected to the GP-1871F and GP-1971F and controlled directly from the Chartplotter.

Download brochure here from de GP-1971F Chartplotter

Installation Manual GP-1871F and GP 1971F
