WHY DO YOU NEED AN INTERCOM with TALK-BACK and Loudspeaker?

You want to be safe on the water, alert and prepared for the unexpected. Ships at sea have VHF or SSB radio for direct two-way communication, a chart plotter to determine the exact position and a radar to warn them of hazards in the sailing area.

However, none of this is of great use if you cannot draw attention to your vessel. This is when you need a intercom with loudspeaker, the only tool available to you when you need to warn nearby ships because you are in trouble with your ship and want to make your presence heard without wasting time.

YOUR SAFETY REQUIRES PERFECT COMMUNICATION

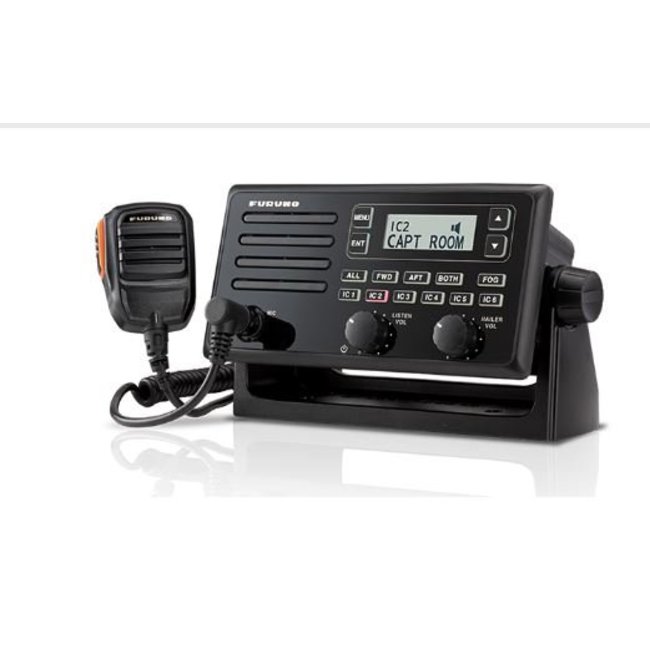

With the new LH-5000 Intercom with talk-back Loudspeaker ISP-5000 you can immediately draw the attention to your vessel by generating voice or one of the eight internationally recognized horn warning signals. This allows you to immediately notify nearby ships of your presence and status, regardless of limited visibility, such as dense fog. The LH5000 intercom can use up to six powerful intercom speakers with an output of 30 watts each.

The FURUNO LH5000 system can be connected to onboard intercom speakers. Because the intercom function is a completely independent function of the LH5000, you don't have to worry about the warning signals that are sent via the special two-way intercom speakers! You can still communicate with your crew in any situation.

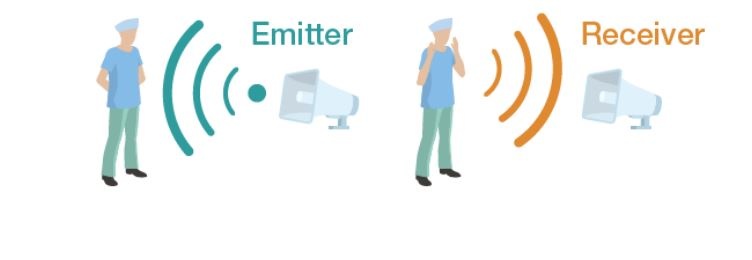

The intercom LH5000 can also collect distant sounds and amplify them through the built-in speaker. This feature, called Listen Back, is incredibly useful for the captain to hear voices from the docks, the deck or even from other nearby ships.

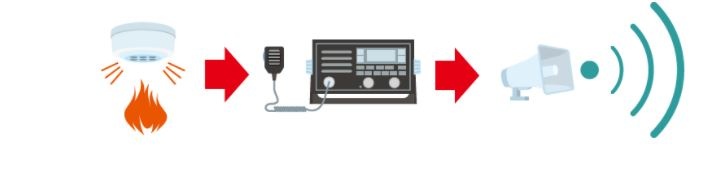

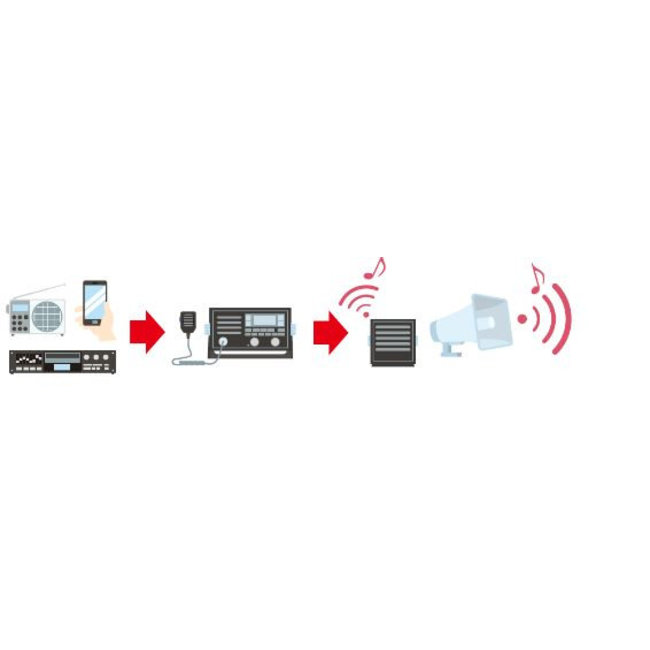

Other features are the Siren mode, which can be connected to the ship's fire detection system and an alarm mode, which is good when it comes to theft detection. You can even connect your smartphone and radio so that your desired music can be heard everywhere via the handset and intercom speakers. Easily coordinate all actions through one point, no matter how big the ship or building is.

Maximum 6 intercoms for communication on board and public address

Features

• Hail, Intercom, Alarm functions available
• Listen back feature for two way communication
• Built-in high quality speaker for Intercom and Hailer Listen capability

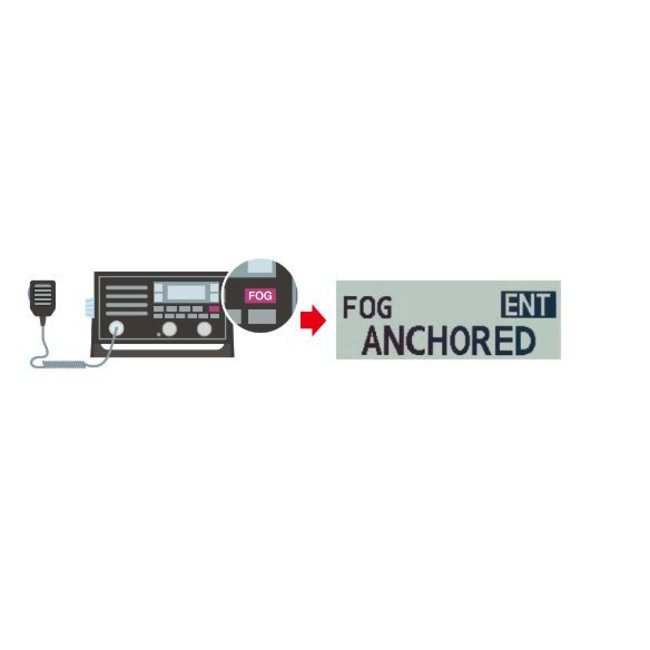

• Eight fog/warning signals
• Up to 6 intercoms are connectable for two-way communication between master and specific remote or all remote stations
• Auxiliary audio input
• 2 powerful 30 Watt of Hailer outputs
• 12 VDC, 280 mA
• Bright LCD for easy operation
• flush mount capability
• Waterproof IP 67

Technical specification:

• Hailer 30 W, 8 ohms
• Microphone input impedance 600 ohms
• Intercom speakers 5.0 W, 8 ohms
• Internal speaker 2.5 W, 8 ohms
• External speaker 5.0 W, 8 ohms
  Temperature -15 ° C to + 55 ° C
• IP67 sealing
• Dimming ability 5 to 100%
• Built-in alarm for the power supply

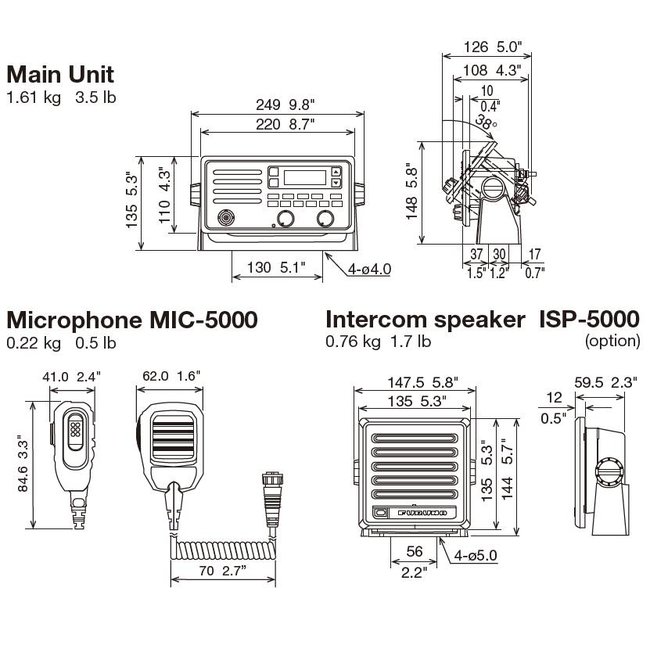

• Dimensions: 35 x 25 x 26 cm
• Weight: approx. 2 kg

Siren Mode

With the Siren Mode, you only have to turn on a switch to automatically emit a warning signal. You can hail and communicate with intercoms as wel



                                   Scope of delivery LH-5000 intercom:

• Intercom operating unit LH-5000
• 1 x Microphone MIC-5000
• Installation Materials and Spare Parts
• 12VDC

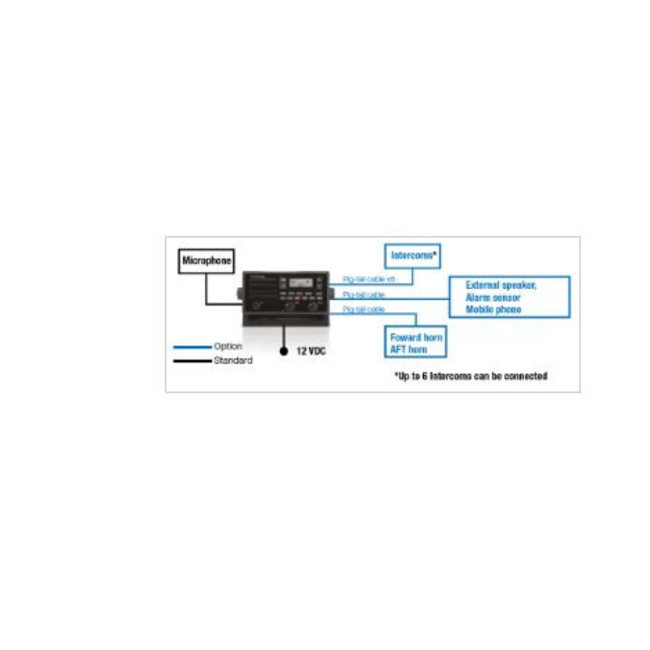

• Connections : 2 x horn loudspeaker 30W/ 6 x intercom ISP 5000

Options:

• intercom loudspeaker ISP-5000
• Extension cable for 5000 Microphone length 5m
• HP-30 horn loudspeaker 30W/8Ohm
• DC-Wandler 24-12V, 12A



For Recreational Boats For Fishing Vessels For Workboats

Brochure LH-5000 intercom with talk-back
