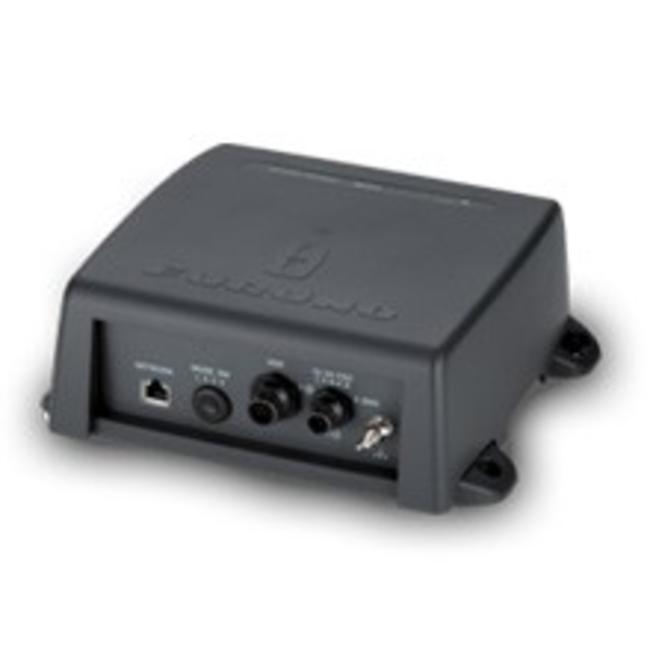

FURUNO DFF1-UHD NAVnet Black Box Echo sounder& CHIRP Fishfinder 1kW

The highly advanced FURUNO DFF1-UHD NAVnet echolood & CHIRP Fishfinder (like the BBDS1 and    DFF-3 is intended for connection to the versatile Furuno NAVnet TZtouch multifunction displays and TIMEZERO. These new digital network fishfinders/echosounders convert each NavNet screen into a powerful, digital fishfinder with dual frequency mode Ultra High Definition. The technology is ideal for the demanding professional fisherman or enthusiastic Sport Fisher because connection of broadband transducers is possible. The True Echo CHIRP™ technology offers in practice a sharper image with a particularly high distinctive power through a significant improvement of the signal. Even so big that the difference between baitfish and the coveted catch clarity remains visible. Also when the fish is swimming close to each other.

Network sounders delivers significant advancements in signal clarity and target definition by transmitting pulses across a wide range of frequencies allowing Furuno's superior digital signal processing (DSP) to display fish and structure targets with ubparalelled clarity,asccuracy and resoluition

DFF1-UHD NAVnet echolood & CHIRP Fishfinder delivery includes:

• DFF1-UHD Black Box CHIRP Fishfinder
• Transceiver 1 kW
• Power cable
• NAVnet connection cable
• Standard installation material

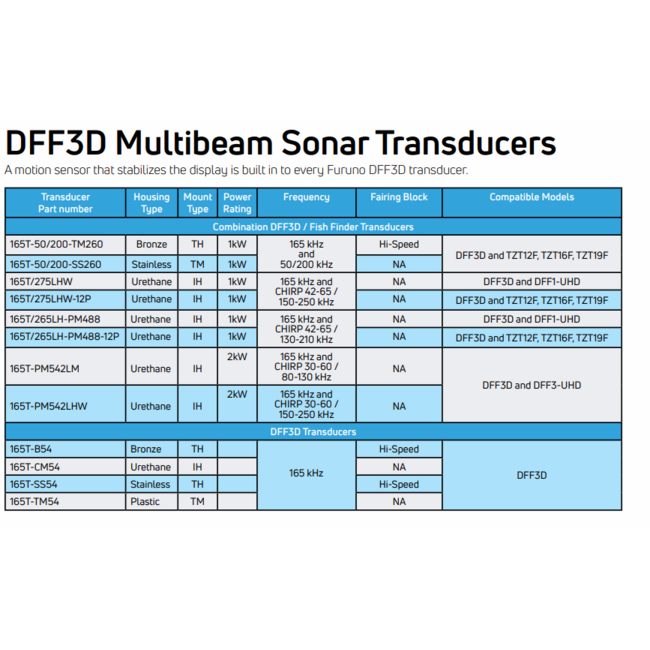

Transducer can be ordered separately, multiple options are possible. More information can be found under: transducers

Features:

• Excellent graphic representation of the type of soil such as silt, sand, gravel and rock.
• BATTERY-FISH ™ displays the actual fishing format for individual fish echoes as well as the depth at which the fish swim.
• 8 depth ranges up to 1200 m

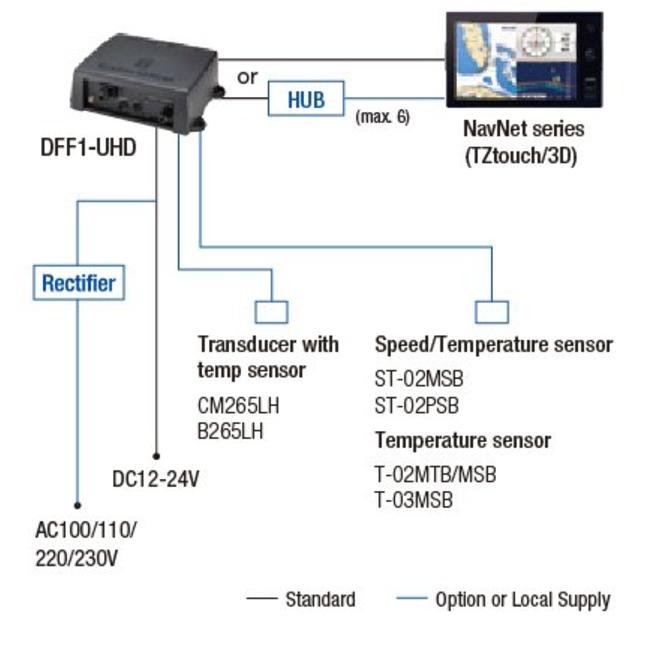

• DFF1 Black Box Echosounder works with NavNet 3D / TZtouch / TZtouch2 multifunction displays
• Specially designed for broadband transducer
• Output power 1kW
• Audio and visual alarms for water depth, fish echoes and water temperature
• Supply voltage: 12-24 volt DC
• Power consumption: 30 Watt
• Dimensions: 316 (H) x 380 (W) x 120 (D) mm
• Weight: 3.1 kg.




  Brochure.pdf DFF1-UHD NAVnet echolood & CHIRP Fishfinde
  Operators manual DFF1
